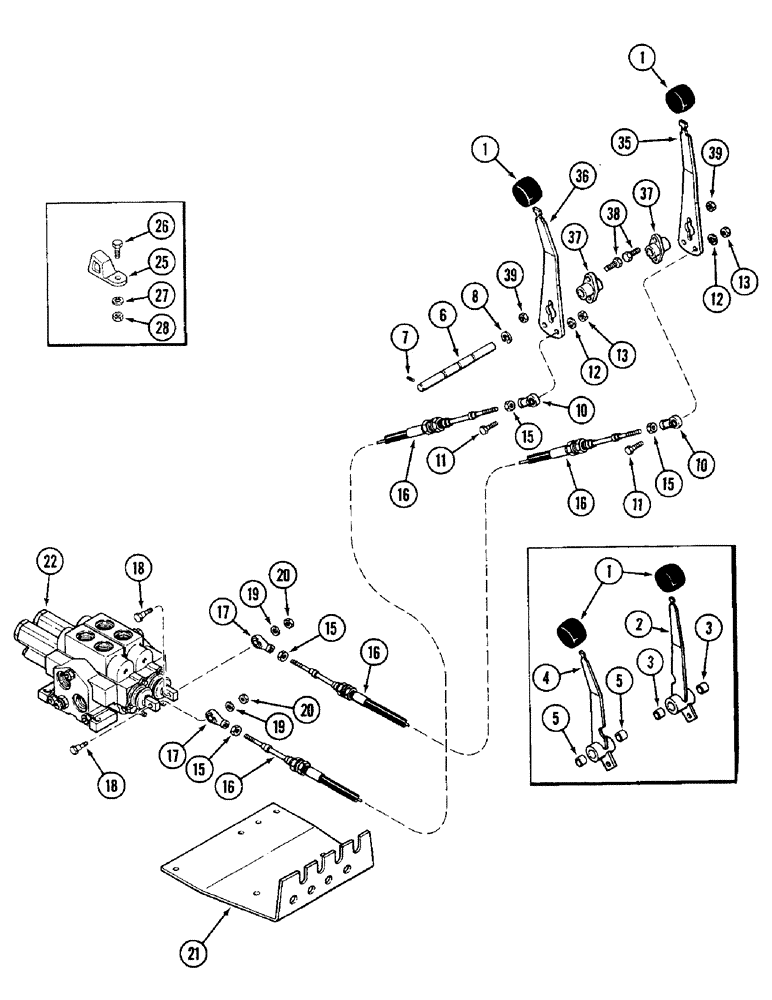

Запчасти Case IH 4690 (8-274) - REMOTE HYDRAULIC CONTROLS, TWO CIRCUIT SYSTEM (08) - HYDRAULICS

1

A137806

KNOB

Hand lever

2шт.

2

A161022

LEVER

ASSY - inner (Prior P.I.N. 8860450), Incl. Ref. 3

1шт.

3

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

Lever pivot

2шт.

4

A161032

LEVER

ASSY - outer (Prior P.I.N. 8860450), Incl. Ref. 5

1шт.

5

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

Lever pivot

2шт.

6

A161039

SHAFT

, Serial Range: Lever-console

1шт.

7

178-24

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

Headless socket

1шт.

8

A27785

CIRCLIP,#62, .480" Dia, E-Type

2шт.

10

A146456

BALL

JOINT - control, Serial Range: cable-lever

2шт.

11

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

13

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

15

425-154

JAM NUT,Jam, 1/4"-28, G5

6шт.

16

A152757

CABLE

Control

2шт.

17

A146456

BALL

JOINT - control cable to valve spool

2шт.

18

A148510

BOLT

Shoulder (1/4" NC)

2шт.

19

195-518

WASHER,1/4", SAE

(9/32" x 5/8" x 5/64") (7.1 x 15.9 x 2 mm)

6шт.

20

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

21

A152128

BRACKET

SPARE PART Anchor, control cable

1шт.

22

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Figure 8-292)

1шт.

25

A141542

LEVER

TAB , float position

2шт.

26

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

(Replaces A160353 spring washer)

2шт.

28

131-1180

LOCK NUT,1/4"-20, GA

(Replaces 131-71)

2шт.

35

A162361

LEVER

Inner (P.I.N. 8860450 and after)

1шт.

36

A162362

LEVER

Outer (P.I.N. 8860450 and after)

1шт.

37

A162299

BEARING,15.95mm ID

BEARING - control lever pivot

2шт.

38

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

39

131-1180

LOCK NUT,1/4"-20, GA

4шт.
