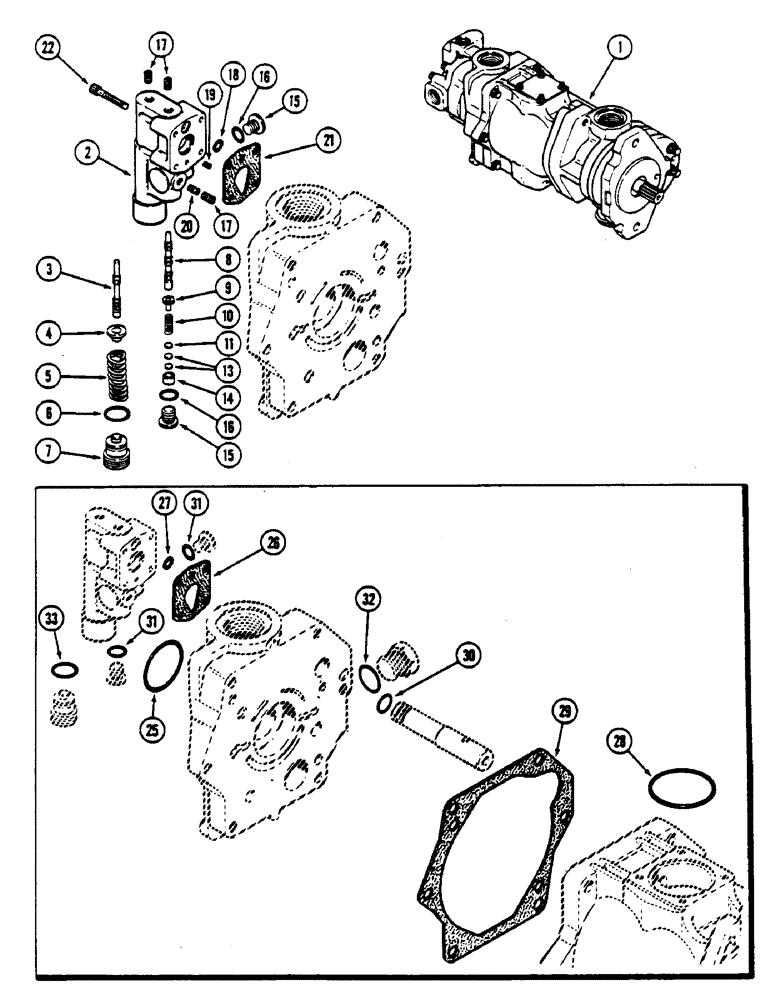

Запчасти Case IH 4690 (8-270) - TRIPLE HYDRAULIC PUMP ASSEMBLY, COMPENSATOR ASSEMBLY (08) - HYDRAULICS

1

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - triple hydraulic (Continued from Figure 8-268) (P.I.N. 8860322 and after) (Order A149963 and A47882 on Figure 8-272)

1шт.

1

A149963

PUMP

ASSEMBLY - triple hydraulic (Continued from Figure 8-268) (Prior to P.I.N. 8860322)

1шт.

129330A1R

REMAN-HYD PUMP

4690 Prior to P.I.N. 8860322 (1/79-12/83), Center Section/Piston Pump Only

1шт.

129330A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

A47637

HYDRAULIC PUMP

COMPENSATOR ASSEMBLY - pump

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

3

A47316

SPOOL

- pressure limiter

1шт.

4

A47317

PLUG

SEAT - spool, pressure limiter

1шт.

5

A47318

SPRING

- spool, pressure limiter

1шт.

6

A65918

O-RING,0.551" ID x 0.691" OD

- 9/16 ID x 1/16" width (14.22 ID x 1.59 MM width)

1шт.

Part of seal and gasket kit, P/N A47567

1шт.

7

A47230

BOLT

PLUG - adjusting, pressure limiter

1шт.

8

A47321

SPOOL

- load sensing

1шт.

9

A47322

SEAT

- spool, load sensing

1шт.

10

A47323

SPRING

- spool, load sensing

1шт.

11

A47324

DISC

- load sensing

1шт.

A47325

KIT

- shim, load sensing spool, Includes: Ref. 13

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - 0.005" (0.127 MM)

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - 0.010" (0.254 MM)

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - 0.020" (0.508 MM)

1шт.

14

A47326

CUP

- load sensing shim

1шт.

15

278548

PLUG,Hex, 7/16"-20 ORB

Assy, Incl Ref 16 Hex Soc, 7/16"-20 ORB

2шт.

16

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 23/64 ID x 5/64" width (8.92 ID x 1.83 MM width)

1шт.

Part of seal and gasket kit, P/N A47567

1шт.

17

221-850

PLUG,Hex Soc, 1/16"-27

- 1/16" PT socket head

3шт.

18

A138385

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

- 5/16 ID x 1/16" width (7.94 ID x 1.59 MM width)

1шт.

Part of seal and gasket kit, P/N A47567

1шт.

19

A47645

PLUG

- valve body

1шт.

20

A47327

FITTING

ORIFICE - valve body

1шт.

21

A47328

GASKET

- valve body

1шт.

Part of seal and gasket kit, P/N A47567

1шт.

22

165-26

HEX SOC SCREW,#10 - 24 x 1 1/4"

SCREW - cap, #10-24 x 1-1/4" socket head

4шт.

A47567

KIT

- seal and gasket, Includes: Refs. 6, 16, 18, 21, 25 - 33 on Figure 8-270, Ref. 15 on Figure 8-266, and Refs. 44, 50, and 62 on Figure 8-268

1шт.

25

F98069

O-RING

- gear, Serial Range: pump-piston

1шт.

26

A47328

GASKET

- compensator to piston pump

1шт.

27

A138385

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

- 5/16 ID x 1/16" width (7.94 ID x 1.59 MM width)

1шт.

28

S80753

WASHER

O-RING - 2-1/4 ID x 3/16" width (57.15 ID x 4.76 MM width)

2шт.

29

A47280

GASKET,0.53mm Thk

- piston pump body

1шт.

30

H756783

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

- 1/2 ID x 3/32" width (12.07 ID x 2.38 MM width)

1шт.

31

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 ID x 5/64" width (8.92 ID x 1.83 MM width)

2шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 ID x 3/32" width (19.18 ID x 2.46 MM width)

1шт.

33

A65918

O-RING,0.551" ID x 0.691" OD

- 9/16 ID x 1/16" width (14.29 ID x 1.59 MM width)

1шт.
