Запчасти Case IH 4690 (8-268) - TRIPLE HYDRAULIC PUMP ASSEMBLY, PISTON PUMP SECTION (08) - HYDRAULICS

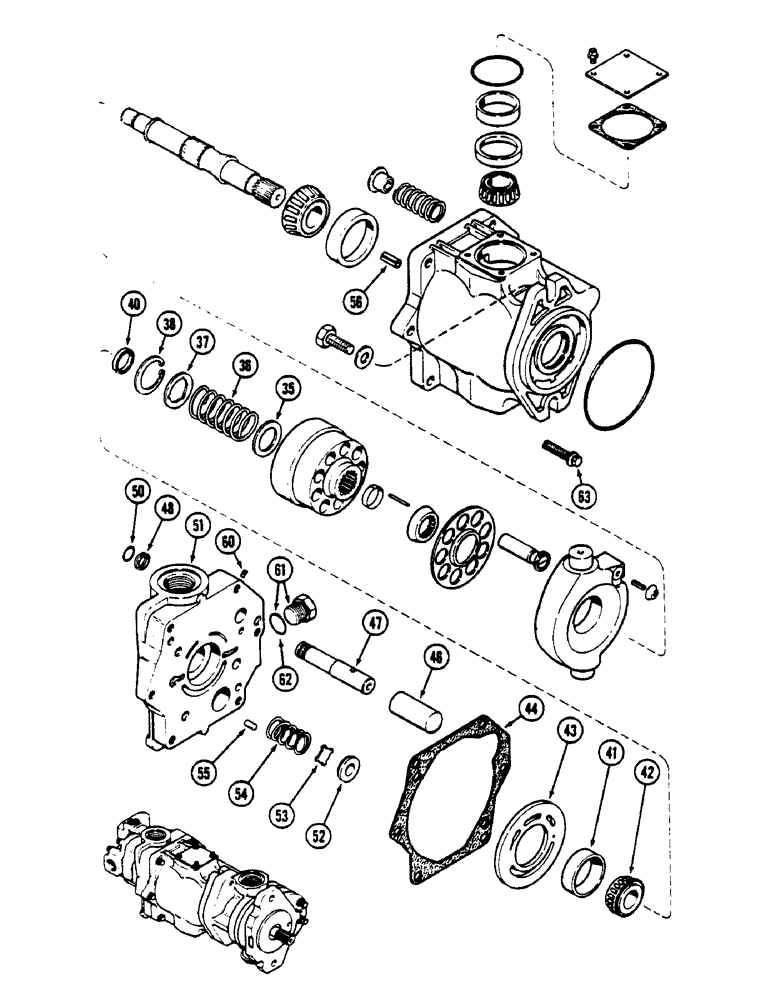

Схема запчастей Case IH 4690 - (8-268) - TRIPLE HYDRAULIC PUMP ASSEMBLY, PISTON PUMP SECTION (08) - HYDRAULICS
51
52
38
54
55
60
61
43
35
63
44
47
56
46
53
36
37
40
41
48
42
50

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - triple hydraulic (Continued from Figure 8-266) (P.I.N. 8860322 and after) (Order A149963 and A47882 on Figure 8-272), Includes: Ref. 35 - 63, 1 - 33 on Figure 8-266, and kit

1шт.

A149963

PUMP

ASSEMBLY - triple hydraulic (Continued from Figure 8-266) (Prior to P.I.N. 8860322), Includes: Ref. 35 - 63, 1 - 33 on Figure 8-266, and kit

1шт.

129330A1R

REMAN-HYD PUMP

4690 Prior to P.I.N. 8860322 (1/79-12/83), Center Section/Piston Pump Only

1шт.

129330A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

35

A47299

WASHER

- spring front

1шт.

36

A47298

SPRING

- cylinder block

1шт.

37

A47300

SPRING WASHER

WASHER - spring rear

1шт.

38

NLS

NO LONGER SERVICED

Ring, Snap, , cylinder block 1.625", Int, #162

1шт.

A47303

KIT

- spacer, rear bearing, Includes: Ref. 40

1шт.

40

NSS

NOT SOLD SEPARAT

SPACER - 0.139" (3.53 MM)

1шт.

40

NSS

NOT SOLD SEPARAT

SPACER - 0.142" (3.61 MM)

1шт.

40

NSS

NOT SOLD SEPARAT

SPACER - 0.145" (3.68 MM)

1шт.

40

NSS

NOT SOLD SEPARAT

SPACER - 0.148" (3.76 MM)

1шт.

40

NSS

NOT SOLD SEPARAT

SPACER - 0.151" (3.84 MM)

1шт.

40

NSS

NOT SOLD SEPARAT

SPACER - 0.154" (3.91 MM)

1шт.

40

NSS

NOT SOLD SEPARAT

SPACER - 0.157" (3.99 MM)

1шт.

40

NSS

NOT SOLD SEPARAT

SPACER - 0.160" (4.06 MM)

1шт.

40

NSS

NOT SOLD SEPARAT

SPACER - 0.163" (4.14 MM)

1шт.

40

NSS

NOT SOLD SEPARAT

SPACER - 0.166" (4.22 MM)

1шт.

40

NSS

NOT SOLD SEPARAT

SPACER - 0.169" (4.29 MM)

1шт.

41

FB14849

BEARING CUP

- rear bearing, 1-31/32" (50.01 MM) OD

1шт.

42

FB14850

ROLLER BEARING

CONE - rear bearing, 27/32" (21.43 MM) ID

1шт.

43

A47635

PLATE

- wafer

1шт.

44

A47280

GASKET,0.53mm Thk

- body

1шт.

Part of seal and gasket kit, P/N A47567

1шт.

A47305

KIT

- piston rod, Includes: Ref. 46 - 48

1шт.

46

NSS

NOT SOLD SEPARAT

PISTON - rod

1шт.

47

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

48

A47340

RING

- snap

1шт.

50

H756783

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

- compensator, 1/2 ID x 3/32" width (12.70 ID x 2.38 MM width)

1шт.

Part of seal and gasket kit, P/N A47567

1шт.

51

A47636

BLOCK

- valve

1шт.

52

A47306

PLUG

SEAT - check valve

1шт.

53

A47307

VALVE

- check

1шт.

54

A47308

SPRING

- check valve

1шт.

55

A47309

PIN

- 1/4" x 1/2" (6.35 x 12.7 MM) (Wafer plate)

1шт.

56

A47301

PIN

-, Serial Range: block-housing

2шт.

60

221-1849

PLUG

- 1/8" PT socket head

1шт.

61

86512512

PLUG,7/8" - 14 ORB

Incl. Ref. 62 Hex Hd, 7/8"-14 ORB

1шт.

62

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 ID x 3/32" width (19.18 ID x 2.46 MM width)

1шт.

Part of seal and gasket kit, P/N A47567

1шт.

63

166-47

12 PT SCREW,Flg, 3/8" - 16 x 1 1/2", Gr 8

SCREW - cap, 3/8" x 1-1/2" NC 12 point head

6шт.

A47567

KIT

- seal and gasket, Includes: ref. nos. 44, 50, 62, See Figure 8-270

1шт.

Выбрано товаров: 43
