Запчасти Case IH 4690 (8-260) - TRANSMISSION CONTROL VALVE ASSEMBLY (08) - HYDRAULICS

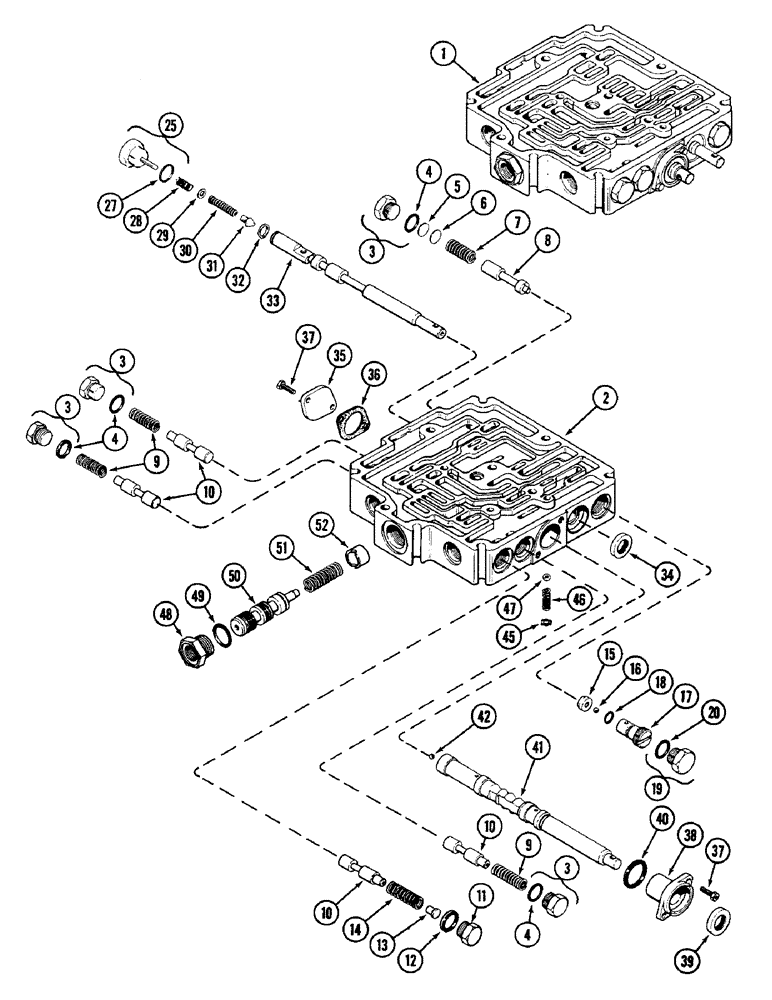

Схема запчастей Case IH 4690 - (8-260) - TRANSMISSION CONTROL VALVE ASSEMBLY (08) - HYDRAULICS
11
30
6
41
33
4
34
3
47
3
5
14
15
45
10
51
31
37
35
7
3
9
25
32
40
3
17
16
49
28
18
36
20
4
42
12
52
1
37
9
4
38
10
48
19
27
10
29
50
39
13
46
2
8

Артикул

Название

Примечание

Количество

1

A148160

VALVE

ASSEMBLY - transmission control, Includes: Ref. 2 - 52

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve (Order A148160)

1шт.

3

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Assy, Pilot spool and pressure regulator (Replaces A62564), Incl Ref 4 Hex Soc, 3/4"-16 ORB

4шт.

5

A37554

SHIM,.0269" Thk

Pressure regulator (0.6858 mm) .0269" Thk

1шт.

6

A37555

SHIM,.0120" Thk

Pressure regulator (0.3048 mm) .0120" Thk

1шт.

7

A58436

SPRING

- regulator, 1-3/8" (34.92 MM) free length

1шт.

8

A146644

SPOOL

PLUNGER - pressure regulator

1шт.

9

A58271

SPRING

- return, pilot spool, 1-49/64" (44.85 MM) free length

3шт.

10

A146590

SPOOL

- pilot

4шт.

11

A62641

PLUG

- pilot spool bore (Bored for stop)

1шт.

13

A62640

STOP

- pilot spool

1шт.

14

A66692

SPRING

- return, pilot spool, 1-23/32" (43.66 MM) free length

1шт.

15

A58441

SEAT

- shuttle valve ball

1шт.

16

211-7

BALL,1/4" Dia

- shuttle valve, (6.35 mm) chrome steel 1/4" Dia

1шт.

17

A154804

SLEEVE

- shuttle valve

1шт.

18

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- 3/32 ID x 11/16" width (2.38 ID x 17.46 MM width)

1шт.

Part of seal kit, P/N A42885

1шт.

19

86512512

PLUG,7/8" - 14 ORB

Incl. Ref. 20 Hex Hd, 7/8"-14 ORB

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 ID x 3/32" width (19.18 ID x 2.46 MM width)

1шт.

25

A61985

PLUG

ASSEMBLY - modulator

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 ID x 3/32" width (19.18 ID x 2.46 MM width)

1шт.

28

A61988

SPRING

- secondary, 1-43/64" (42.47 MM) free length

1шт.

29

A61989

WASHER,4.95mm ID x 9.27mm OD x 1.02mm Thk

- spring guide

1шт.

A60155

SPRING

KIT - pivot and spring, modulator, Includes: Ref. 30 and 31

1шт.

30

NSS

NOT SOLD SEPARAT

SPRING - primary, 1-39/64" (40.88 MM) free length

1шт.

31

NSS

NOT SOLD SEPARAT

POINT - modulator (Order A60155)

1шт.

32

G46176

SNAP RING,#56, Ext

Ring, Snap, , clutch control spool #56, Ext

1шт.

33

A62636

SPOOL

- clutch control

1шт.

34

A37558

SEAL,14.27mm ID x 28.7mm OD x 6.73mm Thk

- clutch control spool

1шт.

Part of seal kit, P/N A42885

1шт.

35

A58429

COVER

- selector spool bore

1шт.

36

A66110

GASKET

- cover

1шт.

Part of seal kit, P/N A42885

1шт.

37

61-412

HEX SOC SCREW,1/4"-20 x 3/4"

- cap, 1/4" x 3/4" NC hex socket head

4шт.

38

A62839

SLEEVE

- selector spool

1шт.

39

A50421

OIL SEAL,19.05mm ID x 31.95mm OD x 6.73mm Thk

- oil, selector spool

1шт.

Part of seal kit, P/N A42885

1шт.

40

A59066

O-RING,1.239" ID x 1.379" OD

- cover, 1-3/16 ID x 1/16" width (30.16 ID x 1.59 MM width)

1шт.

Part of seal kit, P/N A42885

1шт.

41

A60550

SPOOL

ASSEMBLY - selector, Includes: Ref. 42

1шт.

42

NSS

NOT SOLD SEPARAT

BALL - 9/32" (7.1 MM) diameter chrome steel

1шт.

45

A58439

RETAINER

- retard check spring

2шт.

46

A58438

SPRING

- retard check, 15/16" (23.81 MM) free length

2шт.

47

211-8

BALL,9/32" Dia

(7 mm), chrome steel 9/32" Dia

2шт.

48

A63293

BUSHING

- reducer

1шт.

49

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 ID x 7/64" width (23.47 ID x 2.95 MM width)

1шт.

Part of seal kit, P/N A42885

1шт.

50

A146637

SPOOL

- reverse lockout

1шт.

51

A58432

SPRING

- reverse lockout

1шт.

52

A153140

SLEEVE

- stop, spool (Replaces A61033)

1шт.

A42885

SEAL KIT

- seal, Includes: Refs. 4, 12, 18, 34, 36, 39, 40 and 49

1шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32" width (16.36 ID x 2.21 MM width)

4шт.

Part of seal kit, P/N A42885

1шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32" width (16.36 ID x 2.21 MM width)

1шт.

Part of seal kit, P/N A42885

1шт.

Выбрано товаров: 55
