Запчасти Case IH 4690 (8-258) - TRANSMISSION CONTROL VALVE SYSTEM (08) - HYDRAULICS

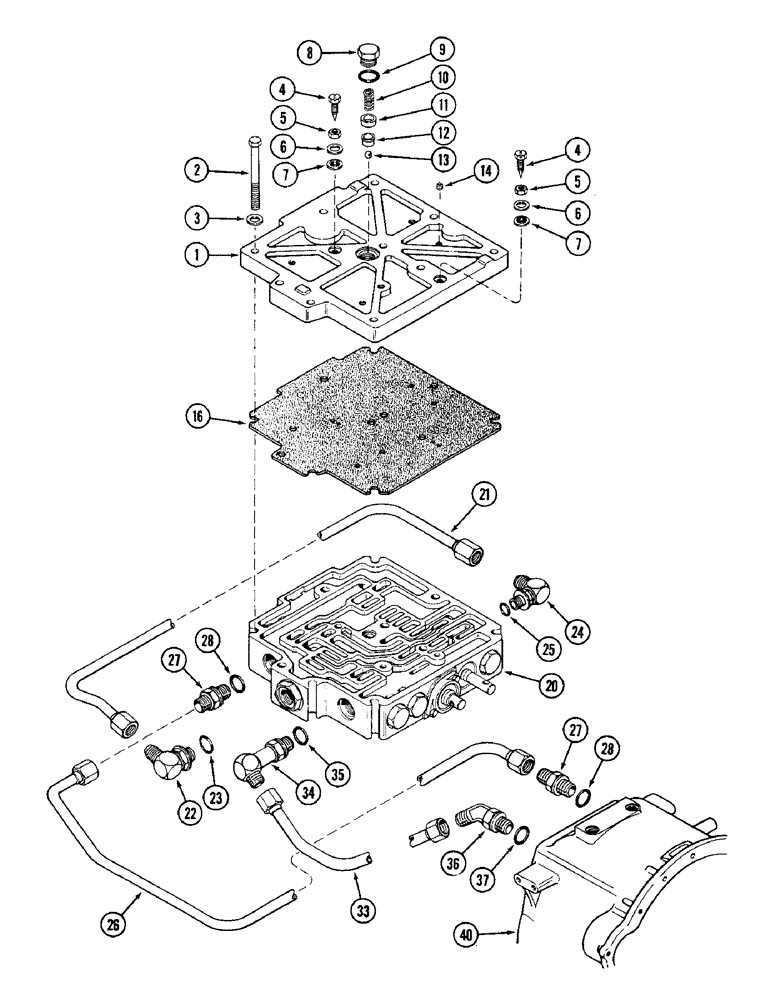

Схема запчастей Case IH 4690 - (8-258) - TRANSMISSION CONTROL VALVE SYSTEM (08) - HYDRAULICS
27
12
23
36
7
6
5
4
40
21
27
11
28
1
33
6
25
26
37
4
14
5
22
8
13
35
24
3
16
28
34
10
9
7
20
2

Артикул

Название

Примечание

Количество

1

A157323

COVER

- valve, transmission control (Replaces A151421 and A155488)

1шт.

2

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

10шт.

3

A50820

WASHER

- cover bolt

10шт.

4

A136916

NEEDLE

- retard orifice

2шт.

5

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

6

122-13

GROMMET

WASHER - 1/4" steel

2шт.

7

A59074

SEAL

- thread

2шт.

8

A62808

GASKET

PLUG - detent

1шт.

10

A61696

SPRING

- detent ball

1шт.

11

A62107

SPACER

- detent

1шт.

12

A59062

SLEEVE

- detent

1шт.

13

211-12

BALL,7/16 Dia

- chrome steel, 7/16" (11.11 MM) diameter

1шт.

14

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" PT sqaure head

3шт.

16

A157324

GASKET

- cover to valve (Replaces A151615)

1шт.

20

REF

INSTRUCTION

VALVE ASSEMBLY - transmission control (See Figure 8-260)

1шт.

21

A63294

TUBE

- pilot, reverse lock-out

1шт.

22

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degrees, 1/2" tube x 3/4" - 16, Includes: Ref. 23

1шт.

24

A63295

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18 O-Ring

ASSEMBLY - 90 degrees, 1/2" tube x 9/16" - 18, Includes: Ref. 25

1шт.

25

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.89 ID x 1.98 mm width)

1шт.

26

A146547

TUBE

- valve to clutch housing

1шт.

27

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, 1/2" tube x 3/4" - 16, Incl. Ref 28

2шт.

33

A156847

TUBE

- valve to clutch housing (Replaces A75996)

1шт.

34

A62102

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16 O-Ring, Long

ASSEMBLY - tube to valve, Includes: Ref. 35

1шт.

36

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 45 degrees, 1/2" tube x 3/4" - 16, Incl. Ref 37

1шт.

40

REF

INSTRUCTION

HOUSING - clutch (See page 6-152)

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32" width (16.36 ID x 2.21 MM width)

1шт.

23

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32" width (16.36 ID x 2.21 MM width)

1шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32" width (16.36 ID x 2.21 MM width)

1шт.

35

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32" width (16.36 ID x 2.21 MM width)

1шт.

37

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32" width (16.36 ID x 2.21 MM width)

1шт.
