Запчасти Case IH 4690 (8-254) - HYDRAULIC OIL COOLER (08) - HYDRAULICS

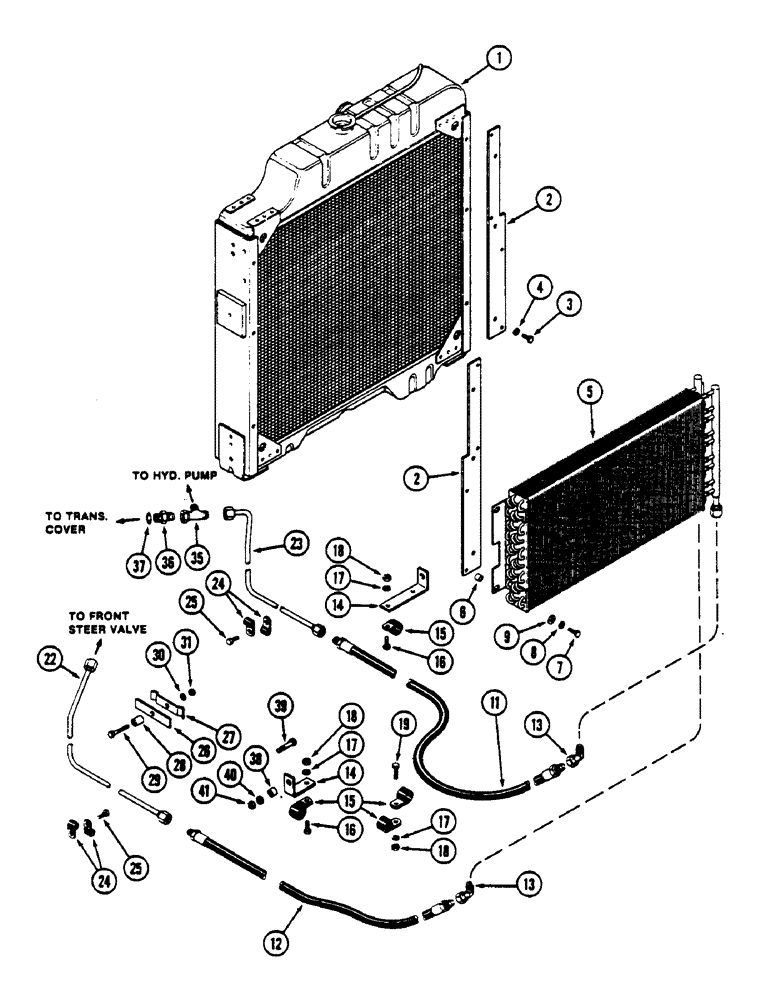

Схема запчастей Case IH 4690 - (8-254) - HYDRAULIC OIL COOLER (08) - HYDRAULICS
17
24
17
4
14
25
22
18
16
12
11
26
38
2
28
13
37
27
8
35
5
15
19
16
40
6
18
7
15
13
31
14
30
3
36
17
39
29
23
9
2
18
41
1
25
24

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

RADIATOR - engine coolant (See Figure 2-004)

1шт.

2

A149681

SUPPORT

-, Serial Range: cooler-radiator

2шт.

3

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

6шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

5

A151160

COOLER

- hydraulic oil

1шт.

6

A37418

SPACER

- cooler mounting

4шт.

7

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

195-525

WASHER,3/8", SAE

- 13/32" x 13/16" x 1/16" (10.3 x 20.6 x 1.6 MM)

4шт.

11

A162280

HYDRAULIC HOSE,0.50" ID x 69.00", SAE 100R2 per SAE J517

- Return, Oil cooler (Replaces A150843) 0.50" ID x 69.00", SAE 100R2 per SAE J517

1шт.

12

A162281

HOSE

- inlet, oil cooler (Replaces A150842)

1шт.

13

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

Cooler, 1/2" tube 45º, 3/4"-16, 37º x 3/4"-16, 37º Fem Sw

2шт.

14

A138761

SUPPORT

- hose clamp

2шт.

15

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- hose

4шт.

16

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

19

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

22

A138365

TUBE

- inlet hose, oil cooler

1шт.

23

A77040

TUBE

- return hose, oil cooler

1шт.

24

49838

CLAMP

- tube

5шт.

25

187-1304

SELF-TAP SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

SCREW - self-tapping, 3/8" x 3/4" hex head

4шт.

26

A140431

SUPPORT

STRAP - clamp, 2 tube

1шт.

27

A140432

CLAMP

- 2 tube

1шт.

28

A140442

BUSHING

SPACER - clamp, 1" (25.4 MM) long (Replaces A76093)

1шт.

29

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8" x 2-1/2" NC hex (Grade 5)

1шт.

30

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

1шт.

31

129-106

NUT,9/16"-12, G5

- 3/8" NC hex

1шт.

35

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- swivel, 1/2" tube x 1/2" tube x 3/4" - 16

1шт.

36

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - 1/2" tube x 3/4" - 16, Incl. Ref 37

1шт.

38

A76093

BUSHING

SPACER - inlet tube clamp, 1/2" (12.7 MM) long

1шт.

39

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

40

92-5

LOCK WASHER,5/16"

1шт.

41

9635082

NUT,5/16" - 18, Gr 5

1шт.

37

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32" width (16.36 ID x 2.21 MM width)

1шт.
