Запчасти Case IH 4690 (8-252) - HYDRAULIC OIL FILTER ASSEMBLY (08) - HYDRAULICS

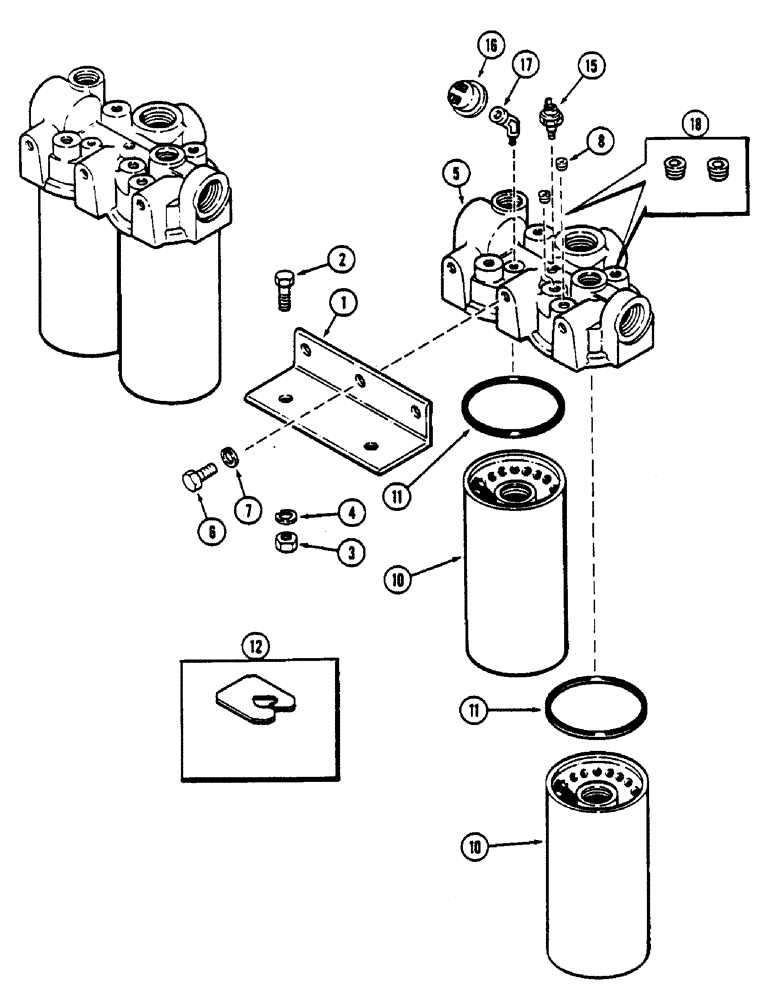

Схема запчастей Case IH 4690 - (8-252) - HYDRAULIC OIL FILTER ASSEMBLY (08) - HYDRAULICS
12
8
15
17
7
11
5
18
16
11
10
1
6
3
10
2
4

Артикул

Название

Примечание

Количество

1

A137952

BRACKET

- filter mounting

1шт.

2

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2" x 1-3/4" NC hex (Grade 5)

2шт.

3

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

5

A143469

HOUSING

- filter

1шт.

6

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

221-841

PLUG

- 1/4" PT hex socket

2шт.

A161846

FILTER

KIT - replacement, hydraulic filter element, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

ELEMENT - filter

2шт.

11

A139281

GASKET

- element

2шт.

12

NSS

NOT SOLD SEPARAT

CLIP - gasket retainer

1шт.

15

A66737

SWITCH, PRESSURE

SWITCH - filter pressure sender

1шт.

16

A161461

SWITCH

- transmission differential pressure

1шт.

17

221-1401

ELBOW,45º, 1/8"-27, NPT

- street, 1/8" PT 90 degree

1шт.

18

221-841

PLUG

- 1/4" PT hex socket (Without PTO)

2шт.

Выбрано товаров: 16
