Запчасти Case IH 4690 (8-250) - HYDRAULIC PRESSURE REGULATOR VALVE (08) - HYDRAULICS

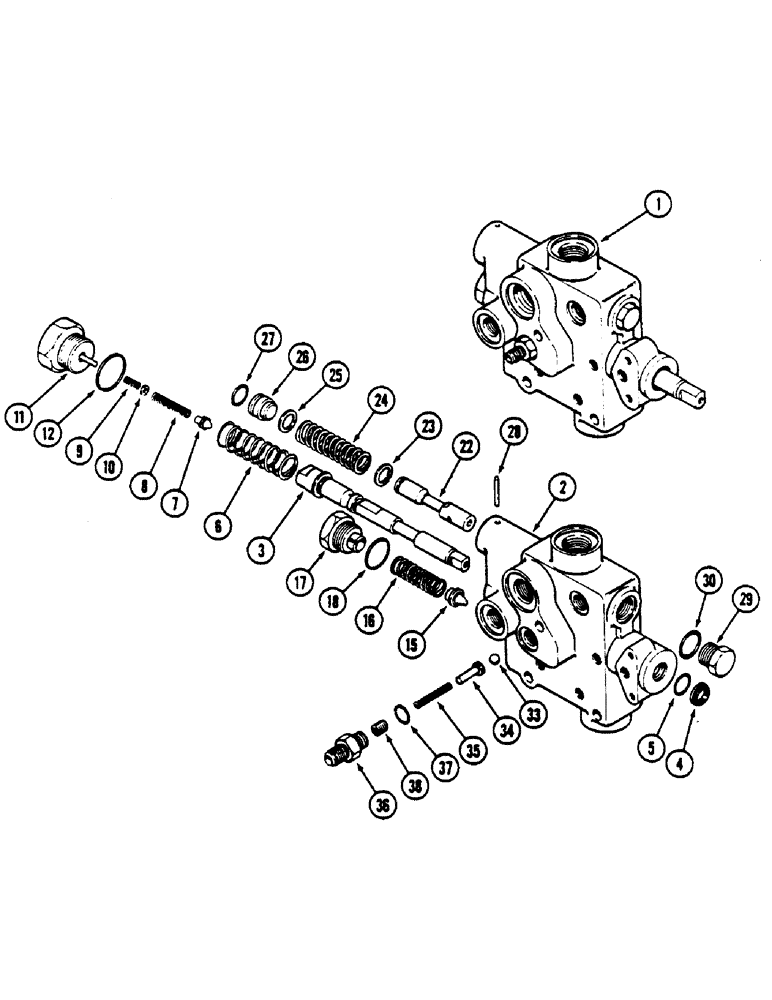

Схема запчастей Case IH 4690 - (8-250) - HYDRAULIC PRESSURE REGULATOR VALVE (08) - HYDRAULICS
38
24
11
18
35
5
9
10
6
2
16
26
37
8
36
15
12
33
25
27
17
30
23
7
1
22
29
3
34
20
4

Артикул

Название

Примечание

Количество

1

A139911

VALVE

ASSEMBLY - regulator, hydraulic pressure

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - valve (Includes relief valve seat)

1шт.

3

A139912

SPOOL

- control, PTO

1шт.

4

A63660

RING

- wiper, control spool

1шт.

5

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- spool, 5/8 ID x 3/32" width (15.87 ID x 2.38 MM width)

1шт.

6

A139739

SPRING

- return, control spool

1шт.

7

A61991

POINT

- modulator, control spool

1шт.

8

A141647

SPRING

- modulator, 1-55/64" (47.23 MM) free length

1шт.

9

A139738

SPRING

- modulator, 5/8" (15.87 MM) free length

1шт.

10

A61989

WASHER,4.95mm ID x 9.27mm OD x 1.02mm Thk

- spring guide

1шт.

11

A139689

PLUG

ASSEMBLY - modulator (1-3/16" - 12 hex), Includes: Ref. 12

1шт.

12

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 ID x 7/64" width (26.59 ID x 2.95 MM width)

1шт.

15

A60687

VALVE POPPET

POPPET - relief valve

1шт.

16

A60286

SPRING

- relief valve, 1-3/16" (30.16 MM) free length

1шт.

17

A139173

PLUG

ASSEMBLY - relief valve (7/8" - 14 hex), Includes: Ref. 18

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 ID x 3/32" width (19.8 ID x 2.46 MM width)

1шт.

22

A139708

SPOOL

- pressure regulator

1шт.

23

A60273

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

24

A60274

SPRING

- regulator spool, 2-7/8" (47.62 MM) free length

1шт.

25

A149281

SHIM

- regulator spring, 1/64" (0.40 MM)

1шт.

26

A149282

PLUG

- regulator spring

1шт.

27

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- 11/16 ID x 3/32" width (17.46 ID x 2.38 MM width)

1шт.

28

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN - roll, 3/16" x 1-1/4"

1шт.

29

86512512

PLUG,7/8" - 14 ORB

Incl. Ref. 30 Hex Hd, 7/8"-14 ORB

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 ID x 3/32" width (19.18 ID x 2.46 MM width)

1шт.

33

211-28

BALL,13/32" Dia

- detent, 13/32" (10.31 MM) diameter

1шт.

34

A161859

SPRING

PIN - detent spring

1шт.

35

A141647

SPRING

- detent, 1-55/64" (47.23 MM) free length

1шт.

36

A160659

HYD CONNECTOR

CONNECTOR ASSEBMLY - clutch tube (9/16" - 18), Includes: Ref. 37 and 38

1шт.

37

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.89 ID x 1.98 mm width)

1шт.

38

A160657

SET SCREW,3/8" - 16

- set

1шт.

Выбрано товаров: 31
