Запчасти Case IH 4690 (8-242) - HYDRAULIC PUMP DRIVE (08) - HYDRAULICS

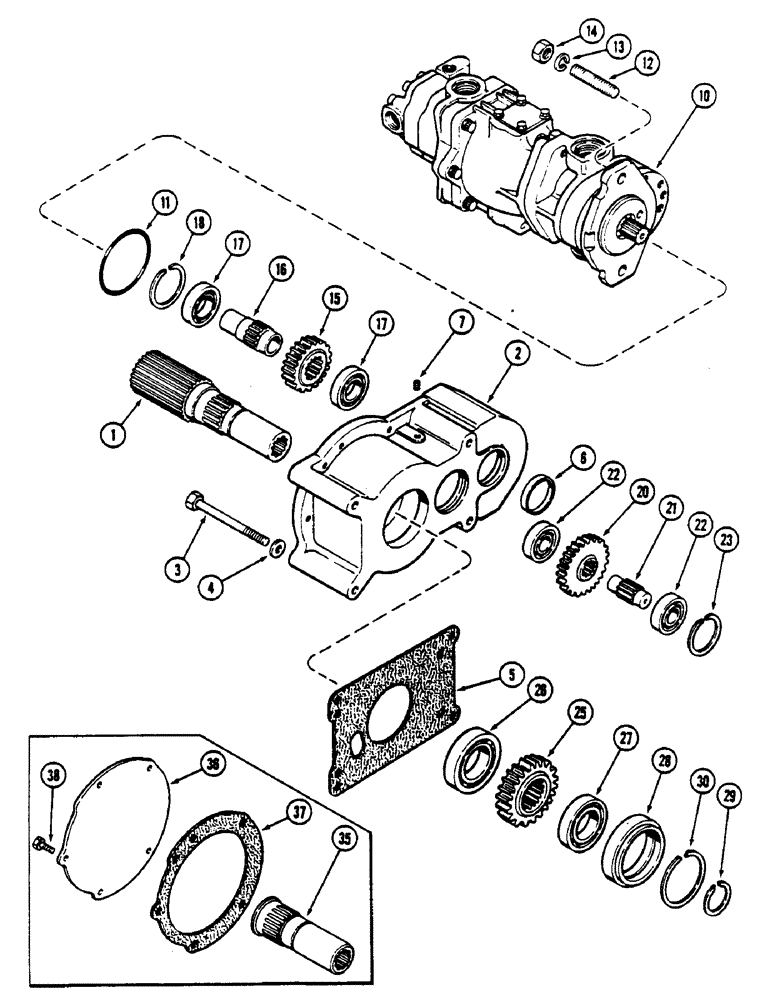

Схема запчастей Case IH 4690 - (8-242) - HYDRAULIC PUMP DRIVE (08) - HYDRAULICS
10
35
11
29
22
15
17
18
23
14
28
12
4
27
3
38
37
16
7
20
21
13
25
5
36
30
22
17
2
6
26
1

Артикул

Название

Примечание

Количество

1

A156124

SHAFT

Hydraulic pump drive and PTO input (Replaces A153924)

1шт.

2

A151698

HOUSING

SPARE PART Hydraulic pump drive

1шт.

3

113-437

BOLT,Hex, 1/2" - 13 x 6", Gr 5

4шт.

4

A30061

WASHER

17/32" x 15/16" x 1/16" (13.49 x 23.81 x 1.59 mm)

4шт.

5

A153700

GASKET

Housing to transmission case

1шт.

6

A24361

PLUG

Cap, 1-3/8" (34.92 mm) diameter

1шт.

7

221-849

PLUG,Hex Soc, 1/8"-27

1шт.

10

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic (See Figure 8-264)

1шт.

11

49389

O-RING,0.21" Thk x 4.1" ID, -346, Cl 5, 75 Duro

4-1/8 ID x 3/16" width (104.77 ID x 4.76 mm width)

1шт.

12

A58195

STUD

Pump to housing (5/8" NC x 3-1/2")

2шт.

13

95-10

WASHER,5/8"

11/16" x 1-3/4" x 9/64" (17.5 x 34.5 x 3.6 mm)

2шт.

14

129-107

NUT,5/8"-11, G5

2шт.

15

A151310

GEAR

Drive, hydraulic pump coupling

1шт.

16

A144124

COUPLING, BREAK AWAY

Pump drive shaft

1шт.

17

A150525

BALL BEARING,1.5748" ID x 2.6772" OD x 0.5906"

Pump drive coupling

2шт.

18

A27414

RING

Snap, bearing

1шт.

20

A151311

GEAR

Idler, pump drive

1шт.

21

A144122

SHAFT

Idler gear

1шт.

22

A150643

BALL BEARING,24.99mm ID x 62mm OD x 17mm W

Idler shaft

2шт.

23

T17410

SNAP RING,M62 x 1.58mm Thk, Int

RING - snap, bearing

1шт.

25

A151309

GEAR

Drive, input shaft

1шт.

26

A150644

BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"

Rear, input shaft

1шт.

27

A150523

BALL BEARING,1.9685" ID x 3.5433" OD x 0.7874"

Front, input shaft

1шт.

28

A144120

RING

Pilot, front bearing

1шт.

29

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap, Serial Range: bearing-shaft

1шт.

30

G46143

RING

Snap, bearing to pilot ring

1шт.

35

A144136

COUPLING, BREAK AWAY

Drive (Without PTO)

1шт.

36

A144137

COVER

Rear, pump drive housing (Without PTO)

1шт.

37

A153699

GASKET

Cover

1шт.

38

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

Выбрано товаров: 30
