Запчасти Case IH 4690 (8-240) - PTO HYDRAULICS AND LUBE TUBES, P.I.N. 8860450 AND AFTER (08) - HYDRAULICS

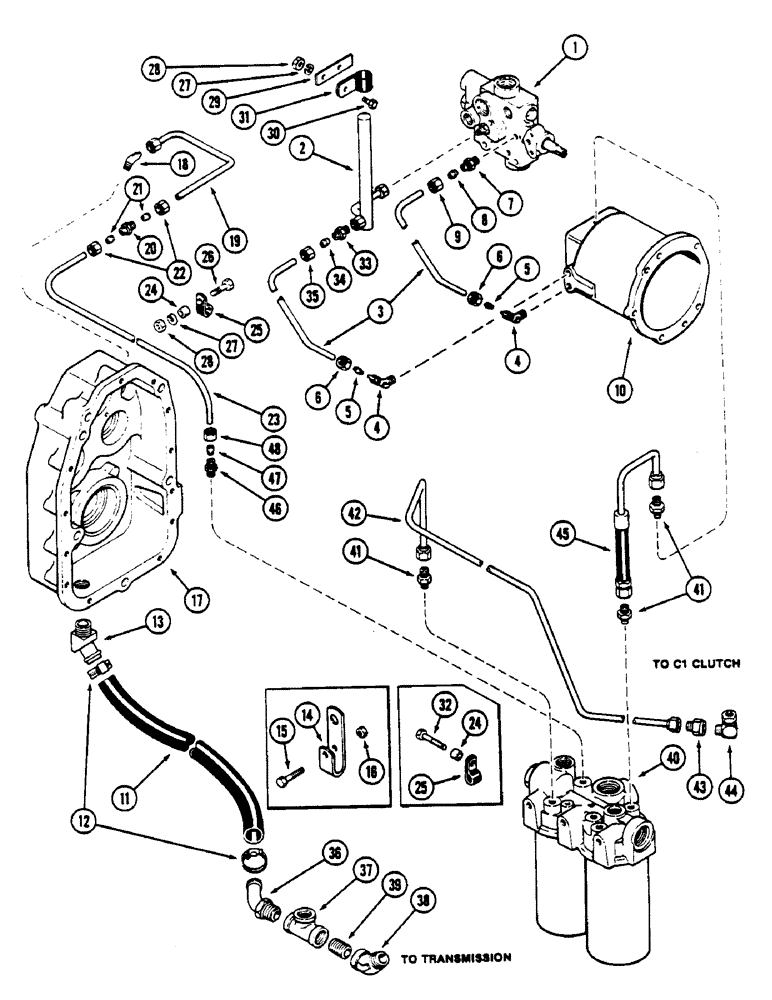

Схема запчастей Case IH 4690 - (8-240) - PTO HYDRAULICS AND LUBE TUBES, P.I.N. 8860450 AND AFTER (08) - HYDRAULICS
25
46
13
16
21
7
30
5
41
43
40
14
36
27
41
11
20
25
8
2
3
45
33
29
44
9
47
48
4
15
35
6
19
37
1
5
4
24
38
23
26
17
24
27
22
34
18
28
10
32
6
12
28
39
42
31

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSY - regulator, hydraulic (See Figure 8-250)

1шт.

2

A162181

TUBE

ASSY - damping, PTO clutch

1шт.

3

A75811

TUBE

HOSE - regulator valve to PTO clutch and brake housing (Nylon, 34" (863.6 mm long)

2шт.

4

222-2726

ELBOW,45 Degree, 17/32"-24 x 1/4" NPT, Comp

ASSY, Incl. Ref. 5 and 6

2шт.

5

222-2611

SLEEVE

Flanged, 3/8" tube

1шт.

6

222-2601

NUT

3/8" tube with 17/32"-24 thread

1шт.

7

222-5100

CONNECTOR, ELEC,17/32"-24 x 1/8" NPT

CONNECTOR ASSY - straight, 3/8" tube with 9/16"-24 thread x 1/8" PT, Incl. Ref. 8 and 9

1шт.

8

222-5186

SLEEVE,3/8" Tube

Tapered

1шт.

9

222-5181

NUT,9/16"-24

Hex

1шт.

10

REF

INSTRUCTION

HOUSING - PTO clutch (See Figure 6-222)

1шт.

11

A160026

HOSE,1.00" ID x 77.00", SAE 30R2 TYPE 1 PER SAE J30

Drain, PTO

1шт.

12

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1-3/16" (30.2 mm) to 1-3/4" (44.5 mm)

2шт.

13

217-146

ELBOW,45 Degree Elbow, 1" Hose Barb x 1" Male NPTF

3шт.

14

A140779

SUPPORT

PTO drain hose

1шт.

15

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

16

231-1445

NUT,5/16"-18, GB

(Esna)

1шт.

17

REF

INSTRUCTION

HOUSING - drop box, PTO (See Figure 6-228)

1шт.

18

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

1шт.

19

A162247

TUBE

ASSY - PTO tube

1шт.

20

222-2651

HYD CONNECTOR,17/32"-24

ASSY, Incl. Ref. 21 and 22

1шт.

21

222-2611

SLEEVE

Flanged, 3/8" tube

2шт.

22

222-2601

NUT

Hex, 3/8" with 17/32"-24 thread

2шт.

23

A62027

TUBE

PTO lube, 65" (1651 mm) long

1шт.

24

A76093

BUSHING

SPACER - tube clamp, 1/2" (12.7mm) long

3шт.

25

49845

CLAMP

Lube tube

4шт.

26

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

5шт.

27

192-21

LOCK WASHER,3/8"

5шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

5шт.

29

A161150

BRACKET

Tube clamp

1шт.

30

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

31

R14668

CLAMP

Dampner

1шт.

32

187-1300

SELF-TAP SCREW,Hex, 3/8" - 18 x 1"

Tap tite

2шт.

33

222-5101

CONNECTOR, ELEC,17/32"-24 x 1/4" NPT

SPARE PART ASSY - straight, 3/8" tube with 9/16"-24 thread x 1/4" PT, Incl. Ref. 34 and 35

1шт.

34

222-5186

SLEEVE,3/8" Tube

Tapered

1шт.

35

222-5181

NUT,9/16"-24

1шт.

36

A76171

TUBE

Elbow, 1" hose stem x 1" PT

1шт.

37

221-426

FITTING,1" NPT

CONNECTOR - Tee

1шт.

38

221-406

FITTING,90 Degree, 1"-11 1/2, NPT

ELBOW - 45 degree, 1" PT

1шт.

39

221-236

PIPE,Nipple, 1" NPT x 1 1/2"

1шт.

40

REF

INSTRUCTION

FILTER ASSY - hydraulic oil (Figure 8-252)

1шт.

41

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

3шт.

42

A144867

TUBE

ASSY - clutch C-1 tube

1шт.

43

218-786

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

1шт.

44

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

ASSY

1шт.

45

A144891

TUBE

HOSE ASSY - lube, PTO clutch

1шт.

46

222-2626

FITTING,17/32"-24 x 1/4" NPT, Comp

CONNECTOR ASSY, Includes Ref. 47 and 48

1шт.

47

222-2611

SLEEVE

Flanged, 3/8" tube

1шт.

48

222-2601

NUT

3/8" tube with 17/32"- 24 thread

1шт.
