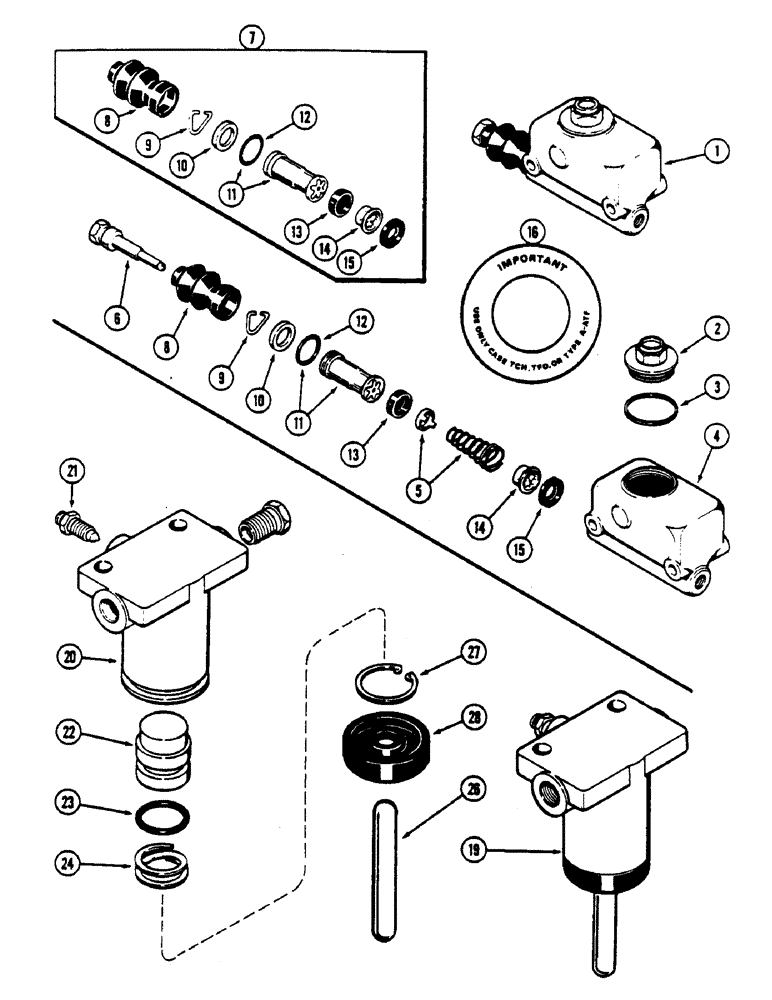

Запчасти Case IH 4690 (7-236) - BRAKE MASTER CYLINDER (07) - BRAKES

1

A59534

CYLINDER

ASSEMBLY - master, Includes: Ref. 2 - 16

1шт.

2

A19918

CAP

- filler

1шт.

3

A19755

GASKET

- cap

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order A59534)

1шт.

5

33352

SPRING

ASSEMBLY - return, piston

1шт.

6

A42371

ROD

- push

1шт.

7

A42366

KIT

- repair, Includes: Ref. 8 - 15

1шт.

8

A42370

BOOT

COVER - dust

1шт.

9

33347

LOCKING DEVICE

WIRE - lock

1шт.

10

NLS

NO LONGER SERVICED

- stop, piston

1шт.

11

NSS

NOT SOLD SEPARAT

PISTON - cylinder (Order A42370)

1шт.

12

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

- 9/16 ID x 3/32" width (14.29 ID x 2.38 MM width)

1шт.

13

A42368

CUP ASSY.

CUP - primary

1шт.

14

A47245

VALVE

- check

1шт.

15

A47246

VALVE

SEAT - check valve

1шт.

16

A61114

DECAL

TAG - fluid warning

1шт.

19

A62483

CYLINDER

ASSEMBLY - slave, brake slave cylinder, Includes: Ref. 20 - 28

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order A62483), brake slave

1шт.

21

A41491

BLEEDER,1/4" - 28 x 23.37mm

BLEEDER - cylinder, brake slave

1шт.

22

A45383

PISTON

ASSEMBLY - cylinder, break slave, Includes: Ref. 23 and 24

1шт.

23

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- 11/16 ID x 3/32" width (17.46 ID x 2.38 MM width), brake slave cylinder

1шт.

Part of repair kit, P/N A42258

1шт.

24

A42252

SEALING RING

RING - backup, brake slave cylinder

1шт.

Part of repair kit, P/N A42258

1шт.

26

A42254

ROD

- push, brake slave cylinder

1шт.

Part of repair kit, P/N A42258

1шт.

27

A42256

SNAP RING,0.901", Int, #90

brake slave cylinder 0.901", Int, #90

1шт.

Part of repair kit, P/N A42258

1шт.

28

A42255

BOOT

COVER - dust, brake slave cylinder

1шт.

Part of repair kit, P/N A42258

1шт.

A42258

KIT

- repair, Includes: Refs. 23, 24, 26, 27 and 28, brake slave cylinder

1шт.
