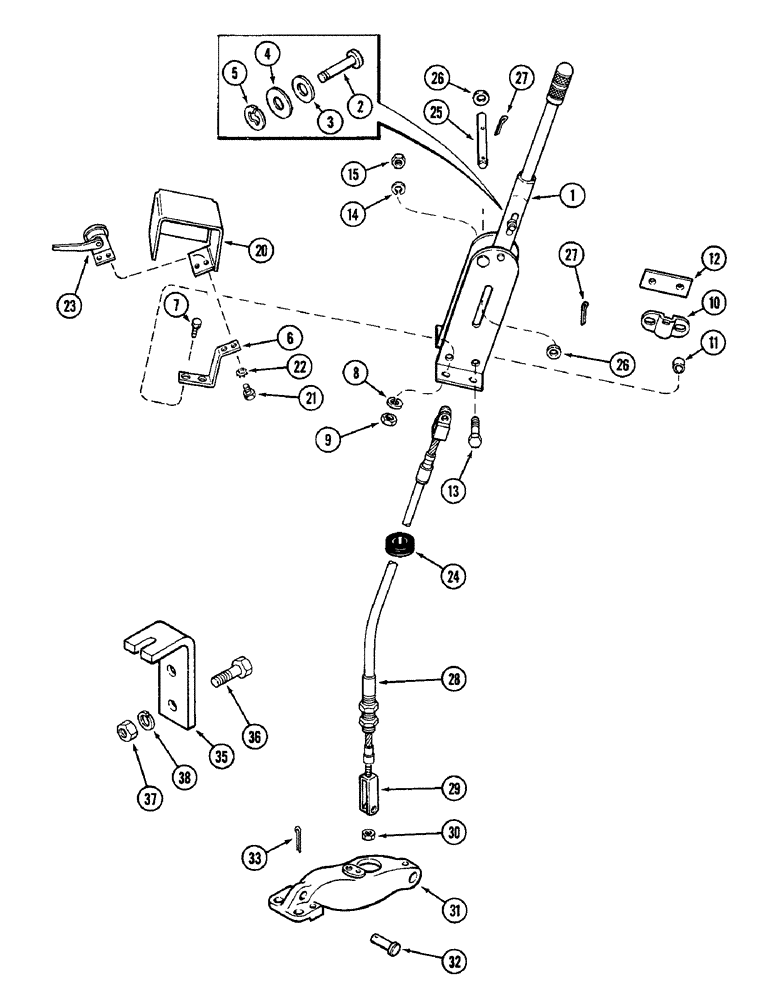

Запчасти Case IH 4690 (7-232) - PARKING BRAKE LINKAGE (07) - BRAKES

1

A161718

LEVER

ASSEMBLY - hand, parking brake (Replaces A148041), Includes: Ref. 2 - 5

1шт.

2

A42204

PIN

Lever

1шт.

3

A55934

WASHER

Spring

1шт.

4

95-5

WASHER,3/8" x 7/8" x .083"

(9.5 x 22.2 x 1.9 mm)

1шт.

5

C14652

RING

Snap

1шт.

6

A75751

BRACKET

Switch, hand brake

1шт.

7

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

4шт.

9

9635082

NUT,5/16" - 18, Gr 5

4шт.

10

A76109

CLAMP

Cable to lever assembly

1шт.

11

A31238

BUSHING

SPACER - clamp bolt

2шт.

12

A75745

BUSHING

SPACER - clamp

1шт.

13

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

2шт.

20

A139933

COVER

SPARE PART Switch

1шт.

21

163-9

SCREW,Hex, #10 - 32 x 1/2"

SPARE PART Machine

2шт.

22

193-70

LOCK WASHER,Ext-Int Tooth, #10

5/16" internal-external Shakeproof

2шт.

23

A33977

SWITCH

Warning light (See Fig 4-76)

1шт.

24

F37765

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

Cable

1шт.

25

A161784

PIN

Clevis, cable to hand lever (Replaces A76379)

1шт.

26

195-21

WASHER,5/16"

(11/32 x 11/16 x 1/16") (8.7 x 17.5 x 1.6 mm)

2шт.

27

132-36

COTTER PIN,Ext Prong Sq Cut, 3/32" x 2"

PIN - cotter, 3/32" x 1-1/4"

2шт.

28

A138977

CABLE

ASSEMBLY - control, parking brake, Includes Ref. 29 and 30

1шт.

29

A45085

CLEVIS

Cable to lever pin

1шт.

30

131-751

NUT - lock, 5/16" NF

1шт.

31

REF

INSTRUCTION

LEVER - brake actuating (See page 7-230)

1шт.

32

141-54

CLEVIS PIN,3/8" x 1 1/16"

To actuating lever

1шт.

33

132-36

COTTER PIN,Ext Prong Sq Cut, 3/32" x 2"

PIN - cotter, 3/32" x 1-1/4"

1шт.

35

A138978

BRACKET

Stop, control cable

1шт.

36

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

37

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

38

192-23

LOCK WASHER,1/2"

2шт.
