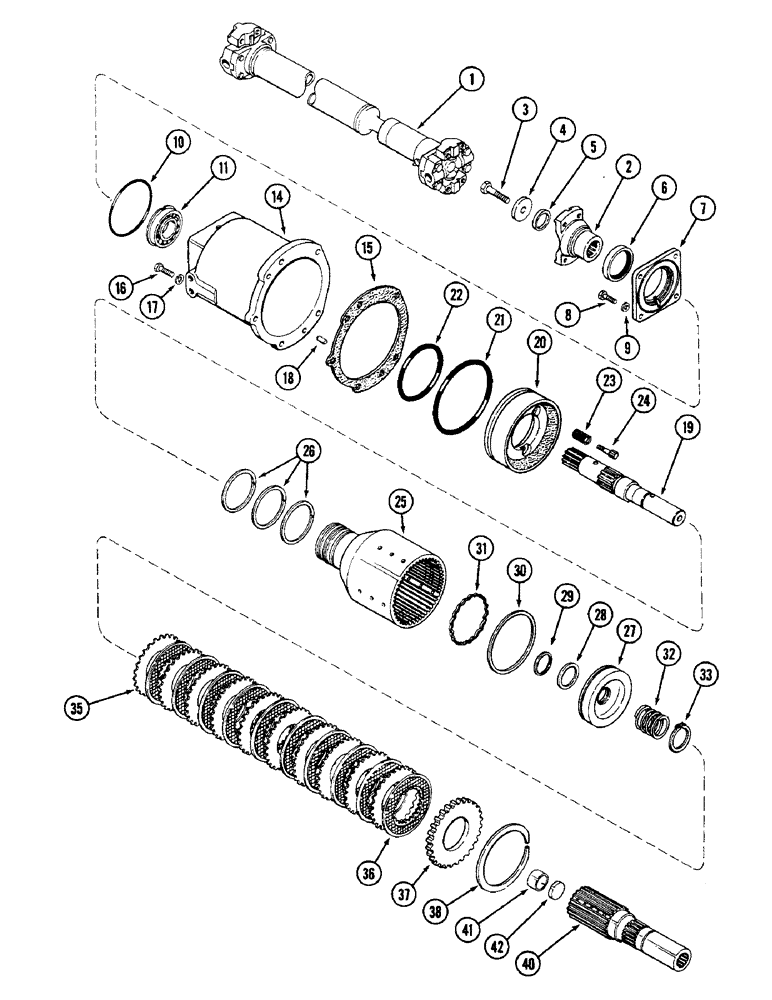

Запчасти Case IH 4690 (6-222) - PTO CLUTCH AND SHAFTS (06) - POWER TRAIN

1

REF

INSTRUCTION

SHAFT ASSEMBLY - PTO drive (See Figure 6-224)

1шт.

2

A76560

YOKE

UNIVERSAL JOINT YOKE Drive shaft

1шт.

3

113-2436

BOLT,Locking, 1/2" - 13 x 2-1/4", Gr 5

1шт.

4

A75206

WASHER,13.5mm ID x 50.8mm OD x 9.53mm Thk

Yoke, 17/32" x 2" x 3/8" (13.49 x 50.8 x 9.52 mm)

1шт.

5

A75205

SEALING WASHER

Yoke

1шт.

6

A76014

OIL SEAL

Oil, output shaft

1шт.

7

A152916

BEARING CAP

Bearing

1шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

9

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

25/64" x 3/4" x 1/32" (9.92 x 19.05 x 0.79 mm)

4шт.

10

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

Bearing cap, (114.3 ID x 3.17 mm width)

1шт.

11

G13606

BALL BEARING

Output shaft

1шт.

14

A144126

HOUSING

PTO clutch

1шт.

15

A153699

GASKET

Clutch housing to drive housing

1шт.

16

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

5шт.

17

92-6

LOCK WASHER,3/8"

5шт.

18

A8134

PIN

DOWEL - clutch housing

2шт.

19

A138523

SHAFT

Output, PTO

1шт.

20

A148391

PISTON

ASSEMBLY - PTO brake (Includes lining)

1шт.

21

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

Outer, piston (M152.4 ID x 3.17 Thk)

1шт.

22

238-5248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

Inner, piston, 4-3/4 ID x 1/8" width (M120.65 ID x 3.17 Thk)

1шт.

23

A155605

SPRING

Return, brake piston (Replaces A77280)

3шт.

24

166-1005

12 PT SCREW,Lock, Flg, 3/8" - 16 x 2", Gr 8

3шт.

25

A144127

CARRIER

PTO clutch

1шт.

26

A58384

RING

Seal, carrier

3шт.

27

A155962

PISTON

PTO, clutch (Replaces A67155)

1шт.

28

A63258

SEAL

Internal, clutch piston, 1-1/2 ID x 3/32" wide (38.1 x 2.33 mm)

1шт.

29

A155964

O-RING,1.812" ID x 0.073" Thk

SEAL - internal clutch piston (Replaces A63259 spring seal)

1шт.

30

A50625

SEALING RING,130.02mm ID x 137.64mm OD x 2.49mm Thk

SEALRING External clutch piston

1шт.

31

G155963

SEAL

External, clutch piston (Replaces G102094 spring seal)

1шт.

32

A63260

SPRING

Piston return, 1-3/4" (44.45 mm) free length

1шт.

33

T37909

SNAP RING,#150, Ext

Return spring

1шт.

35

A67156

PLATE

Steel, PTO clutch

10шт.

36

A67130

PLATE

Friction, PTO clutch

10шт.

37

A50643

PLATE

Back, PTO clutch

1шт.

38

A50639

RING

Snap, back plate

1шт.

40

A156124

SHAFT

Input, PTO and hydraulic pump drive

1шт.

41

A138866

BUSHING

Input shaft

1шт.

42

41-1024

PLUG,Cup, 1 1/2"

(38.1 mm) diameter

1шт.
