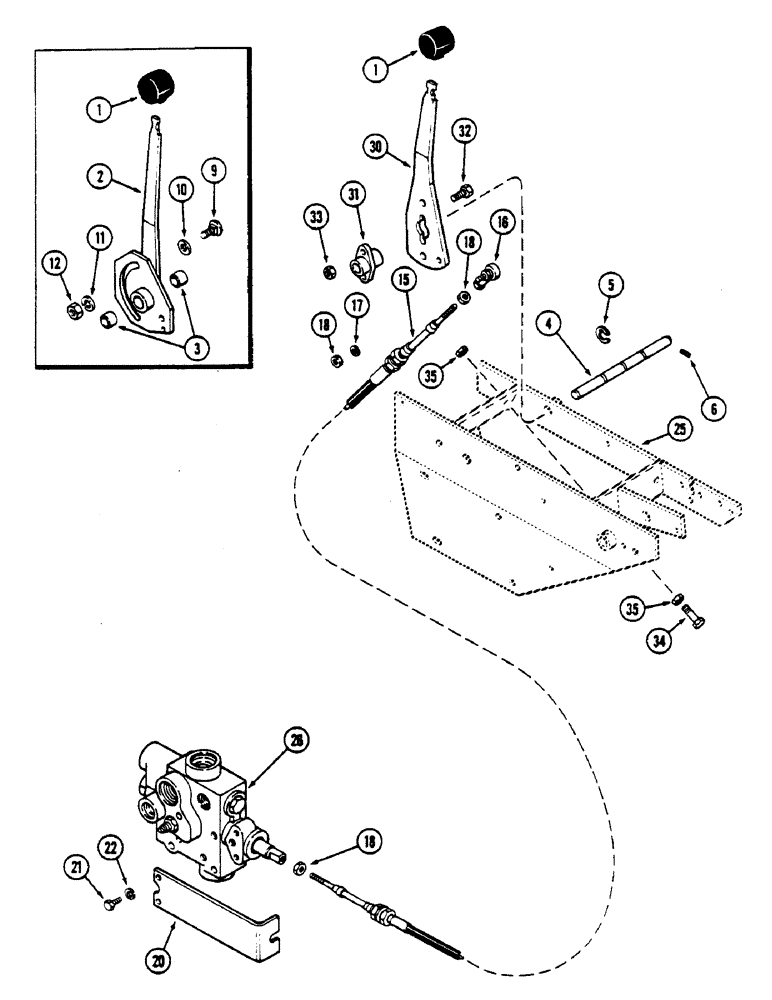

Запчасти Case IH 4690 (6-220) - PTO CONTROL LINKAGE (06) - POWER TRAIN

1

A137806

KNOB

Control lever

1шт.

2

A161020

BRACKET

LEVER ASSEMBLY - hand, PTO control (Prior to P.I.N. 8860450), Includes: Ref. 3

1шт.

3

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

Pivot

2шт.

4

A161039

SHAFT

Hand lever

1шт.

5

A27785

CIRCLIP,#62, .480" Dia, E-Type

Shaft

2шт.

6

178-24

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

Headless socket

1шт.

9

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

2шт.

10

195-525

WASHER,3/8", SAE

(13/32" x 13/16" x 1/16") (10.3 x 20.6 x 1.6 mm)

2шт.

11

192-21

LOCK WASHER,3/8"

1шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

15

A149528

CABLE

Control, Serial Range: lever-valve

1шт.

16

A75447

BALL JOINT

1шт.

17

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

1шт.

18

129-37

NUT,#10-32

3шт.

20

A161005

BRACKET

Anchor, control cable

1шт.

21

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

22

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

25

REF

INSTRUCTION

CONSOLE - control (See Figure 9-354 and 9-356)

1шт.

26

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Figure 8-250)

1шт.

30

A162363

LEVER

Hand, PTO control (P.I.N. 8860450 and after)

1шт.

31

A162299

BEARING,15.95mm ID

BEARING - hand lever

1шт.

32

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

33

131-1180

LOCK NUT,1/4"-20, GA

2шт.

34

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

35

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.
