Запчасти Case IH 4690 (6-218) - WHEEL WEIGHTS (06) - POWER TRAIN

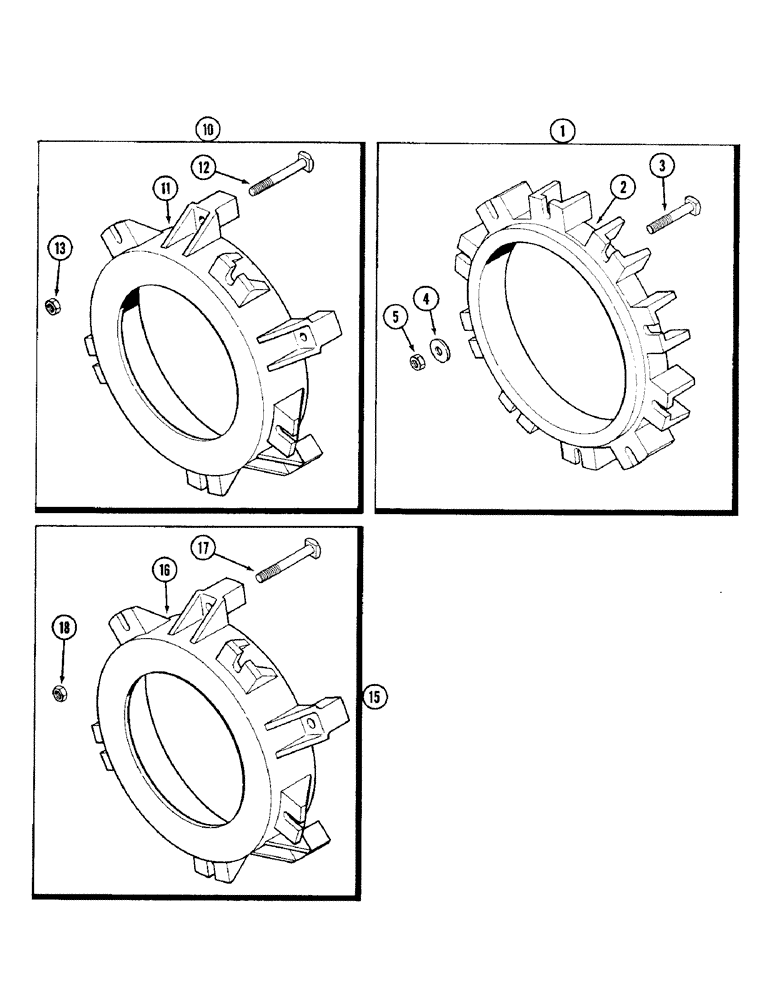

Схема запчастей Case IH 4690 - (6-218) - WHEEL WEIGHTS (06) - POWER TRAIN
5
12
11
13
18
17
10
16
4
1
15
3
2

Артикул

Название

Примечание

Количество

1

A75939

ATTACHMENT - wheel weight (Machine item), Includes: Ref. 2 - 5

2шт.

2

A75550

WEIGHT - 100 pounds (45.389 KG) (Machine item)

2шт.

3

117-706

BOLT - 3/4" x 4-1/2" NC square head

10шт.

4

195-109

WASHER,3/4"

- 13/16" x 2" x 3/16"

10шт.

5

129-108

NUT,3/4"-10, G5

10шт.

10

A75938

ATTACHMENT - weight adapter for 30 or 34" wheels (Machine item), Includes: Ref. 11 - 13

2шт.

11

A75549

ADAPTER - 100 pounds (45.389 KG)

2шт.

12

117-607

BOLT,Sq Hd, 3/4" - 10 x 6", Gr 5

- 3/4" x 6" NC square head

10шт.

13

129-108

NUT,3/4"-10, G5

10шт.

15

A77117

ATTACHMENT - weight adapter for 32" wheels (Machine item), Includes: Ref. 16 - 18

2шт.

16

A75549

ADAPTER - 100 pounds (45.389 KG)

2шт.

17

117-610

BOLT - 3/4" x 8" NC square head Sq Hd, 3/4"-10 x 8", G5

10шт.

18

129-108

NUT,3/4"-10, G5

10шт.

Выбрано товаров: 13
