(1-006) - PICTORIAL INDEX, REMOTE HYDRAULICS

Запчасти Case IH 4690 (1-006) - PICTORIAL INDEX, REMOTE HYDRAULICS (00) - PICTORIAL INDEX

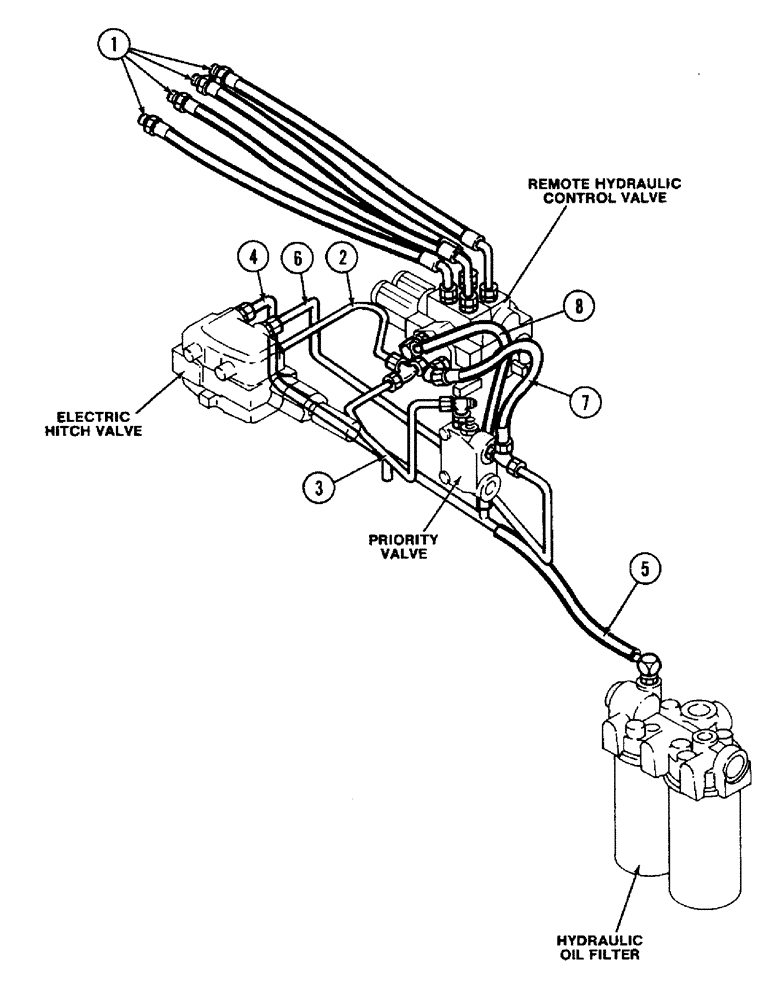

Схема запчастей Case IH 4690 - (1-006) - PICTORIAL INDEX, REMOTE HYDRAULICS (00) - PICTORIAL INDEX
2
1
4
5
6
8
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Control Valve to Coupling Hoses, Page 8-283

1шт.

2

Hitch Valve Sensing Tube, Page 8-281

1шт.

3

Priority Valve to Hitch Valve Tube, Page 8-281

1шт.

4

Hitch Valve Drain Tube, Page 8-281

1шт.

5

Tube to Filter Hose, Page 8-281

1шт.

6

Priority Valve to Hitch Valve Tube, Page 8-281

1шт.

7

Remote Valve to Priority Valve Hose, Page 8-281

1шт.

8

Remote Valve Drain Hose, Page 8-281

1шт.

Выбрано товаров: 8
