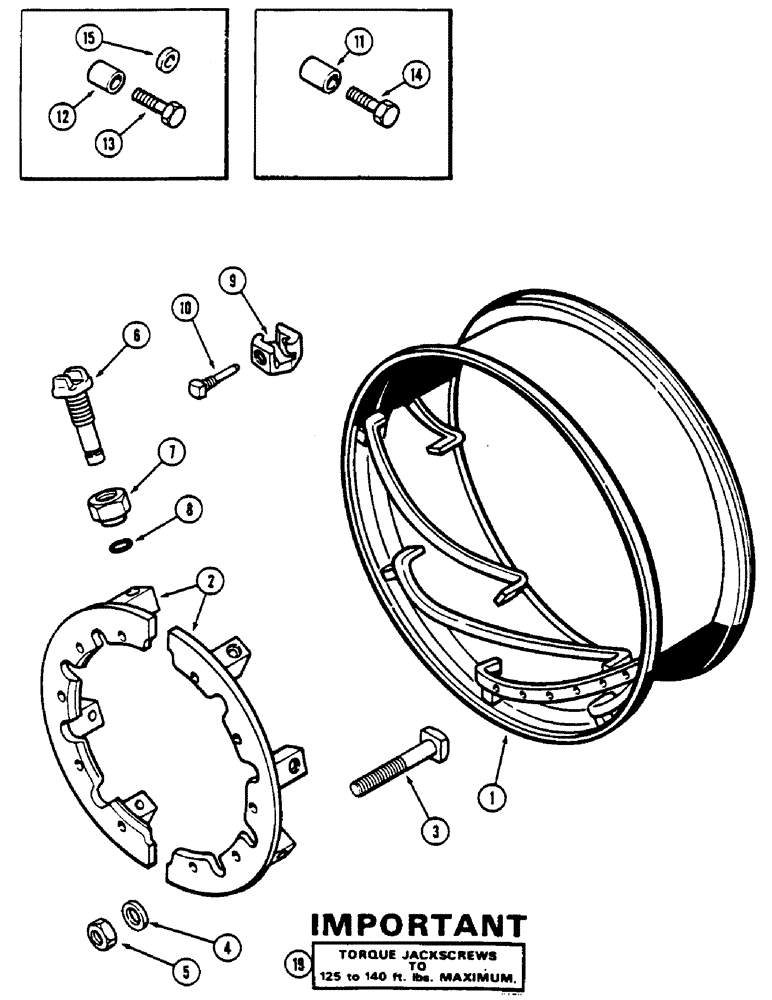

Запчасти Case IH 4690 (6-214) - POWER ADJUSTABLE WHEEL AND CLAMPS (06) - POWER TRAIN

1

A161863

RIM

- wheel, 16.9 x 38" (429.26 x 965.2 5 MM) tire

4шт.

2

A162850

DISC

WHEEL - inner (Replaces A161822)

4шт.

3

A160853

SQUARE BOLT

- wheel to hub, square head Grade 8

40шт.

4

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- wheel bolt (Replaces A141125)

40шт.

5

129-137

NUT,3/4"-10, G5

40шт.

A11051

SCREW,Jack

JACKSCREW ASSEMBLY - wheel clamping, Includes: Ref. 6 - 8

32шт.

6

NSS

NOT SOLD SEPARAT

JACKSCREW, clamp (Order A11051)

1шт.

7

A9408

NUT

- jackscrew

1шт.

8

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- jackscrew

1шт.

9

A9406

STOP

LUG - rim stop

16шт.

10

A9440

STOP

SCREW - rim stop lug

16шт.

11

A161885

SPACER

- front steering stop bolt, 1-1/2" (38.1 MM) long

2шт.

12

A161884

SPACER

- rear steering stop bolt, 1-1/4" (31.75 MM) long

2шт.

13

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- 5/8" x 2-1/4" NC hex, Grade 8 (Rear stop)

2шт.

14

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- 5/8" x 2-1/2" NC hex (Front stop)

2шт.

15

A140011

BUSHING

SPACER - front steering stop bolt, 5/16" (7.9 MM) long

2шт.

A162269

ATTACHMENT - wheel (Machine item, includes all items listed above)

1шт.

19

321-6432

DECAL

- jackscrew torque (Important)

8шт.
