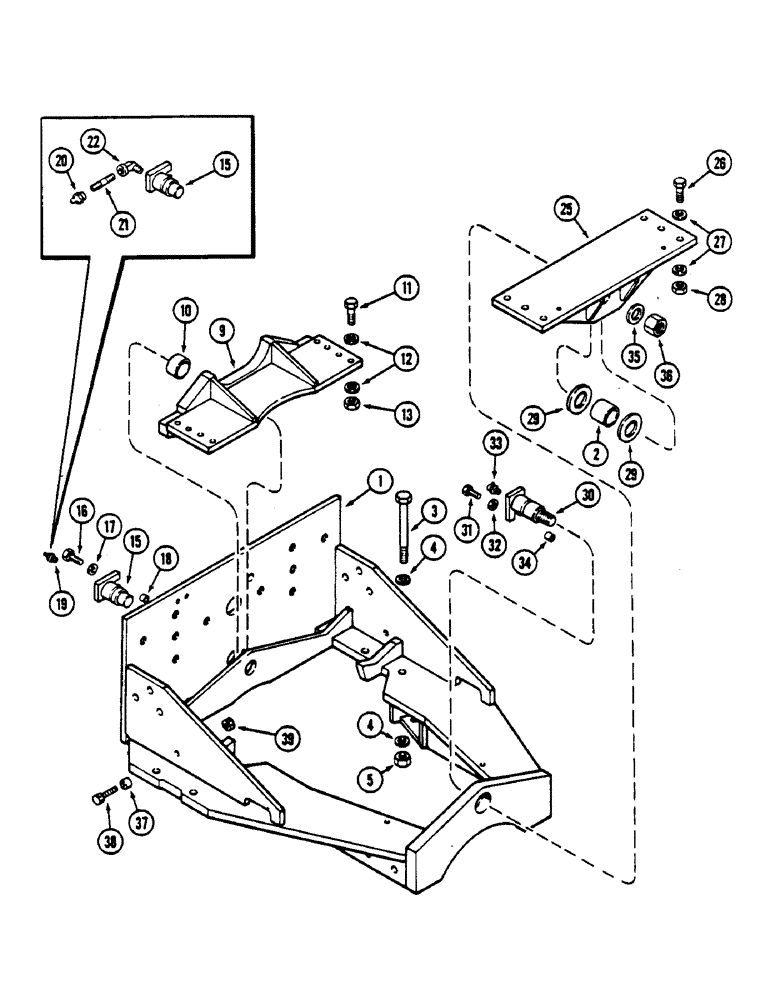

Запчасти Case IH 4690 (6-210) - REAR AXLE TRUNNION AND PIVOT (06) - POWER TRAIN

1

A161920

TRUNNION

ASSEMBLY - rear axle, Includes: Ref. 2

1шт.

2

A75651

BUSHING,44.96mm ID x 53.92mm OD x 48.26mm L

- pivot

1шт.

3

28-14144

BOLT,Hex, 7/8" - 14 x 9", Gr 8

- 7/8" x 9" NF hex (Grade 8)

8шт.

4

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

- 23/32" x 1-1/2" x 9/64" (18.26 x 38.1 x 3.57 MM)

16шт.

5

131-187

LOCK NUT,7/8"-14, GB

NUT - lock, 7/8" NF hex

8шт.

9

A77167

ANCHOR

ASSEMBLY - trunnion rear, Includes: Ref. 10

1шт.

10

A12058

BUSHING,44.88mm ID x 53.92mm OD x 38.1mm L

- pivot

1шт.

11

28-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 8

- 3/4" x 2-3/4" NF hex (Grade 8)

8шт.

12

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- 25/32" x 1-3/8" x 9/64" (19.84 x 34.92 x 3.57 MM)

16шт.

13

131-186

LOCK NUT,3/4"-16, GB

NUT - lock, 3/4" NF hex

8шт.

15

A145193

PIN

- rear pivot

1шт.

16

113-481

BOLT,Locking, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- 1/2" x 1-1/2" NC hex (Grade 5)

1шт.

17

L30674

WASHER

- 17/32" x 1" x 1/8" (13.49 x 25.4 x 3.17 MM)

1шт.

18

A148908

SPACER

- pivot pin

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" PT (Without PTO)

1шт.

20

219-60

LUBE NIPPLE,1/8" - 27 Female NPTF

FITTING - lube, 1/8" (With PTO)

1шт.

21

221-117

FITTING

NIPPLE - 1/8" PT x 6" (With PTO)

1шт.

22

219-82

ELBOW,90 Degree, 1/8"-27

- 90 degree, 1/8" PT

1шт.

25

A76541

ANCHOR

- trunnion front

1шт.

26

28-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 8

- 2-3/4" NF hex (Grade 8)

6шт.

27

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- 25/32" x 1-3/8" x 9/64" (19.84 x 34.92 x 3.57 MM)

12шт.

28

131-186

LOCK NUT,3/4"-16, GB

NUT - lock, 3/4" NF hex

6шт.

29

A14003

WASHER

- thrust, 1-25/32" x 1-3/4" x 5/64" (45.24 x 44.45 x 1.98 MM)

2шт.

30

A145192

PIN

- front pivot

1шт.

31

113-481

BOLT,Locking, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- 1/2" x 1-1/2" NC hex (Grade 5)

1шт.

32

L30674

WASHER

- 17/32" x 1" x 1/8" (13.49 x 25.4 x 3.17 MM)

1шт.

33

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

34

A148908

SPACER

- pivot pin

1шт.

35

195-59

WASHER,1 5/16" x 2 3/4" x .165"

- 1-5/16" x 2-3/4" x 5/32" (33.3 x 69.9 x 4 MM)

1шт.

36

131-22

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, 1 1/4"-12, GB

1шт.

37

A140434

BUSHING

SPACER - tube mounting

2шт.

38

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

39

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.
