Запчасти Case IH 4690 (6-198) - REAR AXLE AND DIFFERENTIAL ASSEMBLY, LEFT HAND TRUNNION AND SPINDLE (06) - POWER TRAIN

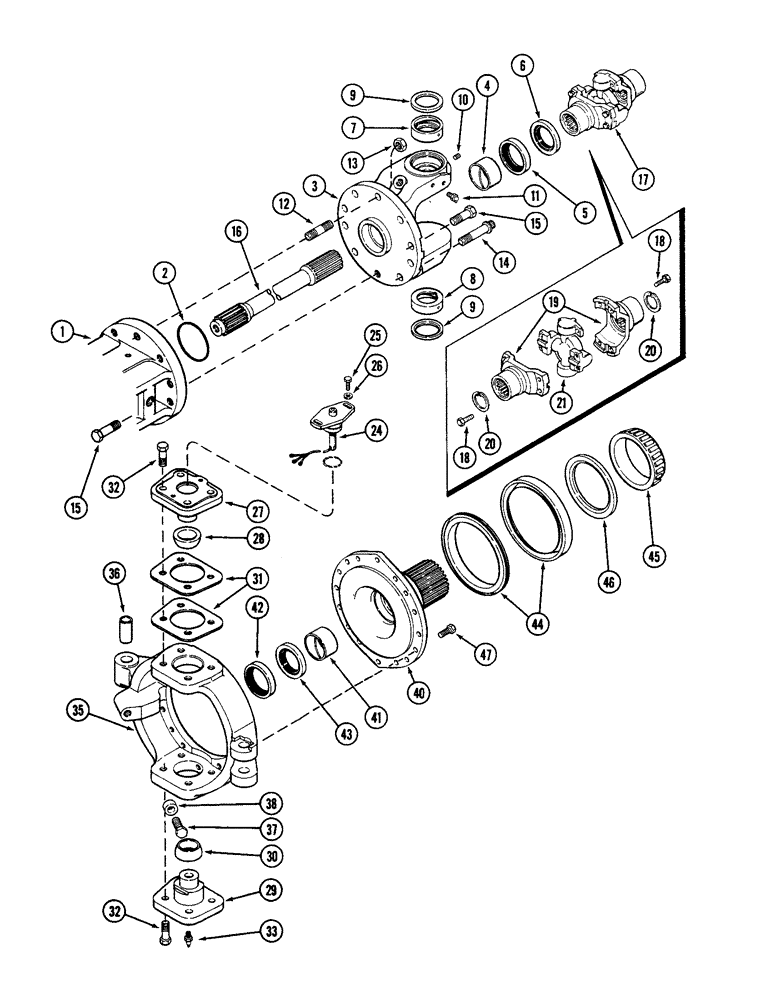

Схема запчастей Case IH 4690 - (6-198) - REAR AXLE AND DIFFERENTIAL ASSEMBLY, LEFT HAND TRUNNION AND SPINDLE (06) - POWER TRAIN
36
45
8
38
13
43
2
9
9
18
17
32
31
35
27
20
4
20
12
11
14
1
15
3
10
40
25
41
7
18
21
32
5
44
46
16
6
42
30
29
47
26
37
28
24
15
33
19

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

HOUSING - axle (See Figure 6-192)

1шт.

2

A21301

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

(M92.07 ID x 3.17 Thk)

1шт.

3

A152610

TRUNNION

ASSEMBLY - axle

1шт.

4

A75234

BUSHING

Universal joint, 2-11/16" OD x 1-1/2" wide (68.26 x 38.1 mm), Includes: Ref. 4 - 9

1шт.

5

A168810

OIL SEAL,61.4mm ID x 89.31mm OD x 16mm Thk

Oil, 2-1/2" x 3-1/2" x 3/8" (63.5 x 88.9 x 9.52 mm) (Replaces A157317)

1шт.

6

A168810

OIL SEAL,61.4mm ID x 89.31mm OD x 16mm Thk

Oil, 2-1/2" x 3-1/2" x 1/4" (63.5 x 88.9 x 6.35 mm) (Replaces A156927)

1шт.

7

A151865

BEARING WASHER,1.75" ID x 2.8125" OD x 0.79"

Bearing, upper king pin, 2-13/16" OD x 51/64" wide (71.44 x 20.24 mm)

1шт.

8

A76570

BEARING WASHER,1.75" ID x 2.8122" OD x 1.07"

Bearing, lower king pin, 2-13/16" OD x 51/64" wide (71.44 x 20.24 mm)

1шт.

9

A142970

SEAL,63.88mm ID x 73.18mm OD x mm Thk

Grease, king pin, 2-1/2" x 2-7/8" x 9/64" (63.5 x 73.02 x 3.57 mm)

2шт.

10

221-849

PLUG,Hex Soc, 1/8"-27

1/8" PT

1шт.

11

219-41

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

(Replaces 219-36)

1шт.

12

A77281

STUD

Trunnion to axle housing (3/4" NC x 2-7/8")

1шт.

13

25-1612

NUT,3/4"-10, G5, Hvy

1шт.

14

166-134

12 PT SCREW,Flg, 3/4" - 10 x 2", Gr 8

2шт.

14

166-139

12 PT SCREW,Flg, 3/4" - 10 x 3 1/4", Gr 8

2шт.

15

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

4шт.

15

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

1шт.

16

A75242

SHAFT

Axle, 32-1/2" (825.5 mm) long

1шт.

17

A75275

JOINT

ASSEMBLY - universal, Includes Ref. 18 - 21

1шт.

18

A12870

BOLT,Hex, 7/16" - 20 x 1 1/16"

U-joint to slip yoke

8шт.

19

A44175

YOKE

UNIVERSAL JOINT YOKE Slip

2шт.

20

A44249

SNAP RING,1.812", Int, #181

2шт.

21

D50866

SPIDER,49.28mm Cap Dia, 117.35mm L, Grease-able

"U" - universal (Includes bearings)

1шт.

24

REF

INSTRUCTION

SENSOR - electric, rear steer (See Figure 5-126)

1шт.

25

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

26

195-104

WASHER,3/8"

WASHER - 7/16" x 1" x 5/64" (11.1 x 25.4 x 1.9 mm)

2шт.

27

A152638

PIN

ASSEMBLY - king, upper, Includes: Ref. 28

1шт.

28

A76576

BEARING WASHER,44.44mm ID x 63.88mm OD x 24.89mm Thk

Bearing

1шт.

29

A152640

PIN

ASSEMBLY - king, lower, Includes: Ref. 30

1шт.

30

A76576

BEARING WASHER,44.44mm ID x 63.88mm OD x 24.89mm Thk

Bearing

1шт.

31

A136186

SHIM,82.96mm ID x 126.75mm OD x 0.13mm Thk

King pin (0.127 mm)

1шт.

31

A136187

SHIM,82.96mm ID x 126.75mm OD x 0.38mm Thk

King pin (0.381 mm)

1шт.

32

26-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

8шт.

33

219-3

LUBE NIPPLE,1/8" - 27 NPTF

Straight (Lower king pin)

1шт.

35

A152552

HOUSING

ASSEMBLY - spindle, Includes Ref. 36

1шт.

36

A75239

BUSHING,22.28mm ID x 28.66mm OD x 56.34mm L

Tie rod pivot bolt

1шт.

37

26-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

1шт.

38

A140011

BUSHING

SPACER - 21/32" x 1" x 5/16" (16.67 x 25.4 x 7.94 mm)

1шт.

40

A152503

SPINDLE

ASSEMBLY - wheel, Includes Ref. 41 - 46

1шт.

41

A75234

BUSHING

Universal joint, 2-11/16" OD x 1-1/2" wide (68.26 x 38.1 mm)

1шт.

42

A168810

OIL SEAL,61.4mm ID x 89.31mm OD x 16mm Thk

Oil, universal joint, 2-1/2" x 3-1/2" x 3/8" (63.5 x 88.9 x 9.52 mm) (Replaces A157317)

1шт.

43

A168810

OIL SEAL,61.4mm ID x 89.31mm OD x 16mm Thk

Oil, 2-1/2" x 3-1/2" x 1/4" (63.5 x 88.9 x 6.35 mm) (Replaces A156927)

1шт.

44

A76272

OIL SEAL,174.22mm ID x 219.53mm OD x 20.95mm Thk

ASSEMBLY - oil, spindle, 6-7/8" x 8-5/8" x 3/4" (174.6 x 219.07 x 19.05 mm)

1шт.

45

L31699

TAPERED BEARING

CONE, wheel, 5-1/2" x 6-1/4" x 7/32" (139.7 x 158.7 x 5.56 mm)

1шт.

46

A75256

RING

Backup, bearing cone

1шт.

47

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

14шт.

47

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

2шт.
