(4690) - CASE TRACTOR (1/79-12/83)
/
(00) - PICTORIAL INDEX
/

(1-005) - PICTORIAL INDEX, MAIN HYDRAULICS

Запчасти Case IH 4690 (1-005) - PICTORIAL INDEX, MAIN HYDRAULICS (00) - PICTORIAL INDEX

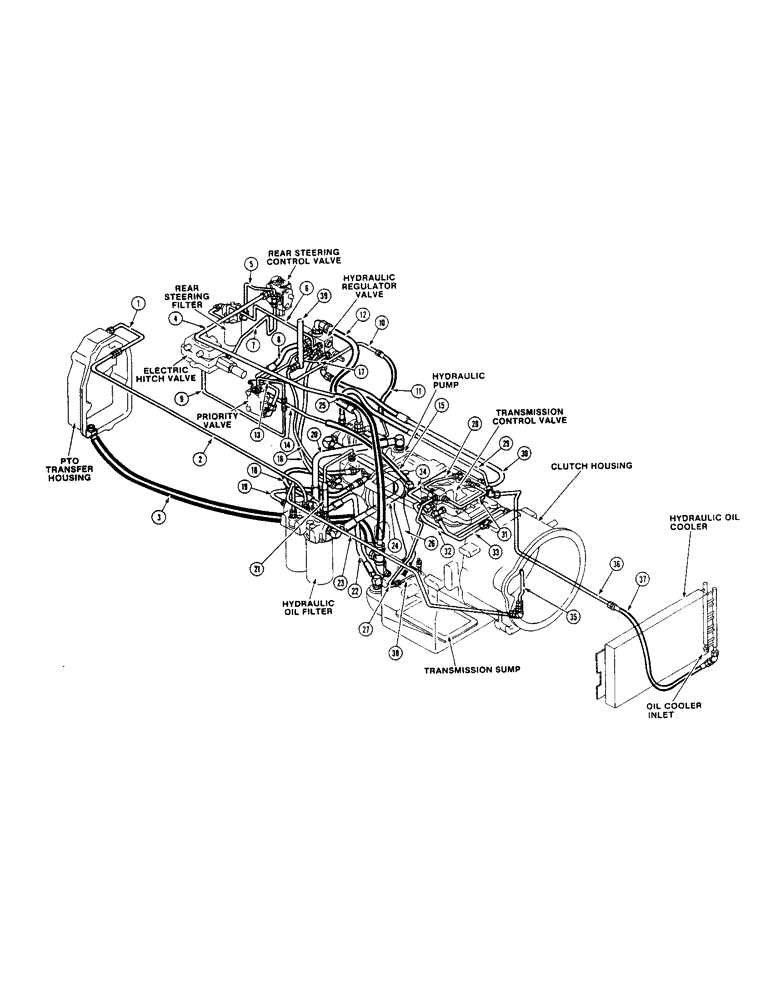

Схема запчастей Case IH 4690 - (1-005) - PICTORIAL INDEX, MAIN HYDRAULICS (00) - PICTORIAL INDEX
39
23
2
22
6
13
18
17
4
14
9
38
30
29
19
35
37
1
24
31
27
15
11
10
26
32
7
3
21
33
28
12
36
20
8
16
25
5

№

Артикул

Название

Примечание

Количество

1

PTO Lube Tube, Page 8-241

1шт.

2

PTO Lube Tube, Page 8-241

1шт.

3

PTO Drain Hose, Page 8-239, 241

1шт.

4

Rear Steering Return to Sump Tube, Page 8-247, 249

1шт.

5

Rear Steering Filter Outlet Tube, Page 5-135B

1шт.

6

Rear Steering Filter Inlet Tube, Page 5-135B

1шт.

7

Hitch Valve to Steering Valve Tube, Page 8-311

1шт.

8

Regulator Valve to Priority Valve Hose, Page 5-131

1шт.

9

Hitch Valve Drain Tube, Page 5-131

1шт.

10

Priority Sensing Tube, Page 5-131

1шт.

11

Pump to Priority Valve Hose, Page 5-131

1шт.

12

Piston Pump to Regulator Valve Outlet Hose, Page 8-245

1шт.

13

Priority Valve Drain Tube, Page 5-131

1шт.

14

Regulator Valve to Transmission Cover Tube, Page 5-131

1шт.

15

Regulator Valve Drain Hose, Page 8-249

1шт.

16

Regulator Valve to PTO Clutch and Brake Housing Hose, Page 8-239, 241

1шт.

17

Pressure Regulator Valve Bypass Tube, Page 8-247

1шт.

18

Gear Pump to Filter Hose, Page 8-245

1шт.

19

Filter to Pump Hose, Page 8-245

1шт.

20

Pump to Filter Outlet Tube, Page 8-245

1шт.

21

PTO Clutch Lube Hose, Page 8-241

1шт.

22

Filter to Pressure Relief Valve Tube, Page 8-245

1шт.

23

Clutch C1 Lube Tube, Page 8-239, 241

1шт.

24

Filter to Gear Pump Tube, Page 8-245

1шт.

25

Rear Steering Valve Return Hose, Page 8-249

1шт.

26

Sump to Pump Suction Tube, Page 8-245

1шт.

27

Valve to Shift Housing Tube, Page 8-263

1шт.

28

C3 Clutch Shuttle Tube, Page 8-263

1шт.

29

Pump to Tee Relief Valve Drain Tube, Page 8-257

1шт.

30

Hydraulic Pressure Regulator Valve to Cover Hose, Page 8-257

1шт.

31

C2 Clutch Shuttle Tube, Page 8-263

1шт.

32

Valve to Clutch Housing Tube, Page 8-259

1шт.

33

Valve to Clutch Housing Tube, Page 8-259

1шт.

34

Reverse Lock-out Pilot Tube, Page 8-259

1шт.

35

C1 Clutch Lubricating Tube, page 6-153

1шт.

36

Oil Cooler Return Tube, Page 8-255, 257

1шт.

37

Oil Cooler Return Hose, Page 8-255

1шт.

38

Hydraulic Lock Internal Tube, Page 6-161

1шт.

39

PTO Clutch Damping Tube, Page 8-241

1шт.
