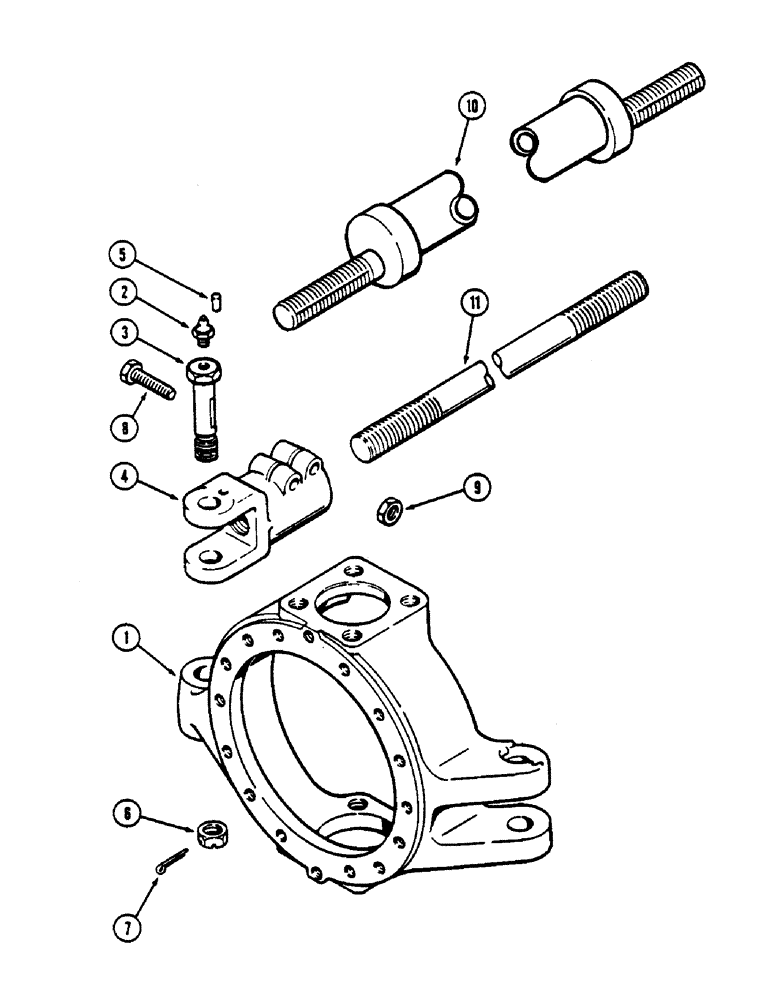

Запчасти Case IH 4690 (6-192) - FRONT AND REAR TIE RODS (06) - POWER TRAIN

1

REF

INSTRUCTION

HOUSING ASSEMBLY - spindle (See Figures 6-180, 6-182, 6-196 and 6-198)

4шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

3

A13107

BOLT

BOLT - pivot, tie rod yoke

4шт.

4

A75253

YOKE

Tie rod

4шт.

5

138-94

LOCK PIN,3/16" x 7/8", Slotted

Roll, 3/16" x 15/16"

2шт.

6

A13110

NUT

Tie rod pivot bolt

4шт.

7

132-52

COTTER PIN,1/8" x 1 1/2"

4шт.

8

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

8шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

10

A155048

SHAFT

ROD - tie, front axle, 58-5/16" (1481.14 MM) (Replaces A76245)

1шт.

11

A76586

ROD

Tie, rear axle, 66-1/4" (1682.75 MM)

1шт.
