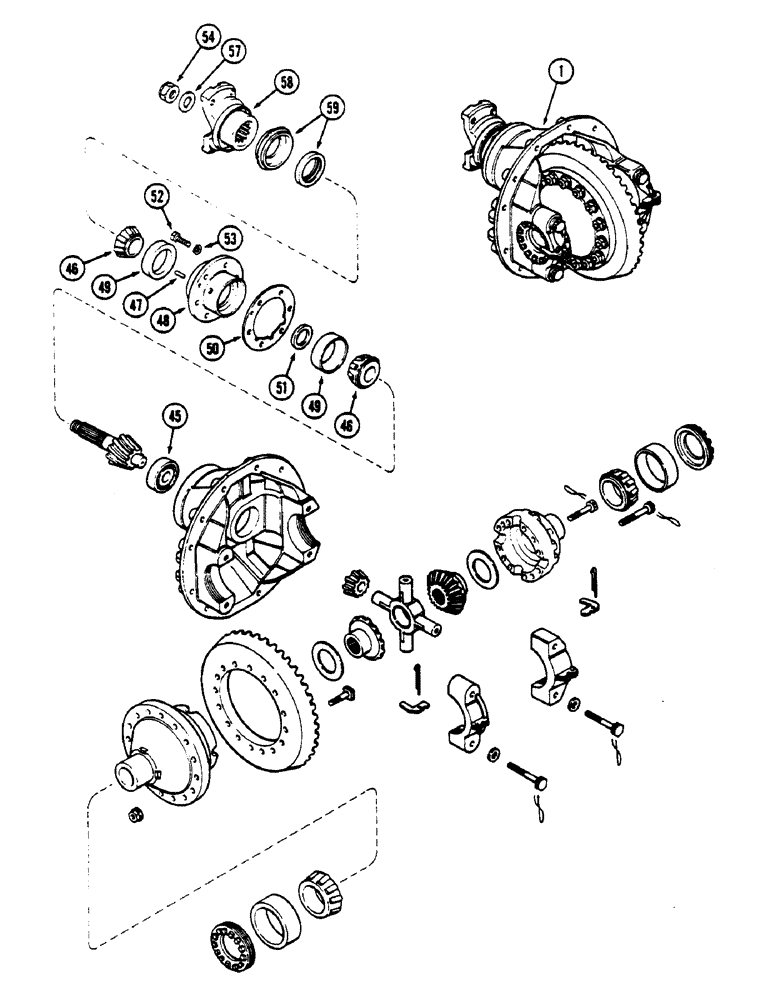

Запчасти Case IH 4690 (6-190) - FRONT AXLE DIFFERENTIAL AND CARRIER (06) - POWER TRAIN

A153461

CARRIER

ASSEMBLY - differential, front axle (Continued from Figure 6-188), Includes: Ref. 45 - 59 and 3 - 41 on Figure 6-188

1шт.

45

L33062

ROLLER BEARING

BEARING - roller, drive pinion

1шт.

46

A44210

ROLLER BEARING,1.75" ID x 1.25"

CONE - bearing, pinion shaft, 1-3/4" (44.45 MM) ID

2шт.

A44230

CAGE ASSY.,4.250" OD

CASE ASSEMBLY - pinion bearing, Includes: Ref. 47 - 49

1шт.

47

A45631

PIN

- guide

1шт.

48

NSS

NOT SOLD SEPARAT

CAGE - bearing (Order A44230)

1шт.

49

F61284

BEARING CUP

CUP - bearing, pinion shaft, 3-3/4" (95.25 MM)

2шт.

50

A44232

SHIM,.003" Thk

Bearing cage (0.0762 mm) .003" Thk

1шт.

50

A44233

SHIM,.005" Thk

Bearing cage (0.127 mm) .005" Thk

1шт.

50

A44235

SHIM,.020" Thk

Bearing cage (0.508 mm) .020" Thk

1шт.

51

A45587

BUSHING

SPACER - pinion bearing, 0.514" (13.0556 MM)

1шт.

51

A45588

BUSHING

SPACER - pinion bearing, 0.522" (13.2588 MM)

1шт.

51

A45589

BUSHING

SPACER - pinion bearing, 0.530" (13.4620 MM)

1шт.

51

A45590

BUSHING

SPACER - pinion bearing, 0.538" (13.6652 MM)

1шт.

51

A45591

BUSHING

SPACER - pinion bearing, 0.542" (13.7668 MM)

1шт.

52

A44212

BOLT

- bearing cage

6шт.

53

193-33

LOCK WASHER,9/16"

WASHER - lock, external Shakeproof 9/16"

6шт.

54

A45567

NUT

- yoke to pinion shaft

1шт.

57

A44209

WASHER

- yoke to pinion shaft

1шт.

58

A44700

YOKE

- drive shaft

1шт.

59

A47594

OIL SEAL

ASSEMBLY - oil, pinion shaft

1шт.
