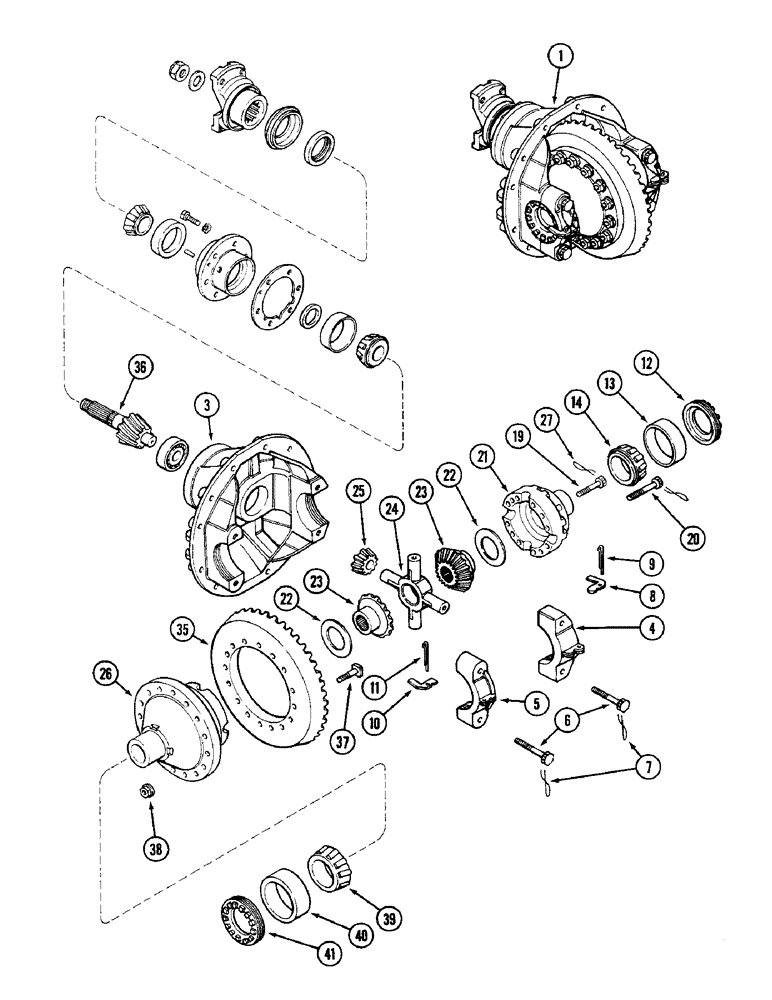

Запчасти Case IH 4690 (6-188) - FRONT AXLE DIFFERENTIAL AND CARRIER (06) - POWER TRAIN

1

A153461

CARRIER

ASSEMBLY - differential, front axle, Includes: Ref. 3 - 41 and 45 - 59 on Figure 6-190

1шт.

A44224

CARRIER

ASSEMBLY - differential, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

CARRIER - differential (Order A44224)

1шт.

4

NSS

NOT SOLD SEPARAT

CAP - bearing

1шт.

5

NSS

NOT SOLD SEPARAT

CAP - bearing

1шт.

6

A44227

BOLT

-, Serial Range: cap-carrier

4шт.

7

391-621

ELECTRICAL WIRE

WIRE - lock, #16 gauge x 13" (1.59 x 330.2 MM) (Order 391-622)

4шт.

8

A44216

LOCK

- adjusting nut, LH

1шт.

9

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

10

A44217

LOCK

- adjusting nut, RH

1шт.

11

132-154

COTTER PIN,1/4" x 2"

PIN - cotter, 1/4" x 1-1/4"

1шт.

12

A44214

NUT

- adjusting, LH bearing

1шт.

13

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP - LH bearing, 4-7/16" (112.71 MM) OD

1шт.

14

A18173

ROLLER BEARING

CONE - LH bearing

1шт.

A153802

DIFFERENTIAL

ASSEMBLY - axle, Includes: Ref. 19 - 26

1шт.

19

A44239

BOLT,Hex, 1/2" - 13 x 2 1/8", Gr 7, Gr 8 Optional, Drilled

- case, 1/2" x 2-1/8" NC hex drilled

4шт.

20

A44241

BOLT,1/2" x 2 7/8", Gr 7

- case, 1/2" x 2-7/8" NC hex drilled

8шт.

21

NSS

NOT SOLD SEPARAT

CASE - plain half (Order A153802)

1шт.

22

A45248

WASHER

- thrust, side gear, 0.058" (1.473 MM)

1шт.

22

A44204

WASHER

- thrust, side gear, 0.061" (1.549 MM)

1шт.

22

A44355

WASHER

- thrust, side gear, 0.064" (1.625 MM)

1шт.

22

A44356

WASHER

- thrust, side gear, 0.067" (1.702 MM)

1шт.

22

A44357

WASHER

- thrust, side gear, 0.070" (1.778 MM)

1шт.

22

A44358

WASHER

- thrust, side gear, 0.073" (1.854 MM)

1шт.

22

A44359

WASHER

- thrust, side gear, 0.076" (1.930 MM)

1шт.

23

NSS

NOT SOLD SEPARAT

GEAR - side (Order A153802)

2шт.

24

A140051

U-JOINT SPIDER

SPIDER - differential pinion

1шт.

25

NSS

NOT SOLD SEPARAT

PINION - drive gear (Order A153802)

4шт.

26

NSS

NOT SOLD SEPARAT

CASE - flange half (Order A153802)

1шт.

27

391-709

ELECTRICAL WIRE

WIRE - lock, #18 gauge x 84" (1.19 x 2133.6 MM)

1шт.

A45112

GEAR

SET - matched pinion and drive gear, Includes: Ref. 35 and 36

1шт.

35

NSS

NOT SOLD SEPARAT

GEAR - drive, 39 teeth (Order A45112)

1шт.

36

NSS

NOT SOLD SEPARAT

PINION - drive, 8 teeth (Order A45112)

1шт.

37

A44263

STEP BOLT

BOLT - drive, Serial Range: gear-case

16шт.

38

A44264

NUT

- gear bolt

16шт.

39

A31243

ROLLER BEARING

CONE - RH bearing, 2-7/8" (73.03 MM) ID

1шт.

40

A31242

CUP

- RH bearing, 5" (127.0 MM) OD

1шт.

41

A44215

NUT

- adjusting, RH bearing

1шт.
