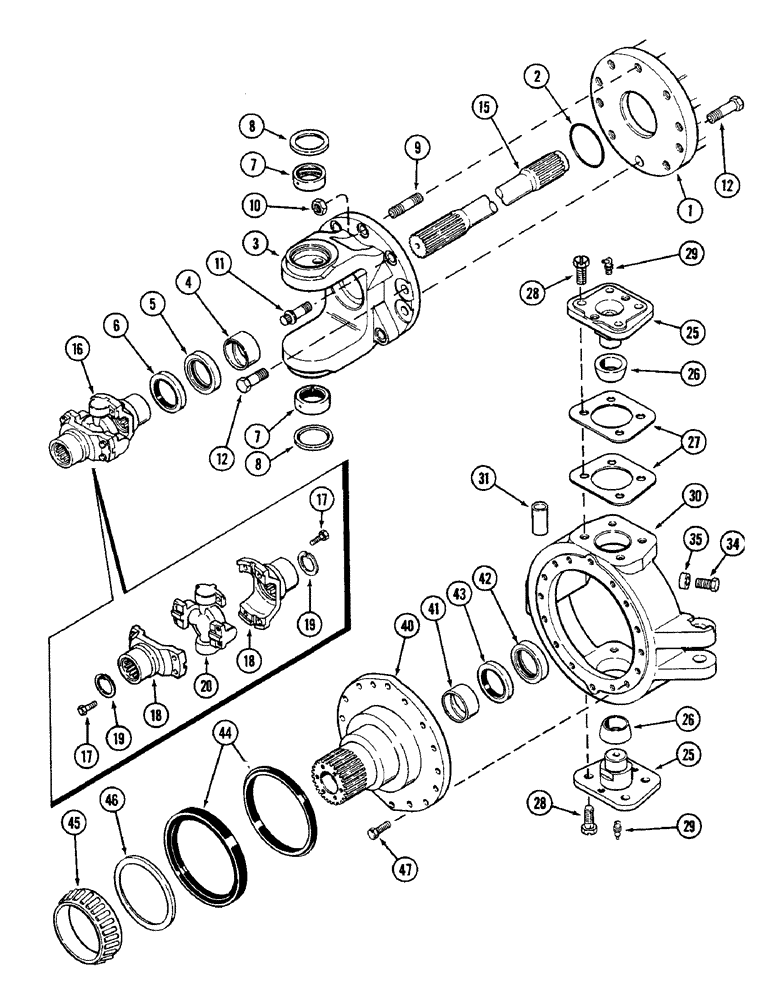

Запчасти Case IH 4690 (6-180) - FRONT AXLE AND DIFFERENTIAL ASSEMBLY, R.H. TRUNNION AND SPINDLE (06) - POWER TRAIN

1

REF

INSTRUCTION

HOUSING - axle (See Figure 6-178)

1шт.

2

A21301

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

(M92.07 ID x 3.17 Thk)

1шт.

3

A151030

AXLE

TRUNNION ASSEMBLY - axle, Includes: Ref. 4 - 8

1шт.

4

A75234

BUSHING

Universal joint, 2-11/16" OD x 1-1/2" wide (68.26 x 36.1 mm)

1шт.

5

A168810

OIL SEAL,61.4mm ID x 89.31mm OD x 16mm Thk

Oil, 2-1/2" x 3-1/2" x 3/8" (63.5 x 88.9 x 9.52 mm) (Replaces A157317)

1шт.

6

A168810

OIL SEAL,61.4mm ID x 89.31mm OD x 16mm Thk

Oil, 2-1/2" x 3-1/2" x 1/4" (63.5 x 88.9 x 6.35 mm) (Replaces A156927)

1шт.

7

A76570

BEARING WASHER,1.75" ID x 2.8122" OD x 1.07"

Bearing, king pin, 2-13/16 OD x 51/64" wide (71.44 x 20.24 mm)

2шт.

8

A142970

SEAL,63.88mm ID x 73.18mm OD x mm Thk

Grease, king pin, 2-1/2" x 2-7/8" x 9/64" (63.5 x 73.03 x 3.57 mm)

2шт.

9

A77281

STUD

Trunnion to axle housing (3/4" NC x 2-7/8")

1шт.

10

25-1612

NUT,3/4"-10, G5, Hvy

1шт.

11

166-134

12 PT SCREW,Flg, 3/4" - 10 x 2", Gr 8

2шт.

11

166-139

12 PT SCREW,Flg, 3/4" - 10 x 3 1/4", Gr 8

2шт.

12

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

4шт.

12

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

1шт.

15

A75242

SHAFT

Axle, 32-1/2" (825.5 mm) long

1шт.

16

A75275

JOINT

ASSEMBLY - universal, Includes: Ref. 17 - 20

1шт.

17

A12870

BOLT,Hex, 7/16" - 20 x 1 1/16"

U joint to slip yoke

8шт.

18

A44175

YOKE

UNIVERSAL JOINT YOKE Slip

2шт.

19

A44249

SNAP RING,1.812", Int, #181

2шт.

20

D50866

SPIDER,49.28mm Cap Dia, 117.35mm L, Grease-able

"U" - (Includes bearings)

1шт.

25

A152640

PIN

ASSEMBLY - king, upper and lower, Includes: Ref. 26

2шт.

26

A76576

BEARING WASHER,44.44mm ID x 63.88mm OD x 24.89mm Thk

Bearing

1шт.

27

A136186

SHIM,82.96mm ID x 126.75mm OD x 0.13mm Thk

King pin (0.127 mm)

1шт.

27

A136187

SHIM,82.96mm ID x 126.75mm OD x 0.38mm Thk

King pin (0.381 mm)

1шт.

28

26-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

8шт.

29

219-3

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

30

A152652

HOUSING

ASSEMBLY - spindle, Includes: Ref. 31

1шт.

31

A75239

BUSHING,22.28mm ID x 28.66mm OD x 56.34mm L

Tie rod pivot bolt

1шт.

34

26-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

1шт.

35

A140006

BUSHING

SPACER - 21/32" x 1" x 11/16" (16.67 x 25.4 x 17.46 mm)

1шт.

40

A152503

SPINDLE

ASSEMBLY - wheel, Includes: Ref. 41 - 46

1шт.

41

A75234

BUSHING

Universal joint, 2-11/16 OD x 1-1/2" wide (68.26 x 38.1 mm)

1шт.

42

A168810

OIL SEAL,61.4mm ID x 89.31mm OD x 16mm Thk

Oil, 2-1/2" x 3-1/2" x 3/8" (63.5 x 88.9 x 9.52 mm) (Replaces A157317)

1шт.

43

A168810

OIL SEAL,61.4mm ID x 89.31mm OD x 16mm Thk

Oil, 2-1/2" x 3-1/2" x 1/4" (63.5 x 88.9 x 6.35 mm) (Replaces A156927)

1шт.

44

A76272

OIL SEAL,174.22mm ID x 219.53mm OD x 20.95mm Thk

Oil, 6-7/8" x 8-5/8" x 3/4" (174.6 x 219.07 x 19.05 mm)

1шт.

45

L31699

TAPERED BEARING

CONE, wheel, 5" ID x 1-1/2" wide (127.0 x 38.1 mm)

1шт.

46

A75256

RING

Backup, 5-1/2" x 6-1/2" x 7/32" (139.7 x 158.7 x 5.56 mm)

1шт.

47

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

14шт.

47

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

2шт.
