Запчасти Case IH 4690 (6-176) - TRANSMISSION OUTPUT SHAFT (06) - POWER TRAIN

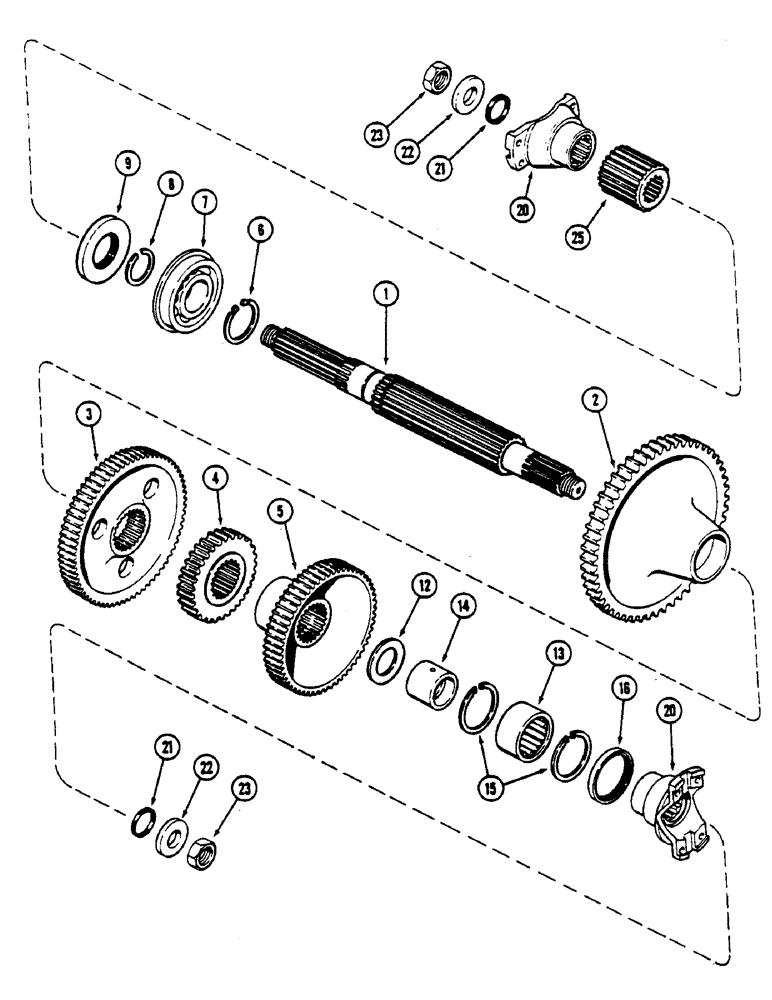

Схема запчастей Case IH 4690 - (6-176) - TRANSMISSION OUTPUT SHAFT (06) - POWER TRAIN
20
2
15
21
12
21
6
1
16
3
13
20
22
8
4
25
7
9
23
23
22
5
14

Артикул

Название

Примечание

Количество

1

A151849

SHAFT

- output

1шт.

2

A76510

GEAR

- 1st driven (76 outer teeth)

1шт.

3

A76509

GEAR

- 2nd driven (65 outer teeth)

1шт.

4

A155293

GEAR

- 4th driven (39 outer teeth) (Replaces A152214)

1шт.

5

A76507

GEAR

- 3rd driven (55 outer teeth)

1шт.

6

A152350

RING

- snap, 1st gear

1шт.

7

A76512

BALL BEARING,2.1654" ID x 5.09" OD x 1.1417"

BEARING - rear

1шт.

8

39326

SNAP RING,#215, Ext

Ring, Snap, , rear bearing #215, Ext

1шт.

9

A152353

OIL SEAL,55mm ID x 101.88mm OD x 11.48mm Thk

- oil, brake housing (Replaces A152352)

1шт.

12

A42844

WASHER,50.85mm ID x 69.6mm OD x 3.2mm Thk

- thrust, front bearing

1шт.

13

A144093

NEEDLE BEARING,Needle, 63.53mm ID x 82.55mm OD x 38.1mm W

BEARING - front

1шт.

14

A152340

RACE

- bearing, front

1шт.

15

A152245

RING

- snap, front bearing

2шт.

16

A38231

OIL SEAL,66.67mm ID x 85.22mm OD x 9.53mm Thk

- oil, front

1шт.

20

A76502

YOKE

- drive shaft, front and rear

2шт.

21

A76503

SEALING WASHER,44.45mm ID x 50.8mm OD x 7.11mm Thk

GASKET - yoke

2шт.

22

A76504

WASHER

- retainer

2шт.

23

131-587

LOCK NUT,1 3/8"-12

NUT - lock, 1-3/8" NF hex

2шт.

25

A152349

HUB

- brake adapter

1шт.

Выбрано товаров: 19
