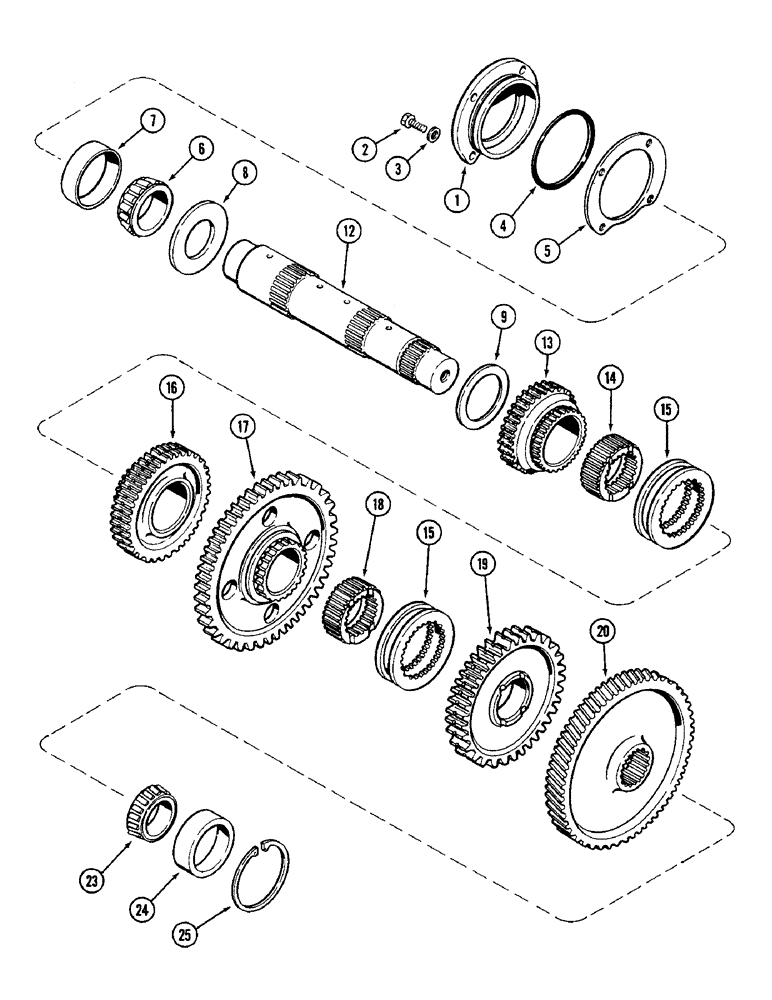

Запчасти Case IH 4690 (6-174) - TRANSMISSION INTERMEDIATE SHAFT (06) - POWER TRAIN

1

A152956

CAP

- rear bearing

1шт.

2

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

3

T40163

WASHER

- hardened, 25/64" x 5/8" x 1/16" (9.92 x 15.87 x 1.59 MM)

4шт.

4

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

- cap seal

1шт.

5

A150777

SHIM

- end cap, 0.003" (0.762 MM)

1шт.

5

A150778

SHIM

- end cap, 0.005" (0.127 MM)

1шт.

5

A150779

SHIM

- end cap, 0.007" (0.177 MM)

1шт.

6

G100323

BEARING

CONE - rear bearing

1шт.

7

L35931

BEARING CUP

CUP - rear bearing, 4-21/64" (109.93 MM) OD

1шт.

8

A152957

THRUST WASHER

SPACER - rear bearing

1шт.

9

A151762

WASHER

- thrust, 0.032" (0.813 MM)

1шт.

9

A151763

WASHER

- thrust, 0.042" (1.09 MM)

1шт.

9

A151764

WASHER

- thrust, 0.052" (1.33 MM)

1шт.

12

A152344

SHAFT

- intermediate

1шт.

13

A153679

GEAR

ASSEMBLY - 1st drive (Includes bushing) (With identification groove)

1шт.

14

A77229

HUB

- shift collar, 1st and 2nd driver gear

1шт.

15

A138190

COLLAR

- shift, driver gears

2шт.

16

A77098

GEAR

ASSEMBLY - 2nd driver (Includes bushing)

1шт.

17

A155351

GEAR

ASSEMBLY - 4th driver (Includes bushing) (Replaces A152213)

1шт.

#17 PER PRINT THIS GEAR HAS 88 TEETH...IF A 73 TOOTH GEAR IS NEEDED USE A77096.

1шт.

18

A77230

HUB

- shift collar, 3rd and 4th driver gear

1шт.

19

A77095

GEAR

ASSEMBLY - 3rd driver (Includes bushing)

1шт.

20

A152346

GEAR

- drop, shaft drive

1шт.

23

A77367

ROLLER BEARING,2.1654" ID x 1.1417"

CONE - front bearing

1шт.

24

A77368

CUP

- front bearing

1шт.

25

R30570

SNAP RING,3.75", Int, #375

Ring, Snap, , front brg 3.75", Int, #375

1шт.
