Запчасти Case IH 4690 (6-164) - TRANSMISSION CLUTCH ASSEMBLY, TORQUE LIMITER (06) - POWER TRAIN

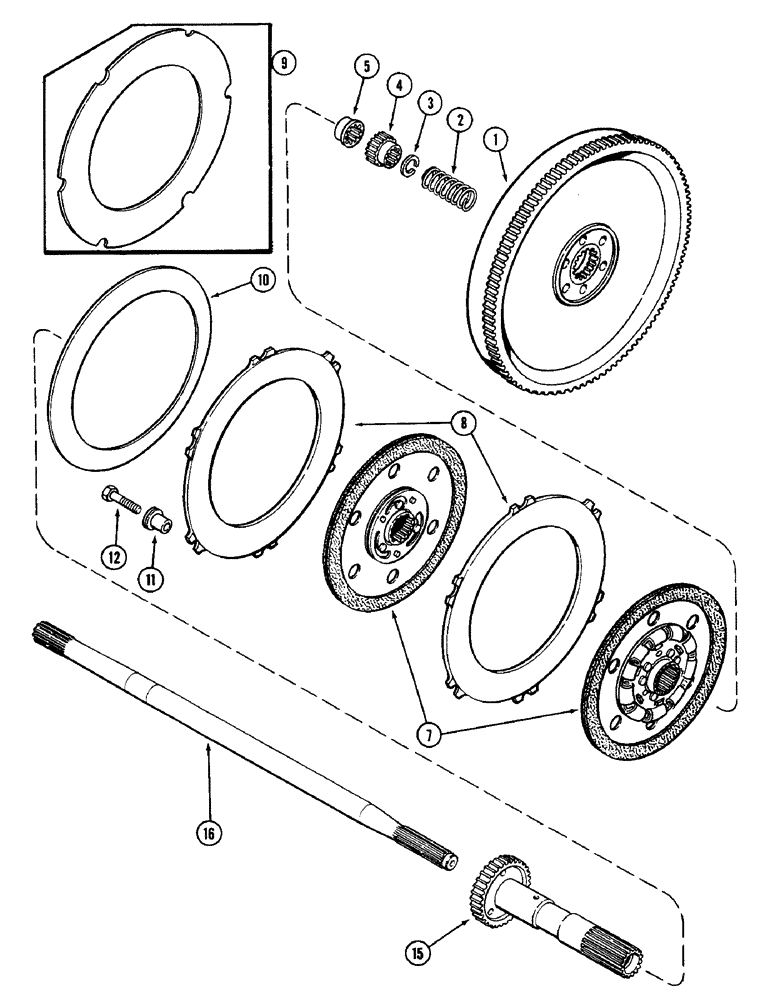

Схема запчастей Case IH 4690 - (6-164) - TRANSMISSION CLUTCH ASSEMBLY, TORQUE LIMITER (06) - POWER TRAIN
12
9
1
10
4
2
7
3
16
15
5
11
8

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

FLYWHEEL ASSEMBLY - engine (See Figure 2-40)

1шт.

2

A65416

SPRING

Drive sleeve, PTO shaft

1шт.

3

A76480

RING

Snap, drive shaft

1шт.

4

A66610

SLEEVE

Pump drive shaft

1шт.

5

A76482

BUSHING,20T

Pump drive shaft

1шт.

7

A155490

PLATE

Torque limiter, 11-7/8" (301.62 MM) diameter

2шт.

7

1981314C1R

REMAN-CLUTCH DISC

Clutch Plate

2шт.

7

1981314C1C

CORE-CLUTCH DISC

Return Part Number

2шт.

8

A155859

PLATE

Pressure, with tabs

2шт.

9

A58036

PLATE

Pressure, without tabs

2шт.

For repairs order 2-A155859 plate, 6-A155865 retainer, and 6-26-840 bolt.

1шт.

10

A61000

SPRING

Belleville (Green color code)

1шт.

11

A155865

RETAINER

Spring (Replaces A153849)

6шт.

12

26-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

(Replaces 26-836)

6шт.

15

A148695

SHAFT

Input gear

1шт.

16

A76488

SHAFT

PTO and pump drive

1шт.

A153170

CLUTCH

ASSEMBLY - powershift and planetary (Complete unit) (Includes parts on Figure 6-164 through 6-172)

1шт.

Выбрано товаров: 17
