Запчасти Case IH 4690 (6-156) - POWER SHIFT LINKAGE (06) - POWER TRAIN

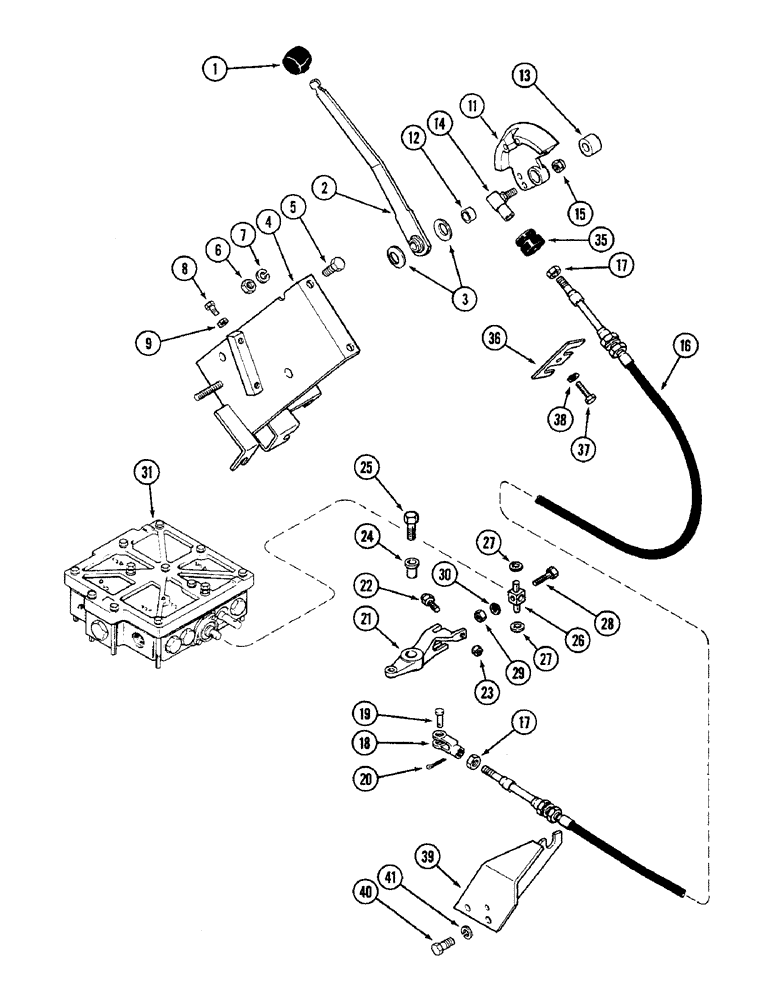

Схема запчастей Case IH 4690 - (6-156) - POWER SHIFT LINKAGE (06) - POWER TRAIN
8
27
3
2
14
29
24
39
20
19
41
37
5
40
25
12
31
17
4
18
11
13
15
17
26
30
16
21
6
35
28
22
1
23
38
9
27
7
36

Артикул

Название

Примечание

Количество

1

A137806

KNOB

Hand lever

1шт.

2

A137858

LEVER

Control

1шт.

3

A59662

WASHER

Beveled

2шт.

4

A138833

BRACKET

Lever mounting

1шт.

5

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

4шт.

7

92-6

LOCK WASHER,3/8"

4шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Lever stop)

1шт.

9

25-146

JAM NUT,Jam, 3/8"-16, G5

1шт.

11

A143835

QUADRANT

ASSEMBLY - shift lever (Replaces A61862), Includes: Ref. 12

1шт.

12

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

Pivot

1шт.

13

A75379

BUSHING

SPACER - quadrant

1шт.

14

A75991

BALL

JOINT - ball, Serial Range: cable-quadrant

1шт.

15

131-5

LOCK NUT,3/8"-16, GB

1шт.

16

A143872

CABLE

Control, power shift (Also order A161072) (Replaces A145341)

1шт.

17

131-5

LOCK NUT,3/8"-16, GB

NUT - lock, 1/4" NC hex

2шт.

18

A60663

YOKE

UNIVERSAL JOINT YOKE, Serial Range: Cable-lever

2шт.

19

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

20

132-26

COTTER PIN

3/32" x 3/4"

2шт.

21

A59771

LEVER

Valve spool

1шт.

22

A59774

ADJUSTMENT SCREW,5/16" - 18 x 1 3/8", Mild Steel

Adjusting, lever

1шт.

23

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

24

A59772

BUSHING

Lever pivot

1шт.

25

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

26

A59150

LINK

Spool operating

1шт.

27

A59773

RING

Retaining

2шт.

28

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

29

25-104

NUT,1/4"-20, G5

1шт.

30

92-4

LOCK WASHER,1/4"

1шт.

31

REF

INSTRUCTION

VALVE ASSEMBLY - control, power shift (See Figure 8-260)

1шт.

35

A161072

GROMMET

Firewall, control cable

1шт.

36

A152517

PLATE

Grommet cover

1шт.

37

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

38

192-21

LOCK WASHER,3/8"

1шт.

39

A75975

BRACKET

BULKHEAD - control cable

1шт.

40

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

41

192-23

LOCK WASHER,1/2"

2шт.

Выбрано товаров: 37
