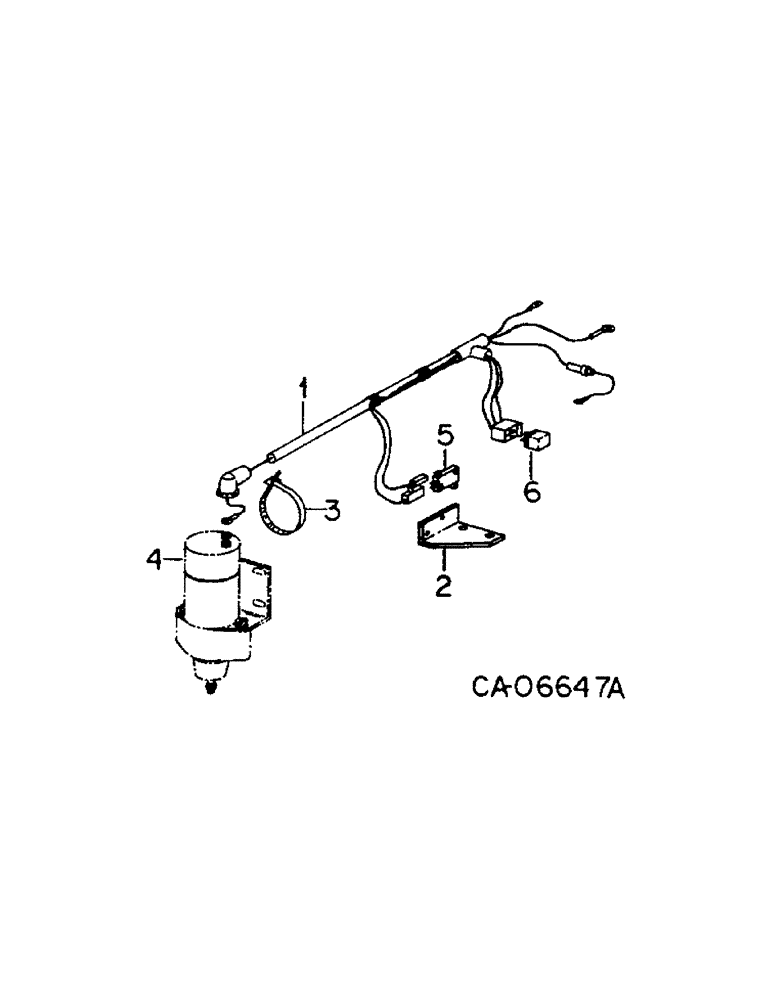

Запчасти Case IH 4586 (08-27) - ELECTRICAL, DECELERATOR WIRING, 4586 TRACTORS WITH SERIAL NO. 1687 AND ABOVE (06) - ELECTRICAL

1

107517C1

ASSEMBLY

HARNESS ASSY, decelerator solenoid

1шт.

61736R1

FUSE, 10 amp

1шт.

2

134432C1

BRACKET

clutch pedal switch

1шт.

179795

TILLAGE BLADE

1/4 x 3/4 pln type 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

3

289862C1

CABLE TIE,3/16" x 7"

STRAP, harness lock

4шт.

4

SOLENOID ASSY, decelerator, Refer to engine speed controls listing, group 12

1шт.

5

134437C1

SWITCH

ASSY, clutch pedal

1шт.

6

3221235R2

RELAY

decelerator solenoid, or

1шт.

6

146461C1

RELAY

decelerator solenoid

1шт.
