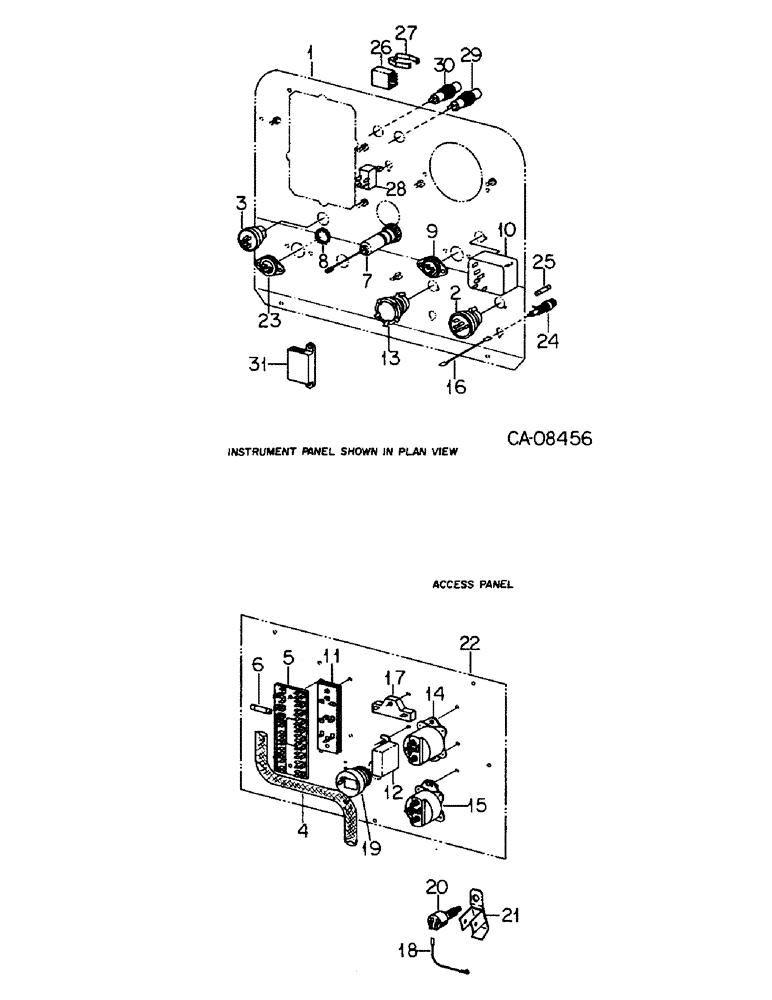

Запчасти Case IH 4586 (08-18) - ELECTRICAL, INSTRUMENT PANEL WIRING, SWITCHES & RELATED PARTS, 4586 TRACTORS WITH S/N 1500 & BELOW (06) - ELECTRICAL

1

PANEL, instrument, Refer to group 11

1шт.

2

107200C2

LIGHT SWITCH

SWITCH ASSY, basic lighting

1шт.

3

107682C1

SWITCH

ASSY, key start

1шт.

365502R1

NUT

switch mounting

2шт.

375431R1

LOCK WASHER

switch mounting

1шт.

131313C1

KEY, IGNITION

switch

1шт.

4

121828C5

HARNESS

ASSY, vehicle main

1шт.

For service on this harness refer to electrical harness service kits under p/n 461832C91

1шт.

121813C1

BUSHING

SOCKET, control relay, Used with harness, 121828C2

1шт.

5

107641C2

BLOCK

fuse

1шт.

26964R1

SCREW

no. 5 x 1/2 phc f/hds mach

2шт.

12539R1

NUT, no. 5 phc mach screw type 1

2шт.

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

-KEP, terminal

2шт.

6

9426867

FUSE,3 Amp, Type 3AG

cartridge type, 2 amp, gray

3шт.

6

9426337

FUSE,3 Amp, Type 3AG

cartridge type, 3 amp, violet

1шт.

6

9426868

FUSE,5 Amp, Type 3AG

cartridge type, 5 amp, tan

2шт.

6

9426332

FUSE,25 Amp, Type 3AG

cartridge type, 25 amp, white

1шт.

7

195778C91

LIGHTER, CIGARETTE

LIGHTER ASSY, cigar

1шт.

8

432527

PLUG,3/8"

button, horn switch hole

1шт.

9

397940R93

SWITCH

ether solenoid push button

1шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

#10NF x 1/2 znp p/hds mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

10

131066C91

SWITCH

ASSY, turn signal & flasher, Replaces 107334C91, Stewart Warner, or

1шт.

10

131209C91

SWITCH

ASSY, turn signal & flasher, Lucas

1шт.

71485C1

PACKAGE

KIT, turn signal switch handle hardware

1шт.

11

121996C2

RECTIFIER

ASSY, network

1шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

#10NF x 1/2 znd p/hds mach

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

12

121818C1

RELAY

time delay

1шт.

13

390748R93

SWITCH

ASSY, auxiliary lighting

1шт.

14

107655C1

SOLENOID SWITCH

SWITCH ASSY, cab power solenoid

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

15

121613C1

IGNITION SWITCH

SWITCH ASSY, cranking motor solenoid, Replaces 545756R2

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

16

404398R1

CABLE ASSY.

CABLE ASSY, fuse housing to lighting switch

1шт.

17

107558C1

RESISTOR

RESISTANCE UNIT, 25 ohm, Replaces 534784R1

1шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

18

405209R1

CABLE

ASSY, park brake ground

1шт.

19

121628C1

BUZZER

electric audible, alarm

1шт.

20

404352R1

SWITCH

ASSY, park brake light

1шт.

21

71224C1

BRACKET

ASSY, park brake switch

1шт.

180084

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

5/16 x 1-5/8 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

138489

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

1шт.

588736R1

SPACER

1/4 x .812 std pipe

1шт.

22

PLATE, dash access, Refer to grp 11

1шт.

23

397940R93

SWITCH

SWTICH ASSY, horn button

1шт.

160046

SCREW,Cross Pan Hd, #10 - 32 x 1/2"

2шт.

138479

PLUG

WASHER, no. 10 ext tooth lock

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

24

376852R91

HOUSING

ASSY, fuse, Only serviceable item is

3шт.

356445R91

KNOB

1шт.

25

9428126

FUSE,20 Amp, Type SFE

cartridge type, 20 amp, yellow

2шт.

25

9426334

FUSE,10 Amp, Type 3AG

cartridge type, 10 amp, red

1шт.

26

121836C1

RELAY

control

1шт.

27

121896C1

HOLDER

control relay

1шт.

131044

LOCK WASHER

Lock, #6

1шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

1шт.

28

121835C1

SWITCH

ASSY, toggle, light test

1шт.

29

109369C92

LAMP

LIGHT ASSY, park brake, Replaces 107595C91, Only serviceable items are

1шт.

200557H1

BULB,C2V, #1815, 14V

LAMP

1шт.

71652C1

LENS

1шт.

30

121815C91

LAMP

LIGHT ASSY, air filter

1шт.

31

121770C2

TRANSMITTER

MODULE ASSY, low coolant level

1шт.

24377R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW, no. 8-18 x 1/2 p/hdcr tap

2шт.
