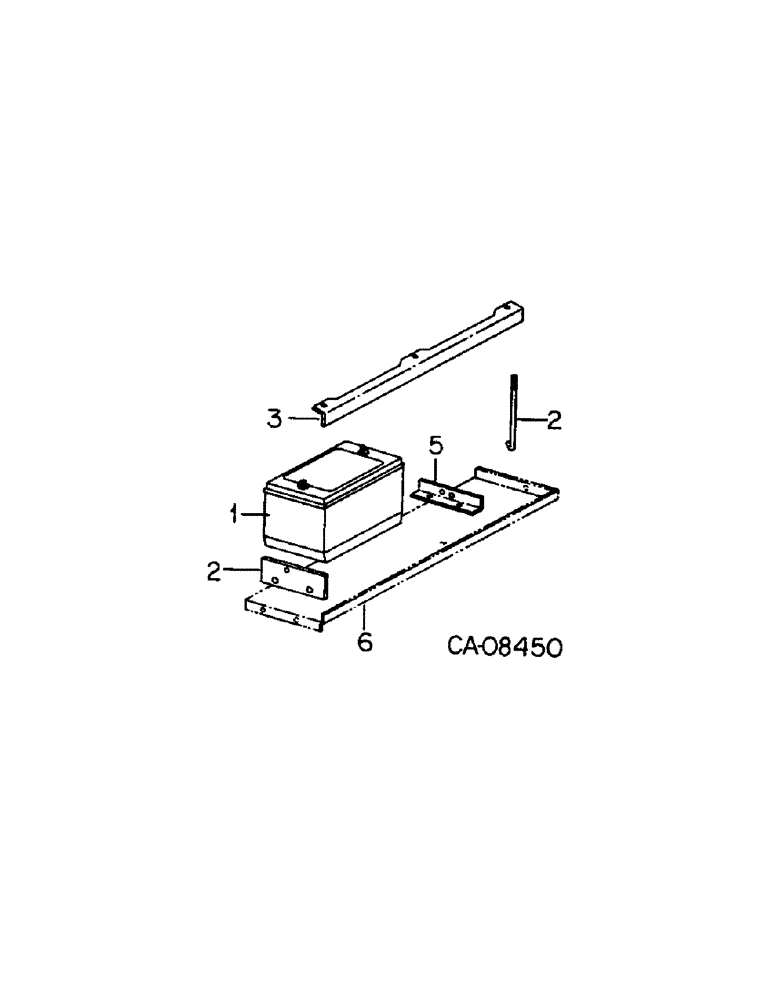

Запчасти Case IH 4586 (08-04) - ELECTRICAL, BATTERY AND MOUNTING, 4586 TRACTORS WITH SERIAL NO. 1500 AND BELOW (06) - ELECTRICAL

1

IHCLM31S

BATTERY, maintenance free

4шт.

522639C1

NUT

battery terminal special

8шт.

2

377837R1

ROD

battery hold down

6шт.

7500032

BUSHING

NUT, 5/16 wing

6шт.

3

127627C1

ANGLE

battery hold down LH

1шт.

3

127626C1

ANGLE

battery hold down RH

1шт.

4

127625C1

LARGE PLATE

PLATE, battery hold

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

8шт.

5

75403C1

ANGLE

battery separator, Replaces 127623C1 & 127624C1

2шт.

6

TRAY ASSY, battery, Part of front frame, Refer to front frame listing, grp 9

1шт.
