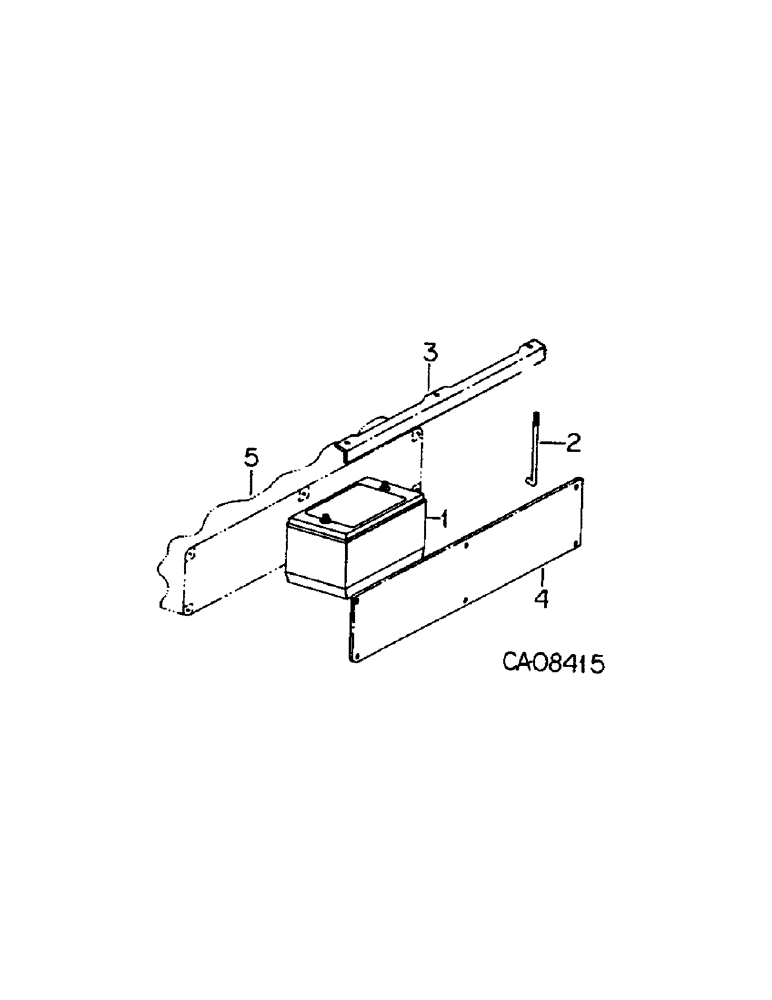

Запчасти Case IH 4586 (08-04[A]) - ELECTRICAL, BATTERY AND MOUNTING, 4586 TRACTORS WITH SERIAL NO. 1501 AND ABOVE (06) - ELECTRICAL

1

IHCLM31S

BATTERY, maintenance free

3шт.

522639C1

NUT

battery terminal special

6шт.

2

134796C1

ROD

battery hold down

5шт.

7500032

BUSHING

NUT, 5/16 wing

5шт.

3

134798C1

ANGLE

battery hold down

2шт.

4

134793C1

COVER

battery box

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

12шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

12шт.

5

BOX, battery, Part of front frame, Refer to front frame listing, grp 9

1шт.
