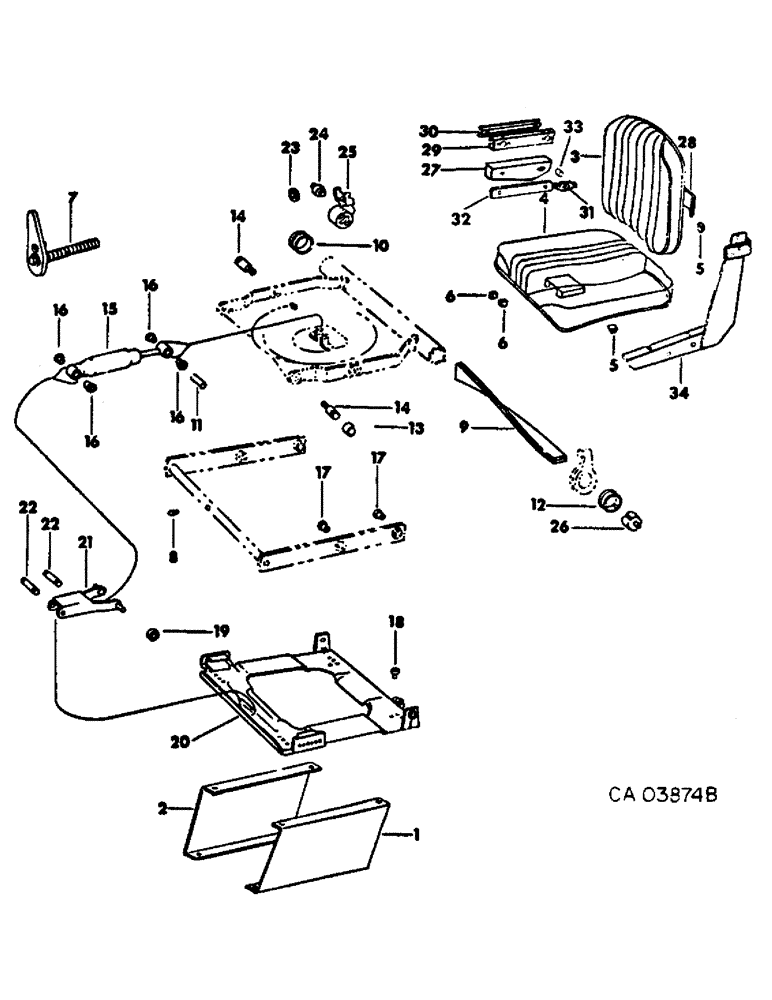

Запчасти Case IH 4586 (13-17) - CAB AND SUPERSTRUCTURE, DELUXE SEAT AND SUPPORTS (05) - SUPERSTRUCTURE

114251C91

SEAT ASSY.

SEAT ASSY, 4568 tractor, Consist of 5 through 34

1шт.

SEAT ASSY, w/arm rests, 4586 tractors, Consists of ref nos 3 thru 34

1шт.

1

114216C1

SUPPORT

seat LH

1шт.

2

114217C1

SUPPORT

seat RH

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 znd

4шт.

120376

NUT,5/16"-18, G5

4шт.

3

69150C1

CUSHION

COVER ASSY, back cushion, 4568 tractor

1шт.

3

132791C1

COVER ASSY, back cushion, 4586 tractor

1шт.

4

69151C1

CUSHION

COVER ASSY, seat cushion, 4568 tractor

1шт.

4

132790C1

COVER ASSY, seat cushion, 4586 tractor

1шт.

5

379385R1

CLIP

cushion fastener

12шт.

6

899420R1

BUMPER

seat frame

2шт.

7

937841C1

RATCHET

HANDLE ASSY, adjuster

1шт.

8

126098

FITTING

drive type lub

9шт.

9

899410R91

BAR, seat torsion, set

1шт.

10

899401R1

BUSHING

seat lever, right

1шт.

11

899406R1

PIN

shock absorber rear mtg

1шт.

12

899400R1

BUSHING

seat lever, left

1шт.

13

899402R91

BEARING ASSY

ROLLER W/BUSHING

4шт.

14

899403R1

STUD

PIN, seat adjuster roller

6шт.

15

899845R91

SHOCK ABSORBER

ABSORBER W/PIN, shock

1шт.

16

565518R1

FLANGE

BUSHING, shock absorber

4шт.

17

899397R1

FLANGE

BUSHING, seat adj roller

4шт.

18

899422R1

BUMPER

seat base

2шт.

19

899418R91

ROLLER

W/BUSHING, seat

2шт.

20

193653R1

FLANGED BEARING,0.506" ID x 0.753" OD x 0.562"

BUSHING, seat stabilizer

2шт.

21

899404R91

KIT

LEVER ASSY, shock absorber

1шт.

22

899405R1

SHAFT

PIN, shock absorber mtg and lever

2шт.

23

899417R1

WASHER

flat

1шт.

24

899416R1

PIN

seat adjuster

1шт.

25

899411R1

ADJUSTER

YOKE, torsion bar adjuster

1шт.

26

899408R1

RETAINER

torsion bar

1шт.

27

114253C1

COVER ASSY, LH arm pad

1шт.

27

114254C1

COVER ASSY, RH arm pad

1шт.

28

114255C1

STRAP, cross

1шт.

29

114256C1

CHANNEL, arm

2шт.

30

114258C1

RETAINER ASSY, channel arm

2шт.

31

400695R1

STOP

side arm

1шт.

32

400698R2

COVER

arm channel

2шт.

33

400696R1

BUSHING

SPACER, side arm pivot

2шт.

34

127614C1

PANEL ASSY, LH side

1шт.

34

127615C1

PANEL ASSY, RH side

1шт.

132833C1

BOLT, seat arm rest shoulder

2шт.

899846R91

PIN

KIT, shock absorber bushing, Consists of ref nos 16 and 22

1шт.

69900C91

SAFETY BELT

SAFETY BELT, 2", 4586 Tractors, Serial Range: -2500

1шт.

69900C91

SAFETY BELT

SAFETY BELT, 2", All 4568 Tractors

1шт.

69901C1

SAFETY BELT

PLATE, reinforcement

2шт.

181670

CLIP,Hex, 0.438-20 x 1-1/2", Gr 5

BOLT, 7/16-NF x 1-1/2 type 5

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

271506

DISC

7/16-NF type 5

2шт.
