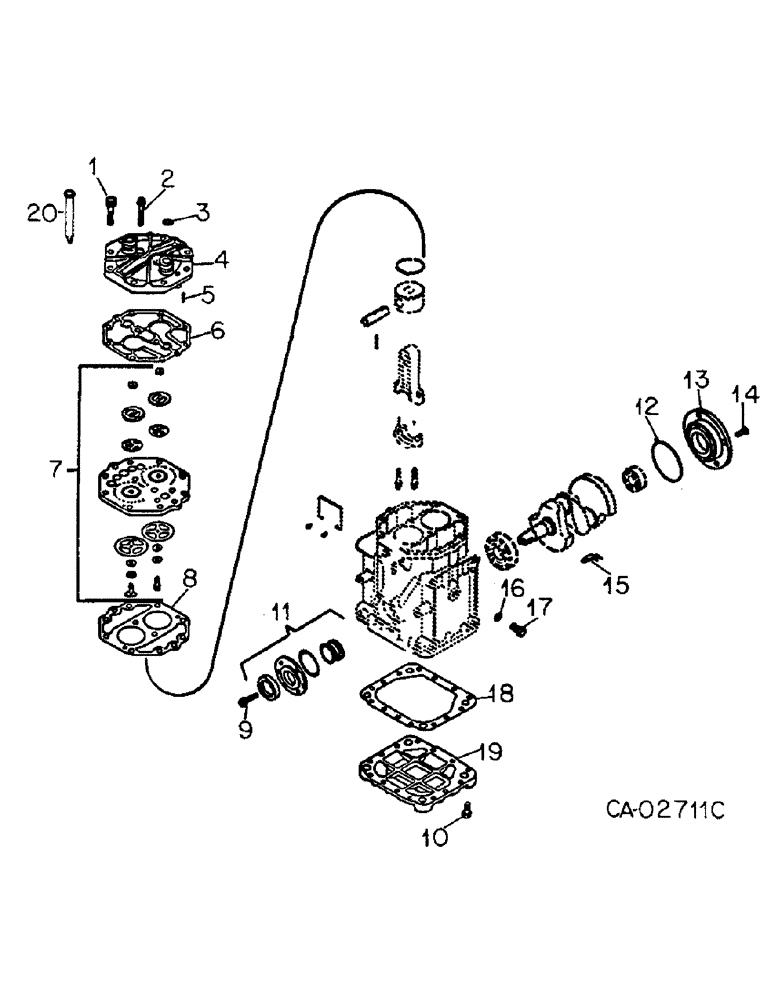

Запчасти Case IH 4586 (13-16) - CAB AND SUPERSTRUCTURE, COMPRESSOR (05) - SUPERSTRUCTURE

118250C91

COMPRESSOR

COMPRESSOR ASSY, air conditioner

1шт.

1924006C2

REMAN-A/C COMPRESSOR

Reman For New PN 118250C91

1шт.

1924007C1

CORE-A/C COMPRESSOR

Return Number

1шт.

1

20641R1

SCREW

SCREW, 5/16-18 x 1-3/8 hex-hd mach

8шт.

2

374805R1

12 PT SCREW,Flg, 5/16" - 18 x 1 1/2", Gr 8

SCREW, 5/16-18 x 1-1/2 znd 12 pt hd

2шт.

3

118469C1

GASKET

GASKET, service valve, Replaces 431762C1

2шт.

4

479011C91

KIT

KIT, cylinder head, Consists of ref. nos. 6 & 8

1шт.

5

21247R1

DOWEL,1/8" x 3/4"

PIN, 1/8 x 3/4 dowel

2шт.

6

431756C1

CYLINDER HEAD GASKET

GASKET, head

1шт.

7

394430C91

KIT

KIT, valve plate, Consists of ref. nos. 6 & 8

1шт.

8

431761C1

CYLINDER HEAD GASKET

GASKET, valve plate

1шт.

9

443874

BRACKET

10-24 x 1/2 znd hex-hd mach

6шт.

10

21024R1

SCREW

SCREW, 1/4-20 x 5/8 slt hex-hd mach

14шт.

11

592263C91

SEAL KIT

KIT, shaft seal front, Replaces 428606C91

1шт.

12

431763C1

O-RING,0.07" Thk x 3.239" ID, -42, Cl 6, 90 Duro

SEAL, o-ring

1шт.

13

431757C1

HOUSING

HOUSING, rear bearing

1шт.

14

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

SCREW, 1/4-20 slt-fil-hd cr-rec mach

4шт.

15

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

WOODRUFF KEY, #6, 5/32" x 5/8", HT

1шт.

16

431764C1

SEAL,8.484mm ID x 1.778mm Width

SEAL, o-ring oil plug

2шт.

17

445073

HYD CONNECTOR

3/8-24 C-Z hex outside hd filler

2шт.

18

431760C2

GASKET

GASKET, base

1шт.

19

431755C1

PLATE

SPARE PART PLATE, base

1шт.

20

118210C1

FILTER SCREEN

SCREEN, suction filter, Used w/118250C91

1шт.
