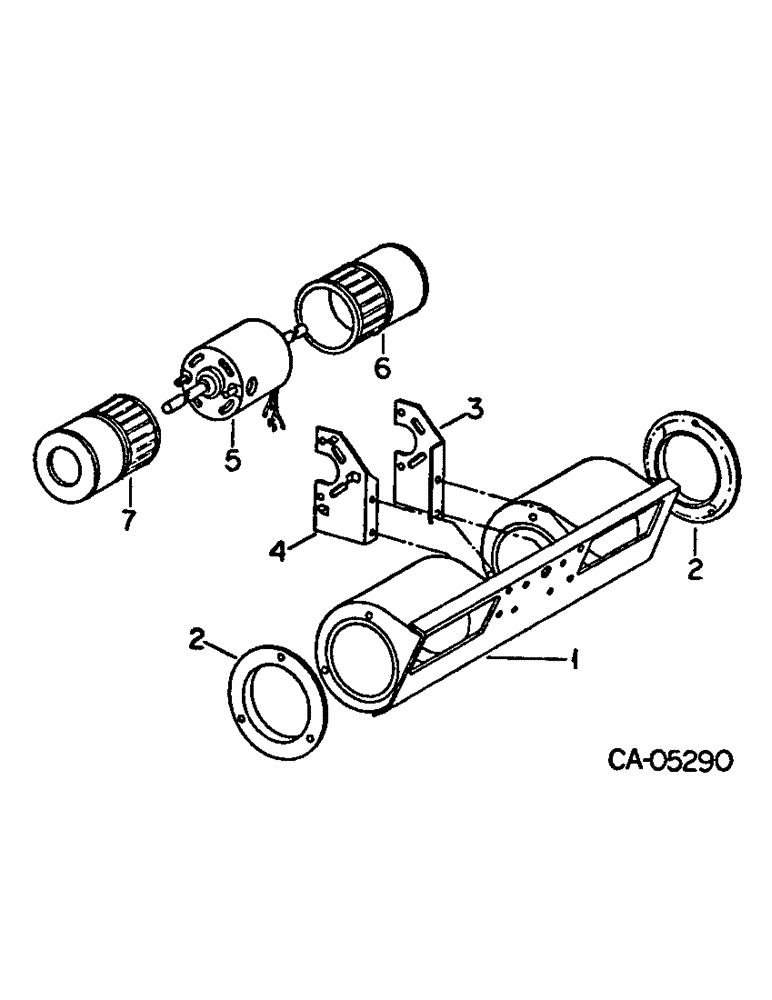

Запчасти Case IH 4586 (13-13) - CAB AND SUPERSTRUCTURE, BLOWER ASSY P/N 134493C91 (05) - SUPERSTRUCTURE

134493C91

BLOWER

ASSY, Optional w/68661C1

1шт.

1

HOUSING ASSY, weldment, Not serviced separately, Order blower assy, 134493C91

1шт.

2

65010C1

RETAINER

inlet

2шт.

3

134496C1

SUPPORT

motor

1шт.

4

539019R2

SUPPORT

BRACKET ASSY, RH

1шт.

5

134494C1

MOTOR

blower

1шт.

6

134499C1

RIM

WHEEL, blower LH

1шт.

7

134498C1

RIM

WHEEL, blower RH

1шт.

139010

SET SCREW,Hex Soc, 1/4"-28 x 5/16"

SCREW, 1/4 NF x 5/16 pln c/pt hdl/hs set

2шт.
