Запчасти Case IH 4586 (13-12) - CAB AND SUPERSTRUCTURE, BLOWER ASSY. P/N 68661C1 (05) - SUPERSTRUCTURE

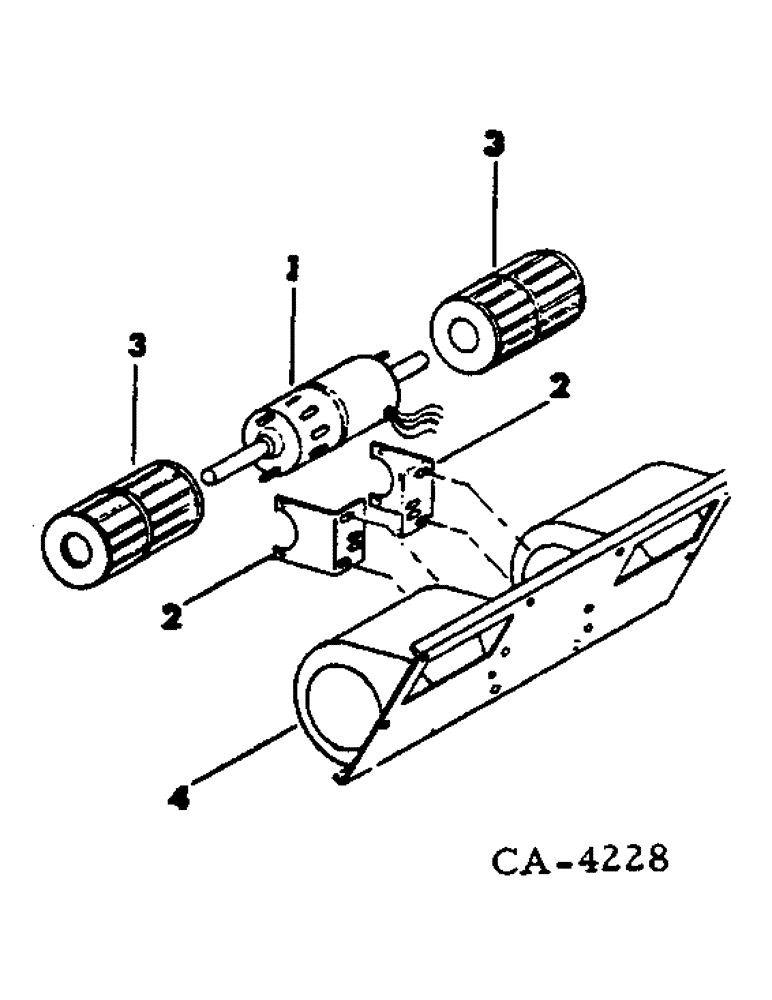

Схема запчастей Case IH 4586 - (13-12) - CAB AND SUPERSTRUCTURE, BLOWER ASSY. P/N 68661C1 (05) - SUPERSTRUCTURE
4
2
1
3
3
2

Артикул

Название

Примечание

Количество

68661C1

BLOWER

ASSY, Optional with 134493C91

1шт.

1

70902C1

HEAT CONTACTOR

MOTOR, blower

1шт.

2

70900C1

BRACKET, blower motor mtg.

2шт.

3

70901C1

IMPELLER

blower

2шт.

139010

SET SCREW,Hex Soc, 1/4"-28 x 5/16"

SCREW, 1/4-28 x 5/8 hex-soc-hd cup pointed set

2шт.

4

HOUSING, blower, Not serviced separately, Order blower assy, 68661C1

1шт.

5

239807R1

ELECTRO/HYD CONTACT

TERMINAL, blower

1шт.

255057C1

CONNECTOR, ELEC

CONNECTOR BODY, blower

1шт.

Выбрано товаров: 8
