Запчасти Case IH 4586 (13-04) - CAB AND SUPERSTRUCTURE, CAB ASSEMBLY, 4586 TRACTOR (05) - SUPERSTRUCTURE

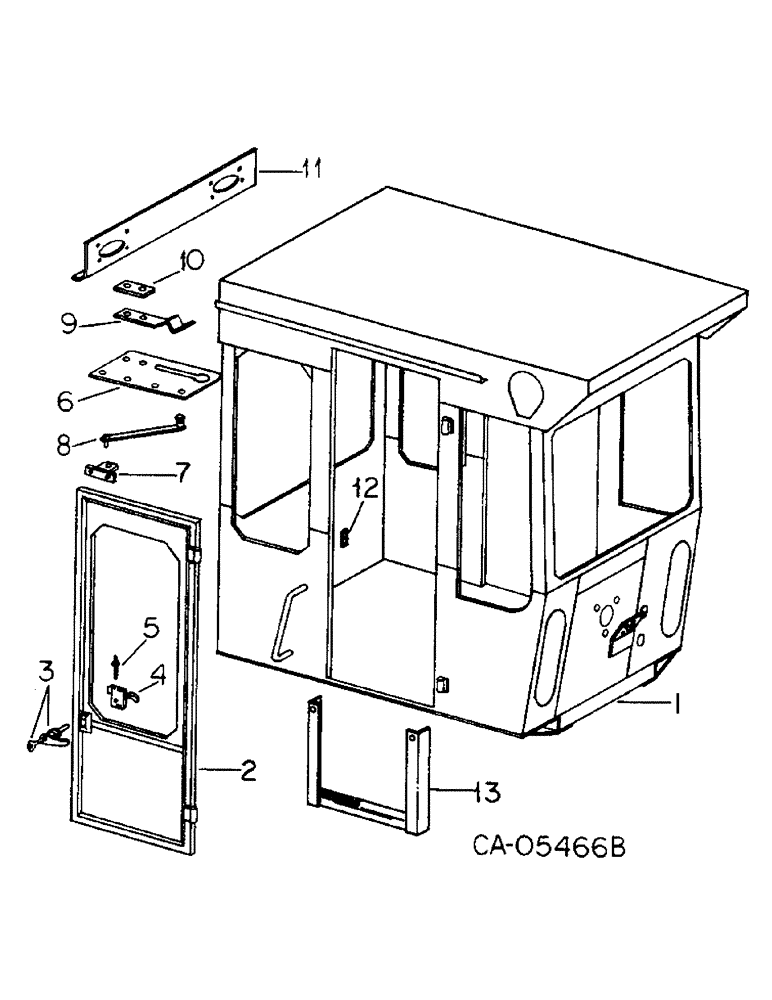

Схема запчастей Case IH 4586 - (13-04) - CAB AND SUPERSTRUCTURE, CAB ASSEMBLY, 4586 TRACTOR (05) - SUPERSTRUCTURE
1
3
2
6
5
4
9
13
1
10
7
12
8
11

Артикул

Название

Примечание

Количество

1

127483C93

CAB

ASSY, Serial Range: -1500

1шт.

1

138871C4

CAB

ASSY, Start Serial: 1501

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

8шт.

28432R1

SCREW

5/16 x 3/8 PHC hdl/hs set

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

3шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

28190R1

BOLT

3/8 x 2-1/4 PHC type 5 brake pedal stop

1шт.

28191R1

NUT

3/8 PHC jam type 5 brake pedal stop

1шт.

70157C1

NUT

FITTING, 3/8-16

4шт.

2

74287C1

DOOR

ASSY, LH, Serial Range: 503-1500

1шт.

2

70897C1

DOOR

ASSY, LH, Serial Range: 502-502

1шт.

2

141873C1

DOOR ASSY.

DOOR ASSY, LH, Start Serial: 1501

1шт.

2

141874C1

DOOR ASSY.

DOOR ASSY, RH, Start Serial: 503

1шт.

2

70898C1

DOOR

ASSY, RH, Serial Range: -502

1шт.

3

147195C1

HANDLE

ASSY, outside door

1шт.

Replaces 70092C1 by ordering two handles with serial no. 2500 and below

1шт.

138954C1

SHIM

cab door inside latch

6шт.

120391

WASHER,#10

.219 x .500 x .036

4шт.

4

70042C1

LATCH

HANDLE ASSY, RH door inside

1шт.

4

70043C1

LATCH

HANDLE ASSY, LH door inside

1шт.

5

142089C1

RIVET

3/16 pop

2шт.

6

129484C1

LARGE PLATE

PLATE, door latch mtg

2шт.

77543C1

SCREW,5/16" - 18 x 3/4"

5/16-18 x 3/4 PHC h/whd tap

8шт.

77543C1

SCREW,5/16" - 18 x 3/4"

5/16-18 x 3/4 PHC h-whd tap

1шт.

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

SCREW, 5/16-18 x 3/4 hex-hd tap

4шт.

7

129485C1

BRACKET

ASSY, door latch

2шт.

77543C1

SCREW,5/16" - 18 x 3/4"

5/16-18 x 3/4 PHC h/whd tape

4шт.

8

129488C1

ARM

ASSY, door latch

2шт.

495-21044

WASHER,3/8"

(.438 x 1.00 x .064) 3/8"

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

9

129492C1

SPRING

door latch

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

10

129493C1

LARGE PLATE

BAR, door latch, plate

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

11

129382C3

PANEL

cab rear cover

1шт.

77544C1

SCREW,1/4" - 20 x 3/4"

1/4-20 x 3/4 PHC h/whd tap

4шт.

12

70921C1

STOP ASSY, door latch, Serial Range: -1634

2шт.

328400C1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW, 1/4-14 x 3/4 CAD C/R S/D tap

4шт.

12

392801R2

CATCH

PLATE, double stop striker, Start Serial: 1635

2шт.

77584C1

SELF-TAP SCREW,Oval, 1/4" - 20 x 3/4", Gr 2

1/4-20 x 3/4 o/hdcr tap

4шт.

13

110142C2

STEP

ASSY, mounting

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

1258482C91

PACKAGE, strike plate service, Consists of

1шт.

142168C1

LARGE PLATE

PLATE, striker

2шт.

77544C1

SCREW,1/4" - 20 x 3/4"

1/4-20 x 3/4 PHC h/whd tap

4шт.

120391

WASHER,#10

.219 x .500 x .036

4шт.

134919C1

HANDLE, door

2шт.

55077C1

RIVET

Mandrel

1шт.

INSTRUCTIONS, installing

1шт.
