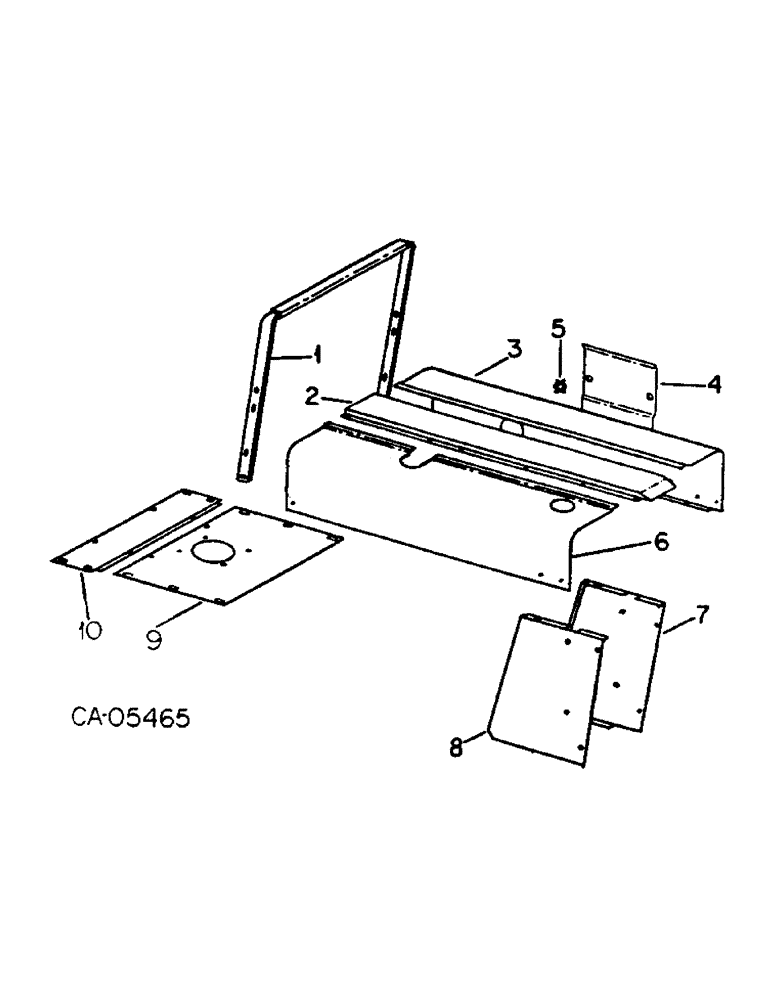

Запчасти Case IH 4586 (13-02) - CAB AND SUPERSTRUCTURE, HOOD AND PANELS, 4586 TRACTOR (05) - SUPERSTRUCTURE

1

127536C1

SUPPORT

ASSY, rear hood, mount

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

4шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 and

4шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 CAD lock

4шт.

70137C1

NUT

SERT, 5/16-18

2шт.

2

129124C1

HOOD

ASSY, top

1шт.

3

129121C1

HOOD

ASSY, left side

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 hex-hd

9шт.

495-81001

WASHER,5/16"

.375 x 1.125 x .051

9шт.

4

105164C1

COVER

hood access

1шт.

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW, frt hood access cover

2шт.

5

376787R1

WASHER

RETAINER, frt hood access cover screw

2шт.

6

129123C2

HOOD

right side

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 hex-hd cap

10шт.

446470

BRAKE FLUID TANK

.375 x 1.125 x .051 znd pln

10шт.

7

109898C1

SKIRT

hood LH

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 hex-hd cap

5шт.

495-81001

WASHER,5/16"

.375 x 1.125 x .051 znd pln

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120376

NUT,5/16"-18, G5

3шт.

8

109897C1

SKIRT

hood RH

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x3/4 hex-hd cap

5шт.

446470

BRAKE FLUID TANK

.375 x 1.125 x .051 znd pln

4шт.

70157C1

NUT

SERT, 3/8-16

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120376

NUT,5/16"-18, G5

3шт.

9

71648C3

LARGE PLATE

PLATE ASSY, cab floor front

1шт.

448453

SCREW,Hex Hd, 1/4" x 1"

1/4-20 x 1 C-Z hex-hd cap

10шт.

10

71647C3

LARGE PLATE

PLATE ASSY, cab floor rear

1шт.

1017952R1

CAP

PLUG, plastic

2шт.

1017876R1

PLUG,Cap, .974" OD

plastic

1шт.

448453

SCREW,Hex Hd, 1/4" x 1"

1/4-20 x 1 C-Z hex-hd cap

6шт.
