Запчасти Case IH 4586 (07-29) - DRIVE TRAIN, AXLE MOUNTS (04) - Drive Train

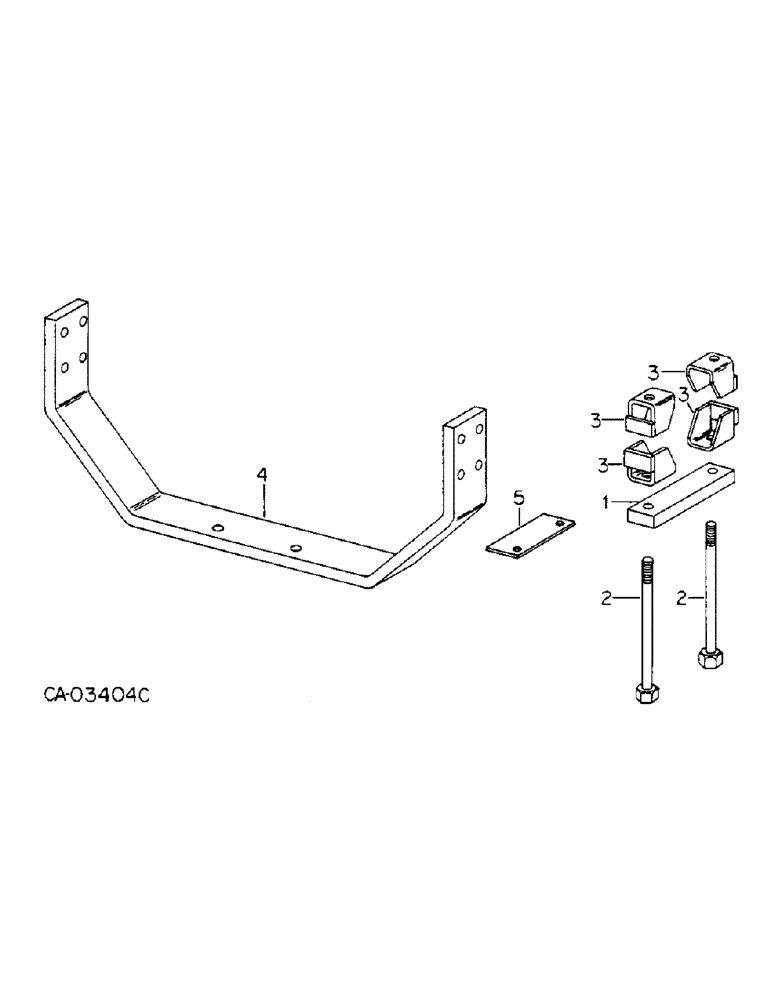

Схема запчастей Case IH 4586 - (07-29) - DRIVE TRAIN, AXLE MOUNTS (04) - Drive Train
1
3
3
2
3
4
5
3
2

Артикул

Название

Примечание

Количество

1

132935C1

STRAP

axle mtg, Replaces 68578C1

4шт.

2

68579C2

BOLT

ASSY, axle

8шт.

390311C1

WASHER,15/16" x 1 3/4" x .134", HDN

.938 x 1.750 x .134 hdn

8шт.

274641

SCREW

NUT, 7/8-NF cad p/t lock type 8

8шт.

3

132934C1

CHANNEL

ASSY, axle clamp, Replaces 68580C1

16шт.

Quantities shown are per axle.

1шт.

4

68581C1

BRACE

SUPPORT ASSY, front axle

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 type 5

2шт.

86729275

LOCK WASHER,5/8 0.634 CST ZND

WASHER, LOCK, 5/8"

2шт.

NLS

NO LONGER SERVICED

21/32 x 1-5/16 x .074 znd

2шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

8шт.

116124

LOCK WASHER,3/4"

3/4"

8шт.

427362

NUT, 3/4-10 phc hex.

8шт.

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

.812 x 1.500 x .134 hdn

8шт.

4

145310C1

SUPPORT

ASSY, rear axle

1шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

5/8 x 2-1/2 type 5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

280954

NUT,3/4"-10, G5

8шт.

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

.812 x 1.500 x .134 hdn

8шт.

5

138978C1

SHIM

BAR, axle brace, 1 or as required, 4586 tractors, Serial Range: -1540

1шт.

Выбрано товаров: 22
