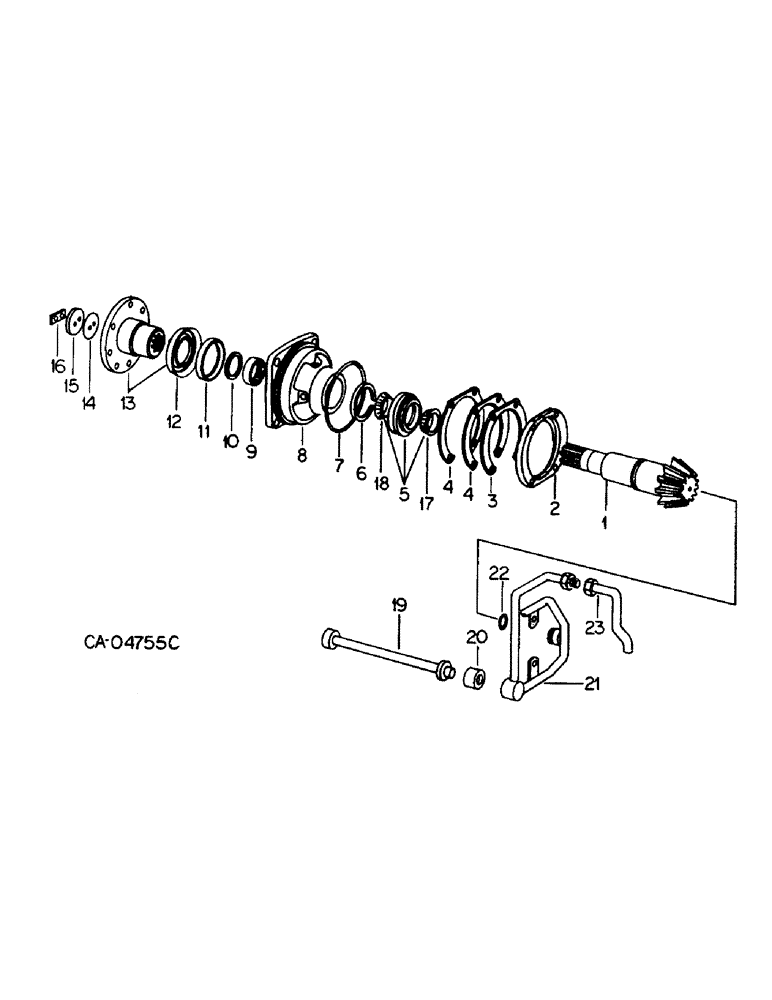

Запчасти Case IH 4586 (07-27) - DRIVE TRAIN, PINION BEARING FRONT (04) - Drive Train

1

SHAFT, drive bevel pinion, Not serviceable separately, Order bevel gear set/110462C92

1шт.

2

146893C1

RETAINER

ASSY, pinion shaft rear brg, Replaces 529464R1

1шт.

380286R1

BOLT,Flg, 1/2" - 13 x 1 1/2"

SCREW, 1/2-13 x 1-1/2 12-pt flange

4шт.

PINION SHAFT BRG CAGE SCREW

1шт.

3

380283R2

SHIM

pinion shaft brg

1шт.

4

380284R2

SHIM

pinion shaft brg

2шт.

5

110459C91

TAPERED BEARING,63.5mm ID x 133.4mm OD x 70.26mm W

ASSY, bevel pinion, Includes ref. nos. 17 & 18

1шт.

6

110425C1

RING, SNAP

RING, pinion brg retaining, .163

1шт.

6

110426C1

RING, SNAP

RING, pinion brg retaining, .167

1шт.

6

110427C1

RING, SNAP

RING, pinion brg retaining, .171

1шт.

6

110428C1

RING, SNAP

RING, pinion brg retaining, .175

1шт.

6

110429C1

RING, SNAP

RING, pinion brg retaining, .179

1шт.

6

138777C1

RING, SNAP

RING, pinion brg retaining, .177

1шт.

6

138778C1

RING, SNAP

RING, pinion brg retaining, .181

1шт.

6

138779C1

RING, SNAP

RING, pinion brg retaining, .183

1шт.

7

3061207R1

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

6-1/4 x 6-1/2 x 1/8 pinion shaft cage

1шт.

8

67913C1

CAGE

pinion shaft front brg

1шт.

26314R1

BOLT, 7/16 x 1 phc p/t type 8

4шт.

9

112822R91

NEEDLE BEARING,Needle, 50.78mm ID x 60.31mm OD x 25.4mm W

pinion shaft front

1шт.

10

698553R1

SNAP RING,#175, Ext

Ring, Snap, , companion flange, 4568 tractors #175, Ext, Serial Range: -8214

1шт.

11

67914C1

SEAL

pinion yoke

1шт.

12

67926C1

SHIELD

companion flange

1шт.

13

104900C91

YOKE

ASSY, axle input, 4 bolt holes, all 4568 tractors

1шт.

13

104900C91

YOKE

ASSY, axle input, 4 bolt holes, 4586 tractors, Start Serial: 1501

1шт.

13

127310C91

YOKE

ASSY, axle input, 8 bolt holes, 4586 tractors, Serial Range: -1500

1шт.

14

67916C1

GASKET

companion flange washer

1шт.

15

67917C1

WASHER

companion flange

1шт.

16

67918C1

LARGE PLATE

PLATE, companion flange lock

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

2шт.

17

BEARING ASSY, bevel pinion cone, Not serviced separately, Order 110459C91 bearing assy

1шт.

18

BEARING ASSY, bevel pinion cone, Not serviced separately, Order 110459C91 bearing assy

1шт.

19

65440C2

TUBE,7.825" Length

ASSY, trans lube dumbell

1шт.

20

114210C1

BUSHING

COUPLER, trans lube tube

1шт.

21

67742C1

TUBE

ASSY, trans lube

1шт.

380286R1

BOLT,Flg, 1/2" - 13 x 1 1/2"

lube tube mtg bracket

2шт.

406579R1

WASHER

lube tube mtg bracket

2шт.

22

67745C1

SEALING RING

pinion lube fitting

1шт.

23

67748C2

TUBE

ASSY, diff ret upper lube

1шт.
