Запчасти Case IH 4586 (07-15) - DRIVE TRAIN, TRANSFER CASE (04) - Drive Train

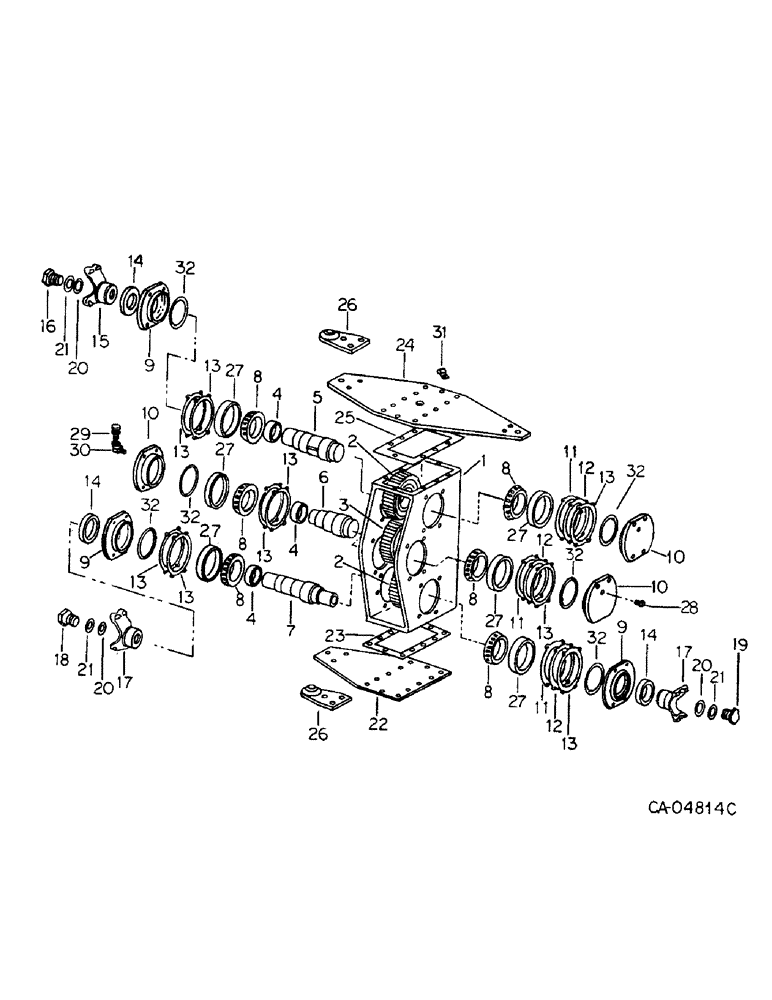

Схема запчастей Case IH 4586 - (07-15) - DRIVE TRAIN, TRANSFER CASE (04) - Drive Train
9
2
14
27
8
13
14
32
27
10
12
5
13
11
13
18
25
10
3
11
27
13
1
19
29
27
10
28
26
23
22
32
31
21
32
14
8
32
9
17
20
8
15
13
20
4
8
21
12
13
13
13
20
32
9
7
24
12
8
27
4
6
4
16
2
11
27
17
8
13
26
30
21
32

Артикул

Название

Примечание

Количество

71920C92

CASE

ASSY, transfer, Replaces 104934C91

1шт.

1

71657C2

NO LONGER SERVICED

CASE, transfer

1шт.

2

71658C1

GEAR

top and bottom

2шт.

3

71659C1

GEAR

middle, 4568 tractors, Serial Range: -8538

1шт.

117996

WOODRUFF KEY,#24, 1/4" x 1 1/2", HT

KEY, 1/4 x 1-1/2 tractors, Serial Range: -8538

1шт.

3

71918C1

GEAR

middle, Used on 4568 tractors, Start Serial: 8539

1шт.

3

71918C1

GEAR

middle, Used on 4586 tractor

1шт.

4

71676C1

SPACER

gear middle, Serial Range: -8538

1шт.

4

71675C1

SPACER

gear top & bottom, Serial Range: -8538

1шт.

4

71919C1

SPACER

gear top, middle and bottom, 4568 tractors, Start Serial: 8539

1шт.

4

71919C1

SPACER

gear top, middle and bottom, 4586 tractor

1шт.

5

71915C1

SHAFT

top, Replaces 71677C1, Also furnish 2 spacers 71919C1, Serial Range: -8538

1шт.

6

71678C1

SHAFT

middle, 4568 tractors, Serial Range: -8538

1шт.

6

71916C1

SHAFT

middle, 4568 tractors, Start Serial: 8539

1шт.

6

71916C1

SHAFT

middle, 4586 tractor

1шт.

7

71917C1

SHAFT

bottom, Replaces 71679C1, Also furnish 2 spacers 71919C1, For 4568 tractors, Serial Range: -8538

1шт.

8

71704C91

BEARING ASSY,64.99mm ID x 39mm W

cone

6шт.

9

71681C2

CAGE

bearing, hub

3шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 znd hex-hd cap

12шт.

120384

WASHER,1/2"

LOCK, , 4568 tractor 1/2"

12шт.

27406R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, 1/2-13 x 1-3/4 znd pt hex-hd cap grade 8, 4586 tractor

12шт.

10

71680C2

CAP

bearing

3шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 znd hex-hd cap

12шт.

120384

WASHER,1/2"

LOCK, , 4568 tractor 1/2"

12шт.

27406R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, 1/2-13 x 1-3/4 znd pt hex-hd cap grade 8, 4586 tractor

12шт.

11

71682C1

SHIM

bearing cage, .005, 6 or as required, 4568 tractor

1шт.

11

129027C1

SHIM

bearing cage, .005, 6 or as required, 4586 tractor

1шт.

12

71683C1

SHIM

bearing cage, .0075, 6 or as required, 4568 tractor

1шт.

12

129028C1

SHIM

bearing cage, .0075, 6 or as required, 4586 tractor

1шт.

13

71684C1

SHIM

bearing cage, .020, 6 or as required, 4568 tractor

1шт.

13

129029C1

SHIM

bearing cage, .020, 6 or as required, 4586 tractor

1шт.

14

338549R91

SEAL

bearing cage

3шт.

15

104929C1

FORK

YOKE, top end

1шт.

16

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

17

104930C2

FORK

YOKE, bottom

2шт.

18

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

19

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20

127443C1

GASKET

drive yoke

3шт.

21

127444C1

WASHER

drive yoke

3шт.

22

71686C1

LARGE PLATE

PLATE BOTTOM LINK COVER

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 type 5

12шт.

492-11062

BEARING WASHER,5/8"

WASHER, 1/8 znd reg lock

12шт.

444577

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG, 1/4-18 C-Z sq-hd pipe

1шт.

23

71685C2

GASKET

bottom link

1шт.

24

71687C1

LARGE PLATE

PLATE, top link cover

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 type 5

12шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

25

71685C2

GASKET

top link

1шт.

26

69091C1

PLATE ASSY.

PLATE ASSY, transfer case bearing, Also order attaching hardware

2шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

6шт.

NLS

NO LONGER SERVICED

.812 x 1.469 x .134 znd

6шт.

9413971

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 cad hex

6шт.

27

71705C1

BEARING CUP,120mm OD x 32mm W

6шт.

28

20972R1

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG, 3/8-18 auto sq-hd pipe

2шт.

29

91916R91

BREATHER,3/8"-18 NPT, Short, w/washer

FITTING, 3/8 ptf breather type

1шт.

30

111316

ELBOW

90 deg street

1шт.

31

383622R1

CLIP

1шт.

32

285253R1

O-RING,0.139" Thk x 5.484" ID, -254, Cl 5, 75 Duro

5-1/2 x 5-3/4 x 1/8

6шт.

Выбрано товаров: 61
