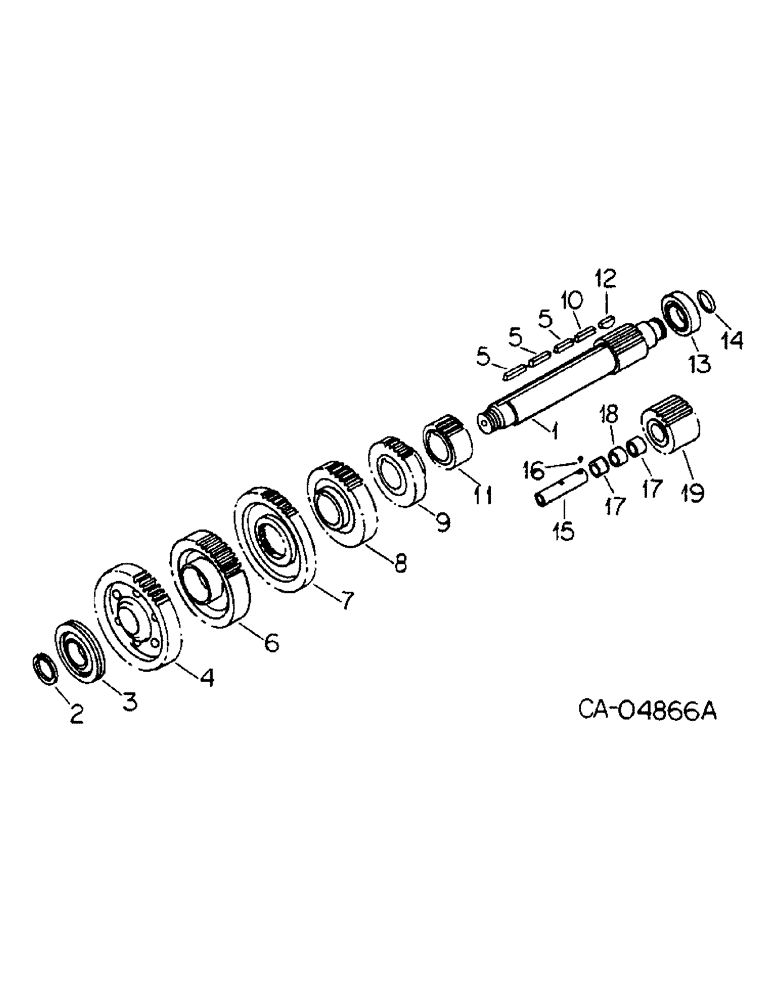

Запчасти Case IH 4586 (07-09) - DRIVE TRAIN, COUNTERSHAFT AND REVERSE SHAFT (04) - Drive Train

1

487397C91

SHAFT

COUNTERSHAFT ASSY W/SNAP RING, 15T, Replaces 73178C1

2шт.

2

327058R1

RING, SNAP

RING, countershaft frt snap

2шт.

3

ST405

BALL BEARING,55mm ID x 120mm OD x 29mm W

BEARING, front

2шт.

4

432256C1

GEAR

low splitter, 54T

2шт.

5

411577C1

KEY, gear, 4568 tractors, Serial Range: -8855

6шт.

5

483314C1

KEY

gear, 4586 tractor, 4568 tractors, Start Serial: 8856

2шт.

6

432257C1

GEAR

high splitter, 49T

2шт.

7

399639C1

GEAR

PTO, 51T, 4568 tractors, Serial Range: -8855

2шт.

8

432260C1

GEAR

7th and 8th, 41T, 4568 tractors, Serial Range: -8855

2шт.

8

73179C1

GEAR

7th & 8th, 41T, 4568 tractors, Start Serial: 8856

1шт.

8

73179C1

GEAR

7th & 8th, 41T, 4586 tractor

1шт.

9

432259C1

GEAR

5th and 6th, 31T

2шт.

10

6215H

KEY

5th and 6th, 4568 tractors, Serial Range: -8855

2шт.

11

432258C1

GEAR

3rd and 4th, 20T

2шт.

12

126-148

WOODRUFF KEY,#29, 3/8" x 2 1/8", HT

KEY, 3rd and 4th

2шт.

13

401193C91

BEARING

rear

2шт.

14

399645C1

OIL SEAL

RING, rear bearing snap

2шт.

15

399646C1

SHAFT

reverse idler

2шт.

16

23208R1

BALL

reverse idler shaft

2шт.

17

321981R91

NEEDLE BEARING

reverse idler shaft

4шт.

18

399647C1

SPACER

bearing

2шт.

19

399618C1

GEAR

reverse idler, 21T

2шт.
