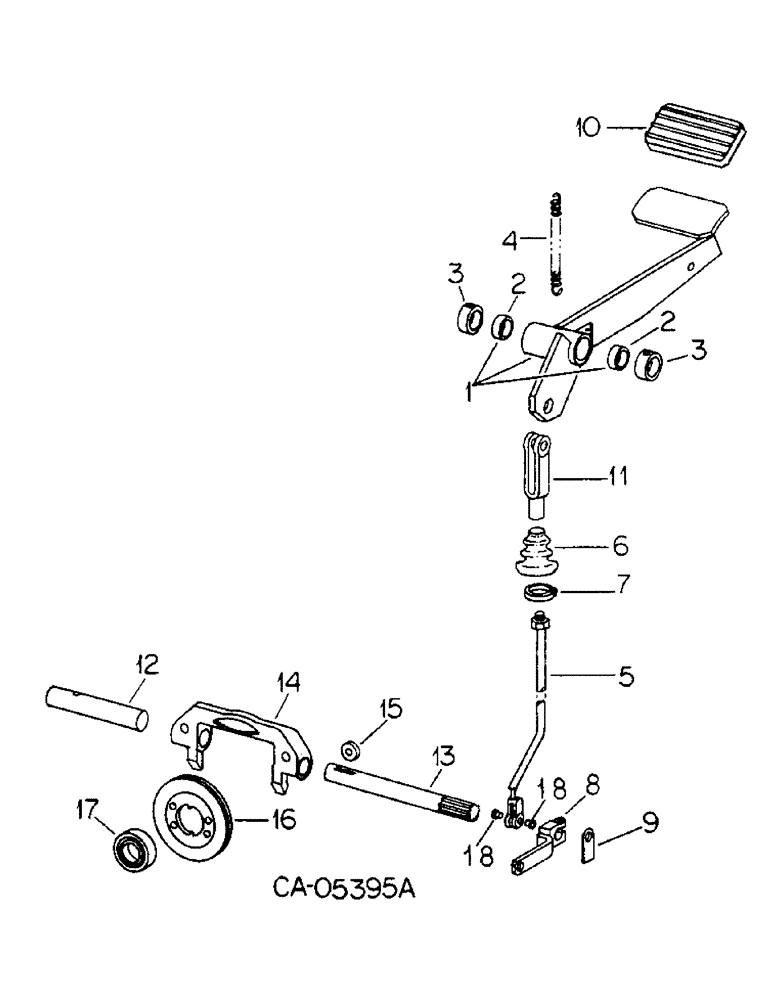

Запчасти Case IH 4586 (07-04) - DRIVE TRAIN, CLUTCH CONTROLS, 4586 TRACTORS (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
127473C2
PEDAL
ASSY, clutch w/brg
1шт.
2
124658C1
BUSHING
clutch pedal back
2шт.
3
610513R1
COLLAR
COLLAR
2шт.
115321
SET SCREW,Hex Skt, 5/16"-18 x 5/16"
SCREW, 5/16 x 5/16 pln c/pt hdl/hs set
2шт.
4
73960C1
SPRING
pedal return, Serial Range: -15000
1шт.
4
134581C1
SPRING
pedal return, Start Serial: 1501
1шт.
5
127469C1
ROD
ASSY, clutch, Serial Range: -15000
1шт.
25-158
JAM NUT,Jam, 1/2"-20, G5
1/2-NF jam type 5
1шт.
5
138820C1
ROD
ASSY, clutch, Start Serial: 1501
1шт.
124934
HOSE
1/2-NF jam type 5
1шт.
Q1436
PIN,3/8" x 2 9/16"
3/8 x 2.562 pln hd type 1
1шт.
137214
COTTER PIN
1/8" x 1-3/4"
1шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
2шт.
6
119011C1
BOOT
INSULATOR, rubber, boot
1шт.
7
279026R91
HOSE CLAMP,#36, 1.81/2.75 Type F Worm
CLAMP
1шт.
8
127467C1
LEVER
ASSY, clutch, Serial Range: -1500
1шт.
8
138830C1
LEVER
ASSY, clutch, Start Serial: 1501
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
180130
BOLT,Hex, 3/8" - 16 x 2", Gr 5
3/8 x 2 type 5
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
9
TAG, clutch adj. warning
1шт.
10
109656C1
BRAKE PAD
PAD, pedal
1шт.
11
144245
ADJUSTABLE CLEVIS,1/2"-20 x 3"
CLEVIS, 1/2-20 C-Z adj rod end
1шт.
138086
CLEVIS PIN,1/2" x 1.360"
PIN, CLEVIS, 1/2" x 1.360"
1шт.
103385
COTTER PIN,1/8" x 1"
PIN, SPLIT (COTTER), 1/8" x 1"
2шт.
12
697927R1
SHAFT
clutch release, short
1шт.
13
68816C1
SHAFT
clutch release, long
1шт.
14
13-79
YOKE
clutch release
1шт.
15
32796VA
WASHER
1шт.
180147
SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5
BOLT, 7/16 x 1-1/4 type 5
2шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
2шт.
16
DISC ASSY, brake, Refer to clutch listing in this group
1шт.
17
129134C91
BALL BEARING,1.1811" ID x 2.4409" OD x 0.9375"
ASSY, clutch pilot
1шт.
18
536647R1
INSULATOR
BUSHING, insulator, Start Serial: 1501
2шт.
Выбрано товаров: 34
