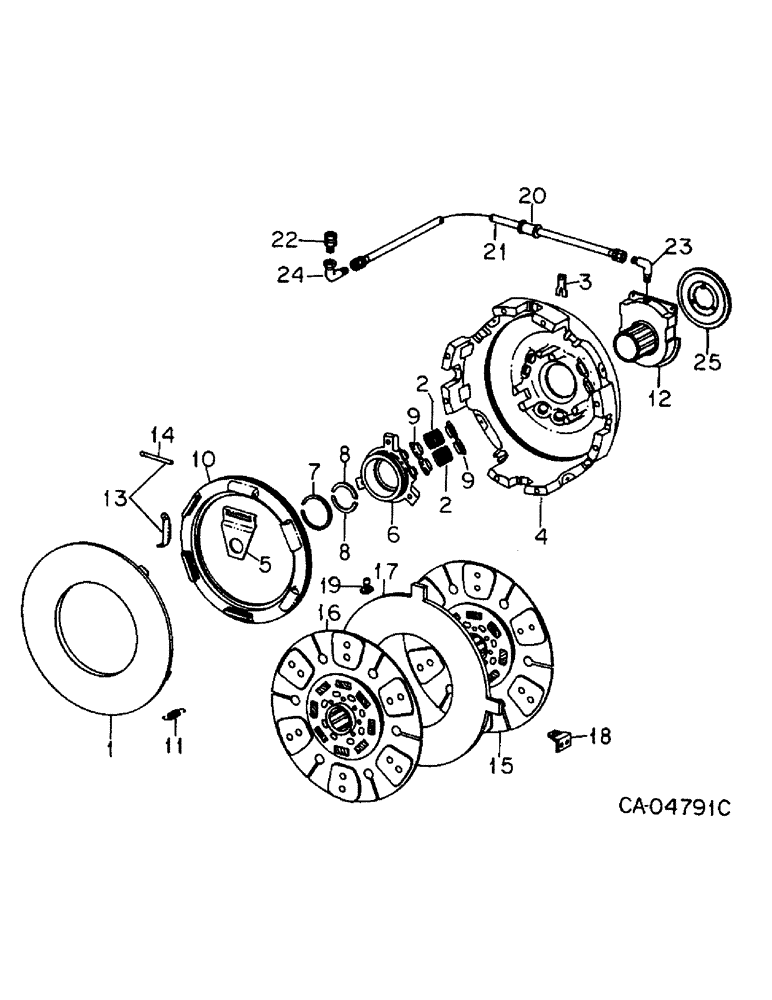

Запчасти Case IH 4586 (07-01) - DRIVE TRAIN, CLUTCH (04) - Drive Train

134894C92

CLUTCH

COVER ASSY, clutch pressure plate, 4568 tractor, Consists of ref. no. 1 through 19

1шт.

NLS

NO LONGER SERVICED

8шт.

1257903C91

CLUTCH

CLUTCH ASSY, clutch pressure plate, 4586 tractors, Consists of ref. nos. 1 thru 12, 15, 16, 17 & 25

1шт.

1997780C2R

REMAN-CLUTCH PLATE

Remanufactured Clutch Assembly 4586

1шт.

1997780C2C

CORE-CLUTCH PLATE

Return Part Number, Clutch Kit - 14 in.(pot style),

1шт.

1997779C1R

REMAN-CLUTCH PLATE

Remanufactured, Clutch Kit - 14 in., 1.75 in. hub diameter, AS, 3 paddle

1шт.

1

1997779C1C

CORE-CLUTCH PLATE

Return Part Number

1шт.

127545C91

COVER ASSY

COVER ASSY, pressure plate, Consists of ref. no. 1 thru 12

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

BOLT, 3/8 x 2-1/2 type 5

8шт.

399776C91

PLATE ASSY.

COVER ASSY, clutch pressure plate, 4568 tractor, Replaces 118965C91, Consists of ref. no. 1 thru 14, 18 and 19

1шт.

1

138953C1

PLATE

PLATE, clutch pressure, Replaces 399788C1

1шт.

2

399780C1

VALVE SPRING

SPRING, clutch pressure

6шт.

3

264474C1

STRIP

STRAP, lock

1шт.

443608

SUPPORT

SCREW, w/spring lock washer, 3/8-16 x 3/4 hex-hd mach

1шт.

4

399785C1

OIL SEAL

RING, flywheel, 4568 tractor

1шт.

4

138776C1

OIL SEAL

RING, flywheel, 4586 tractor, Replaces 69198C1 flywheel ring

1шт.

5

443331C1

LEVER, clutch, 4568 tractor

6шт.

5

134930C1

LEVER

LEVER, clutch, 4586 tractor

6шт.

6

399786C1

BOLT (SPREADER)

RETAINER, clutch release sleeve, 4568 tractor

1шт.

6

132690C1

RETAINER

RETAINER, clutch release sleeve, 4586 tractor

1шт.

7

400495C1

RING

RING, snap

1шт.

8

697951R1

RING

RING, clutch release sleeve

2шт.

9

399782C1

PIVOT

PIVOT, clutch spring

6шт.

10

399783C1

RING, adjusting, 4568 tractors

1шт.

10

134931C1

OIL SEAL

RING, adjusting, 4586 tractor

1шт.

11

444809C1

VALVE SPRING

SPRING, clutch return, Replaces 399784C1

4шт.

12

69199C91

BEARING ASSY

BEARING AND SLEEVE ASSY RELEASE W/FITTING, Replaces 71509C91

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

13

443644C91

KIT

PACKAGE, pin clip and pivot pin, 4568 tractor

1шт.

14

PIN, pivot, Not serviced separately, Order 443644C91 package, 4568 tractor

1шт.

15

134895C91

DISC

DISC ASSY, front clutch driven, 4568 tractor

1шт.

15

134890C91

DISC

DISC ASSY, front clutch driven, 4586 tractor

1шт.

16

134896C91

DISC

DISC ASSY, rear clutch driven, 4568 tractor

1шт.

16

134891C91

DISC

DISC ASSY, rear clutch driven, 4586 tractor

1шт.

17

411972C1

DISC

PLATE, intermediate clutch, 4568 tractor

1шт.

17

67889C1

PLATE ASSY.

PLATE, intermediate clutch, 4586 tractor

1шт.

18

390334C2

SPRING

SPRING, anti-rattle, 4568 tractor

3шт.

19

697956R2

PIN,12.75mm OD x 35.81mm L

PIN, drive, 4568 tractor

6шт.

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW, 3/8 x 3/8 zn cup-pt set

12шт.

20

138960C1

GROMMET

GROMMET, lube hose

1шт.

21

138961C1

HOSE

HOSE, clutch brg. lube

1шт.

22

138962C1

FITTING

FITTING, lube adapter

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING, lube, 4586 tractors, Serial Range: -2815

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lube 90 deg, 4586 tractors, Start Serial: 2816

1шт.

23

9402862

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF

ELBOW, clutch brg lube

1шт.

24

9410278

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

ELBOW, 7/16-20 37 deg hyd

1шт.

25

69883C1

DISC

DISC ASSY, trans brake

1шт.
