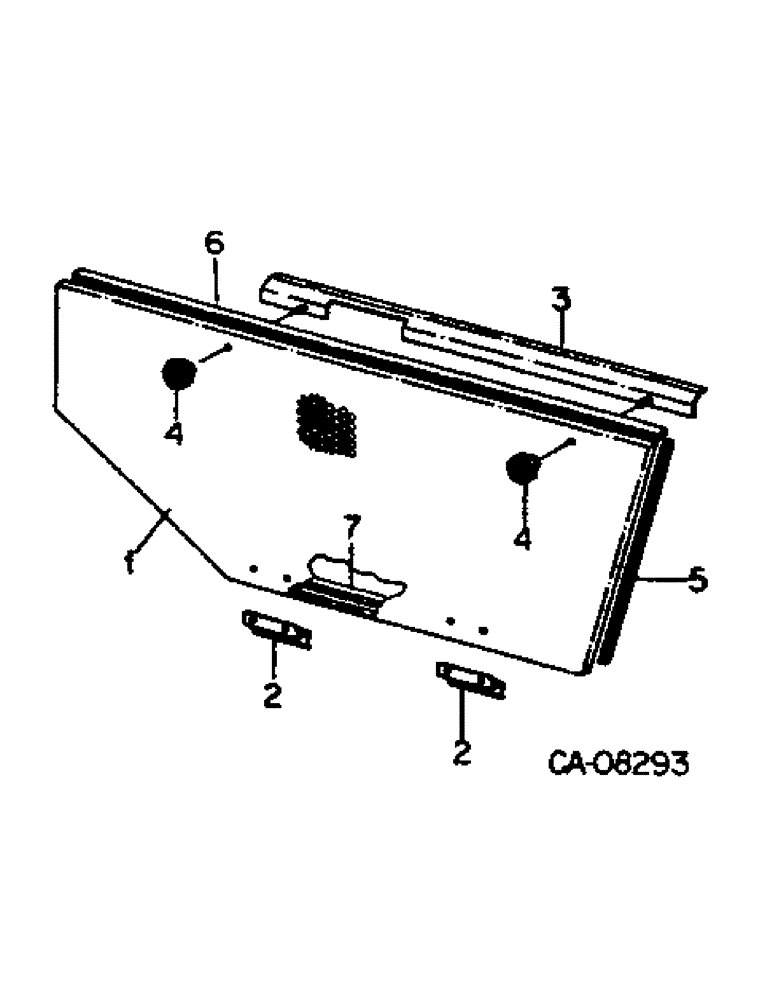

Запчасти Case IH 4586 (12-08) - POWER, ENGINE SIDE COVERS Power

1269090C91

KIT

PARTS ACCESSORY, engine side covers

1шт.

1

1268817C1

COVER

engine side, RH

1шт.

1

1268818C1

COVER

engine side, LH

1шт.

2

1268834C1

BRACKET

engine side cover

4шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

8шт.

446363

WASHER,5/16"

.375 x .875 x .064

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

120376

NUT,5/16"-18, G5

8шт.

3

1269088C1

BRACKET

ASSY, side covers upper

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120376

NUT,5/16"-18, G5

6шт.

4

391511R1

KNOB

side cover

4шт.

5

1268829C1

SEAL

side cover front

2шт.

6

1268830C1

SEAL

side cover top

2шт.

7

1268831C1

SEAL, side cover bottom and rear

2шт.
