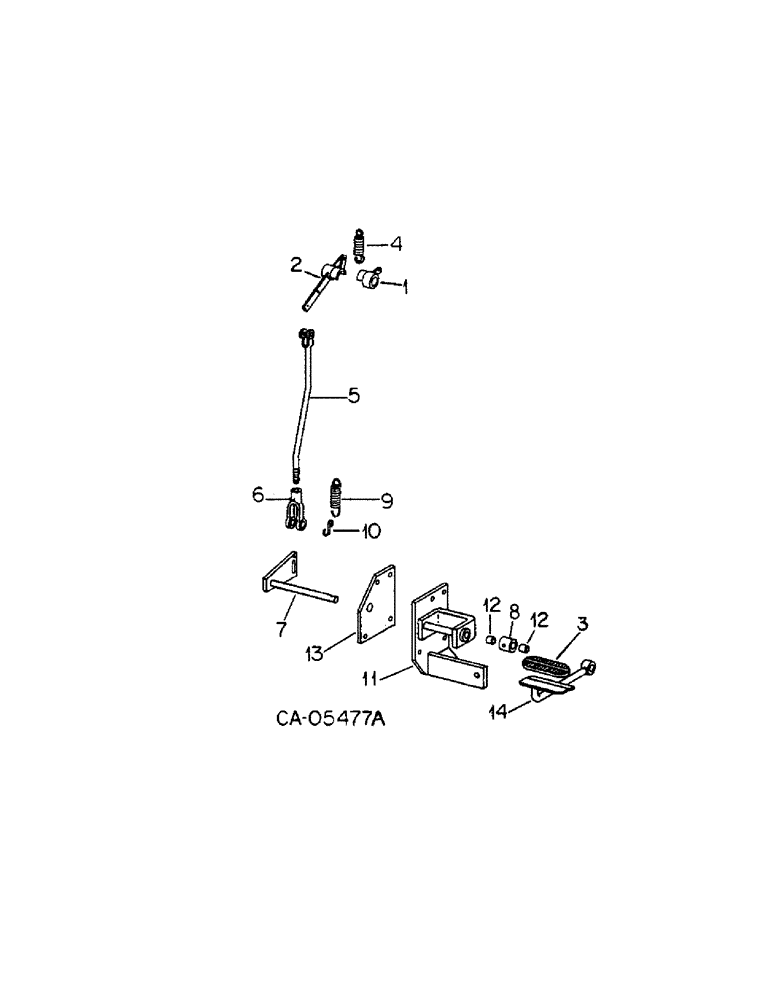

Запчасти Case IH 4586 (12-06) - POWER, DECELERATOR, 4586 TRACTOR Power

1

127549C2

HUB ASSY.

HUB ASSY, control shaft

1шт.

77730C1

SET SCREW

SCREW, 1/4-20 x .375 w/nylon patch

1шт.

The rubber bushing that bolts to the six holes in the bracket Ref # 1 is P/N 672022C91. It is in the V-800 parts book.

1шт.

2

127552C3

HUB ASSY.

HUB ASSY, decelerator

1шт.

3

109656C1

BRAKE PAD

PAD, decelerator decal

1шт.

4

110495C1

VALVE SPRING

SPRING, decelerator, Replaces 127584C1

1шт.

5

127582C1

ROD

ASSY, decelerator control

1шт.

6

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, adj rod end

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-28 hex jam

1шт.

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, 1/4 clevis

2шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 cot

2шт.

7

127563C2

SHAFT

ASSY, decelerator pedal

1шт.

8

77731C1

COLLAR

.50 set

2шт.

77730C1

SET SCREW

SCREW, 1/4-20 x .375 w/nylon patch

2шт.

9

385353R1

VALVE SPRING

SPRING, decelerator pedal

1шт.

10

NOT USED THIS APPLICATION

1шт.

11

127573C2

SUPPORT

ASSY, decelerator

1шт.

12

127585C1

BUSHING

decelerator pedal

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1/2 hex-hd cap

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

13

127577C1

BAR

decelerator support bearing

1шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

5/16-18 x 5/8 hex-hd

4шт.

14

129231C1

PEDAL

ASSY, decelerator

1шт.

77730C1

SET SCREW

SCREW, 1/4-20 x .375 w/nylon patch

2шт.
