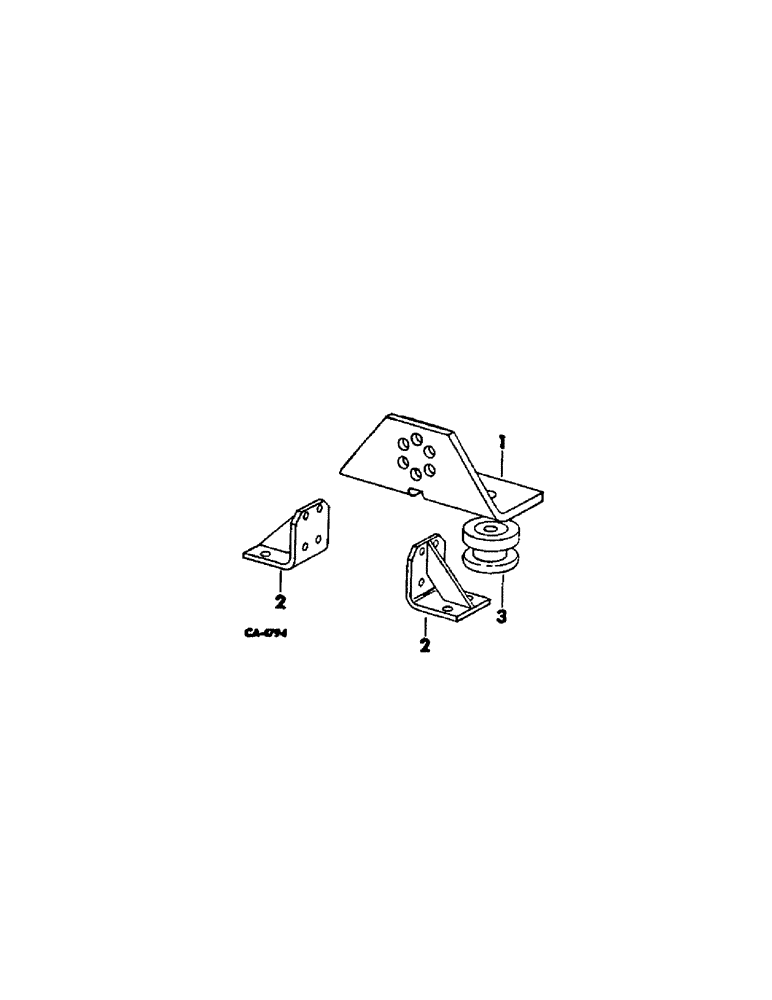

Запчасти Case IH 4586 (12-06[A]) - POWER, ENGINE MOUNTINGS Power

1

114283C1

SUPPORT

ASSY, engine front

1шт.

24601R1

SCREW,12 Pt Flg, 9/16"-12 x 3"

9/16-12 x 3 12 pt flange type 8

6шт.

673066C1

WASHER

.594 x .94 x .12 hardened

6шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

280954

NUT,3/4"-10, G5

2шт.

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

13/16 x 1-1/2 x .134 znd

4шт.

2

109657C1

ANGLE

ASSY, engine rear

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 znd hex-hd cap

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

3

753997C93

INSULATOR

rubber

4шт.

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

5/8 x 4 type 5

4шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 x 1-15/16 x .074 znd

4шт.

119005C1

WASHER

21/32 x 3-1/2 x .188

4шт.

119006C1

WASHER

21/32 x 2-1/2

4шт.

9413969

NUT,5/8"-11, GB

5/8-11 CD prevailing torque hex lock

4шт.

124566C1

HOSE

breather hose

1шт.

995222R1

CLAMP

no. 36 hose

1шт.
