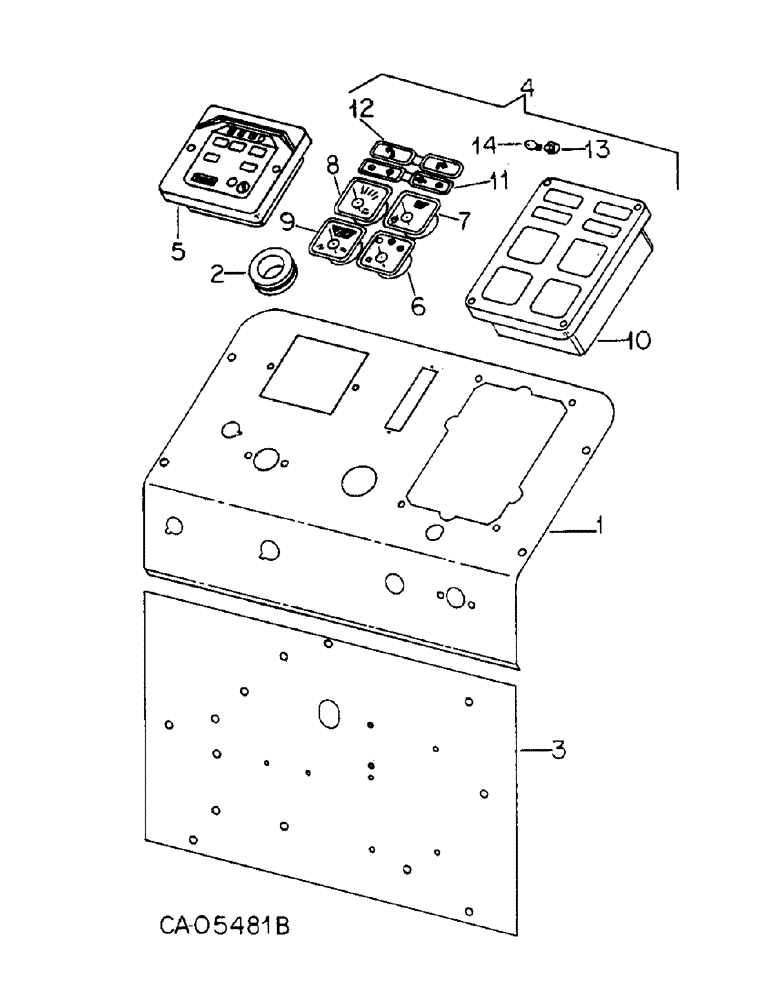

Запчасти Case IH 4586 (11-02) - INSTRUMENTS, PANEL AND GAUGE, 4586 TRACTOR Instruments

1

121884C1

PANEL

ASSY, instrument, Serial Range: -1500

1шт.

1

130975C1

PANEL

ASSY, instrument, Start Serial: 1501

1шт.

28059R1

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW, 1/4 x 3/4 phn h/whd tap

4шт.

2

69850C1

GROMMET

steering column

1шт.

3

121880C2

LARGE PLATE

PLATE, dash access, panel, Serial Range: -1500

1шт.

3

131317C1

LARGE PLATE

PLATE, dash access, Start Serial: 1501

1шт.

28059R1

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW, 1/4 x 3/4 phc w/whd tap

4шт.

4

121603C92

CLUSTER, INSTR.

CLUSTER ASSY, instrument

1шт.

103957C1

NUT

J, shape spring

4шт.

27076R1

SCREW,Cross Oval Hd, #10 x 1"

1-0-16 x 1 oval hd-rec-phd type AB

4шт.

5

131233C1

GAUGE

ASSY, digital tachometer, Renewed speedometer and hourmeter, Serial Range: -1500

1шт.

5

1265585C1

GAUGE

GAGE, digital data, Replaces 1252478C1, also order product graphic 1265525C1, Start Serial: 1501

1шт.

5

1935076C1

REMAN-INSTR CLUSTER

4586 INTERNATIONAL 4WD DIESEL TRACTOR, GAGE, digital data, Start Serial: 1501 (1/76-12/81), Reman For New P/N 1265585C1

1шт.

5

1935077C1

CORE-CLUSTER, INSTR

Return Number

1шт.

131143C1

DECAL

PRODUCT GRAPHIC, digital data gage, Use with Newport lab and Stewart Warner gage

1шт.

1265525C1

DECAL

PRODUCT GRAPHIC, digital data base, Use with Dickey John gage

1шт.

131116C1

REGULATOR

gear ratio plug-in

1шт.

103957C1

NUT

J, shape spring

2шт.

27076R1

SCREW,Cross Oval Hd, #10 x 1"

10-16 x 1 oval hd-rec-phb type AB

4шт.

6

121604C1

ELECTRICAL GAUGE

GAUGE, fuel

1шт.

7

121605C2

ELECTRICAL GAUGE

GAUGE, temperature

1шт.

8

121606C1

ELECTRICAL GAUGE

GAUGE, oil pressure

1шт.

9

121607C1

METER

VOLTMETER

1шт.

10

121608C1

GASKET

BEZEL AND GASKET ASSY

1шт.

refer #10 (P/N 121608C1) -> box not included. Must order cluster assy #107336C92

1шт.

11

130811C1

LENS, warning lights

1шт.

12

121610C1

LENS

turn signal

1шт.

13

121611C1

SOCKET

ASSY, instrument

8шт.

14

20627R1

BULB,C2F, #194, 14V

lamp #194

8шт.
