Запчасти Case IH 4586 (04-11) - BRAKES, HAND BRAKE CALIPER, 4586 TRACTOS WITH SERIAL NO. 2110 AND ABOVE (5.1) - BRAKES

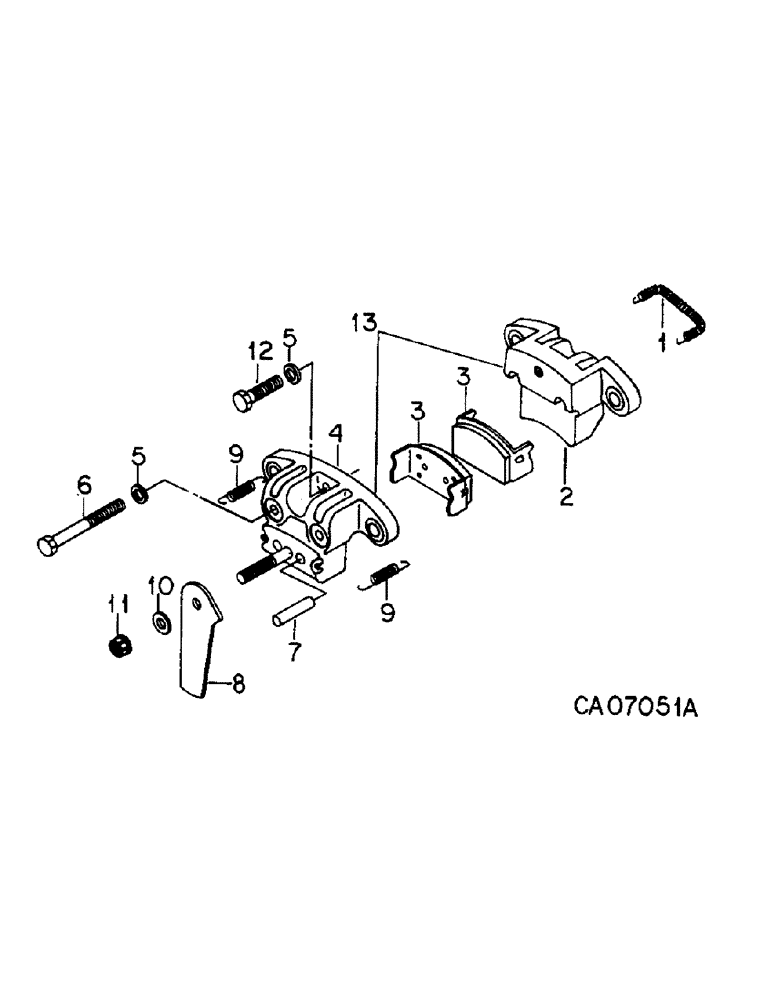

Схема запчастей Case IH 4586 - (04-11) - BRAKES, HAND BRAKE CALIPER, 4586 TRACTOS WITH SERIAL NO. 2110 AND ABOVE (5.1) - BRAKES
2
6
3
5
7
12
9
9
13
5
1
4
11
8
10
3

Артикул

Название

Примечание

Количество

146909C91

CALIPER

ASSY, hand brake, Replaces 69896C95

1шт.

1

70425C1

SPRING

tension

1шт.

2

CALIPER, carrier side, Furnish caliper housing assy 1250299C1

1шт.

3

114227C1

BRAKE

HOLDER ASSY, park brake pad

2шт.

4

CALIPER, cam side, Furnish caliper housing assy 1250299C1

1шт.

5

147174C1

WASHER

3шт.

6

191249

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

SCREW, 3/8-16 x 3.75 hex cap

2шт.

7

147170C1

PIN

push

25шт.

8

147169C1

CAM

1шт.

9

147171C1

SPRING

extension

2шт.

10

147168C1

WASHER

1шт.

11

147167C1

NUT

1/2-20 castle

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

12

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

13

1250299C1

BRAKE ASSY.

HOUSING ASSY, hand brake caliper

1шт.

Выбрано товаров: 15
