Запчасти Case IH 4586 (04-09) - BRAKES, MASTER BRAKE CYLINDER (5.1) - BRAKES

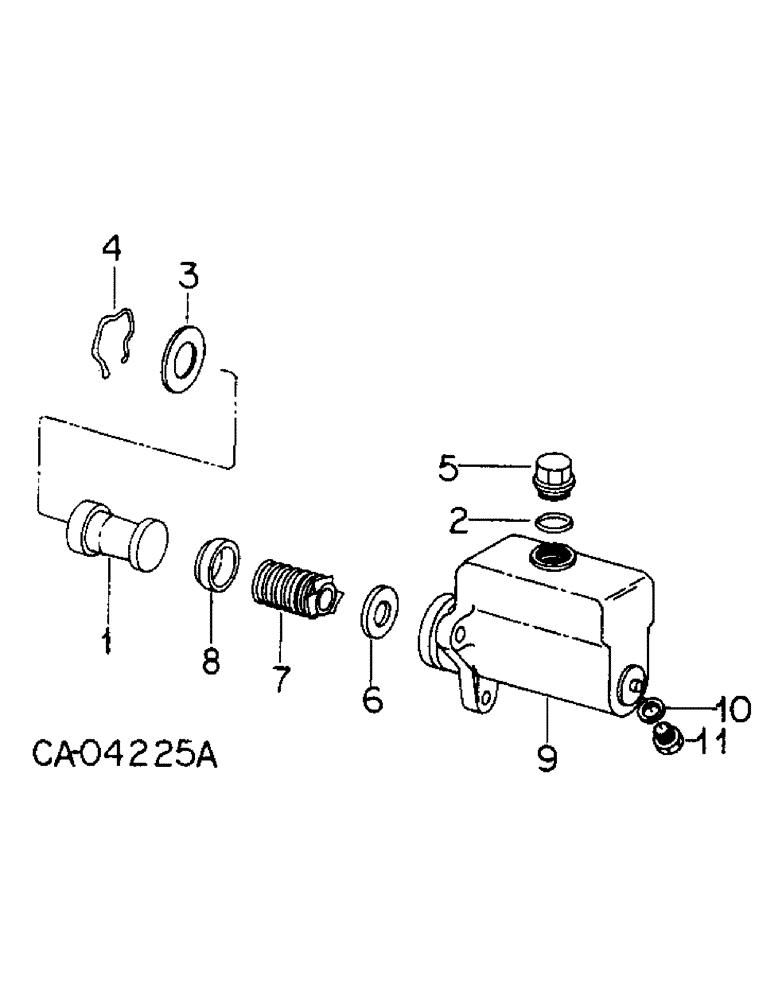

Схема запчастей Case IH 4586 - (04-09) - BRAKES, MASTER BRAKE CYLINDER (5.1) - BRAKES
3
8
10
9
5
6
1
4
7
2
11

Артикул

Название

Примечание

Количество

70135C91

MASTER CYLINDER

CYLINDER ASSY, master

1шт.

1

PISTON ASSY, master cylinder, Not serviced separately, Order kit 121401HB

1шт.

2

53385H

CYLINDER HEAD GASKET

filler plug

1шт.

3

52603H

LARGE PLATE

STOP, piston

1шт.

4

52602H

ELECTRICAL WIRE

RING, piston stop lockwire

1шт.

5

929399C1

CAP

ASSY, filler

1шт.

6

SEAT, valve, Not serviced separately, Order kit 52605HBY

1шт.

7

478918C1

SPRING

W/RETAINER, valve return

1шт.

8

CUP, primary, Not serviced separately, Order kit 121401HB

1шт.

9

HOUSING, Not serviced separately, Order 70135C91 master cylinder assy

1шт.

10

49034H

GASKET

copper

1шт.

11

49035H

PLUG

compensator head

1шт.

121401HB

PACKAGE

KIT, master cylinder repair, Consists of

1шт.

NSS

NOT SOLD SEPARAT

BOOT

1шт.

NSS

NOT SOLD SEPARAT

CUP

1шт.

NSS

NOT SOLD SEPARAT

PISTON ASSY

1шт.

52602H

ELECTRICAL WIRE

RING

1шт.

70288C1

SEAT

VALVE SEAT

1шт.

52605HBY

KIT

check valve assy, w/seat, Consists of

1шт.

NSS

NOT SOLD SEPARAT

CHECK VALVE

1шт.

NSS

NOT SOLD SEPARAT

VALVE SEAT

1шт.

Выбрано товаров: 21
